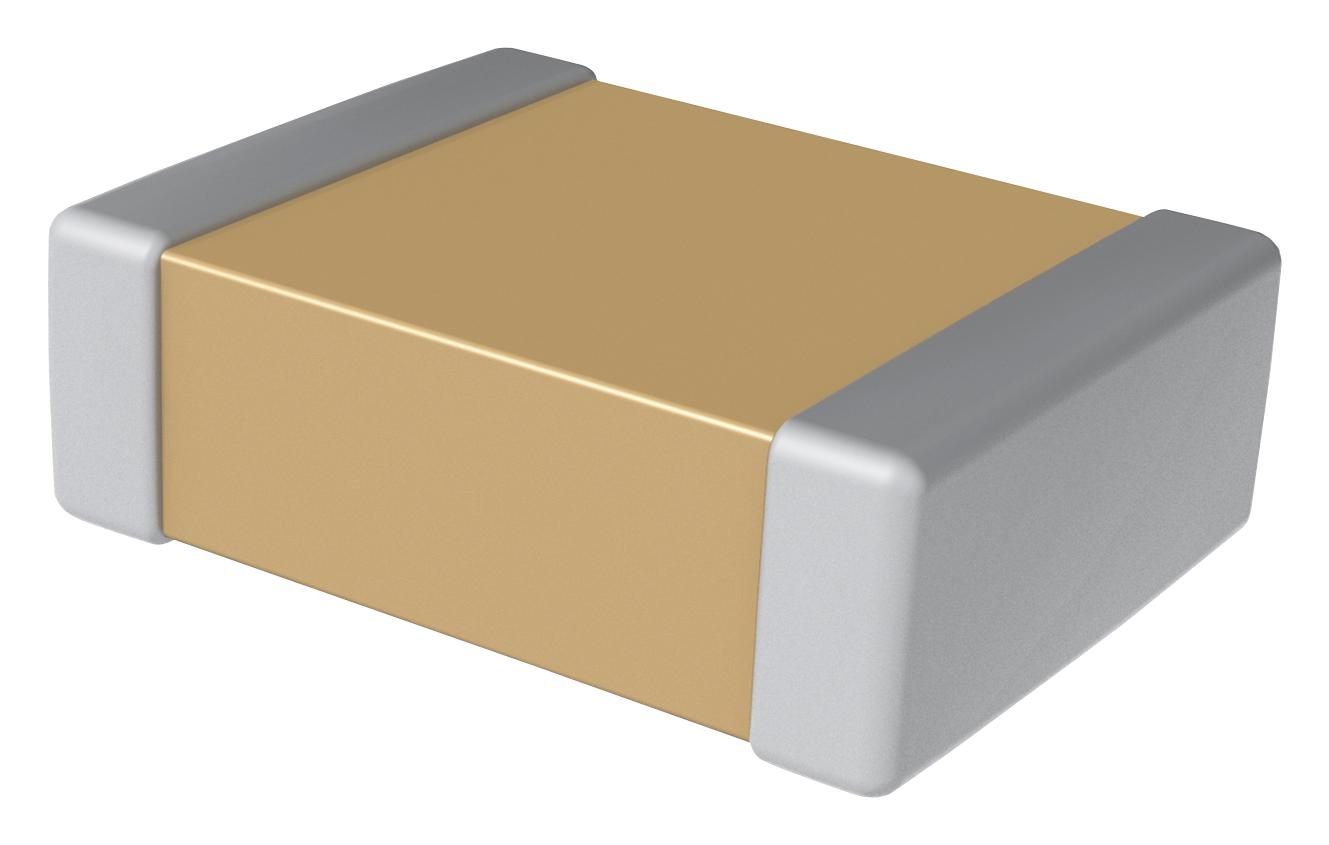

KEMET C0603X683K5RACTU X7R Ceramic Capacitor
The KEMET C0603X683K5RACTU is a multilayer ceramic capacitor (MLCC) designed for surface mount technology (SMT) applications. Featuring a flexible termination, this capacitor offers improved mechanical reliability and stress relief. Its X7R dielectric provides excellent capacitance stability over temperature, making it suitable for decoupling, filtering, and timing circuits in consumer electronics, automotive, and industrial equipment. The capacitor's compact 0603 size minimizes board space requirements while maintaining high performance.
KEMET C0603X683K5RACTU X7R Ceramic Capacitor Specifications:
- Series: SMD Comm X7R Flex
- Style: SMD Chip
- Description: SMD, MLCC, FT-CAP, Temperature Stable
- Features: FT-CAP, Temperature Stable
- Termination: Flexible Termination
- Marking: No
- AEC-Q200: No
- Component Weight: 7300 ug
- Shelf Life: 78 Weeks
- MSL: 1
- Capacitance: 0.068 uF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 50 VDC
- Dielectric Withstanding Voltage: 125 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: X7R
- Capacitance Change with Reference to +25°C and 0 VDC: 15%, 1kHz 1.0Vrms
- Dissipation Factor: 2.5% 1 kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 7.3529 GOhms
- Chip Size L: 1.6mm +/-0.17mm
- Chip Size W: 0.8mm +/-0.15mm
- Chip Size T: 0.8mm +/-0.15mm
- Chip Size S: 0.58mm MIN
- Chip Size B: 0.45mm +/-0.15mm
- Packaging: T&R, 180mm, Paper Tape
- Packaging Quantity: 4000
