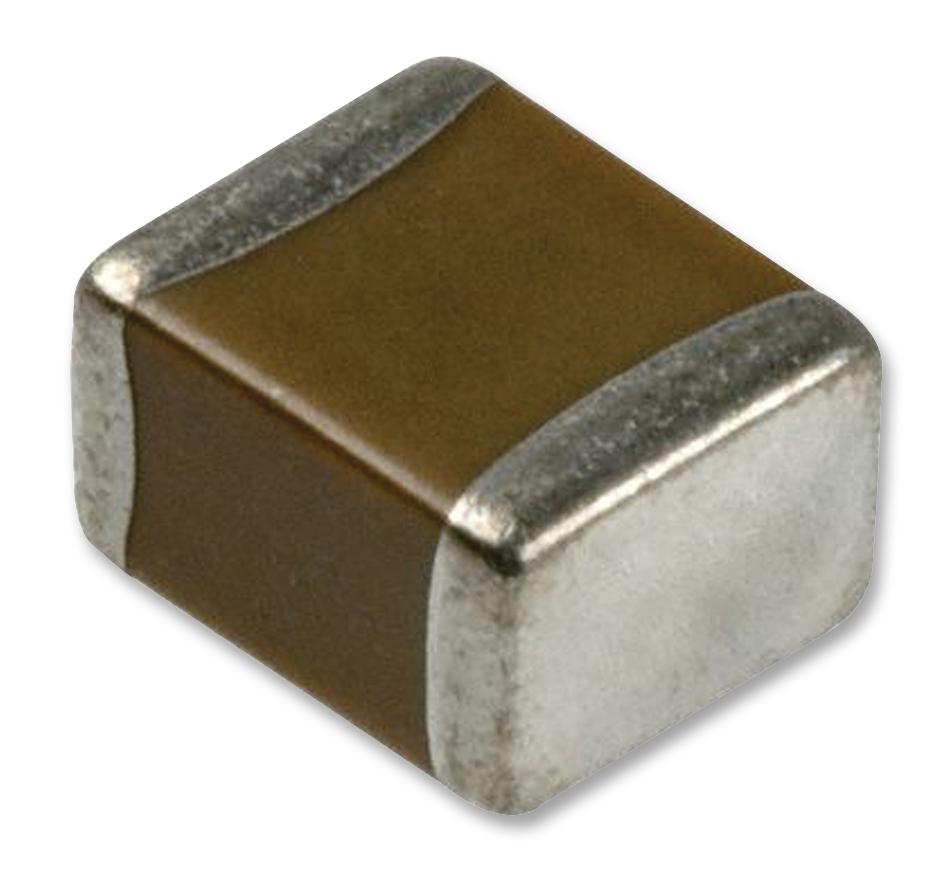

KEMET C1206H102JDGACTU High Voltage Ceramic Capacitor
This high voltage surface mount multilayer ceramic capacitor features a COG dielectric suitable for applications up to 3000 VDC, including power supplies, lighting, and automotive circuits. Designed with a stable temperature range from -55°C to +125°C, it exhibits negligible capacitance change over time and temperature, low ESR at high frequencies, and RoHS compliance. Available in various case sizes such as 0805, 1206, and 1210, these capacitors ensure reliable performance in harsh environments, meeting automotive AEC-Q200 standards for automotive-grade units. With a robust construction, they are ideal for resonant circuits, snubbers, filters, and high-voltage coupling applications.
KEMET C1206H102JDGACTU High Voltage Ceramic Capacitor Specifications:
- Capacitance range: 10 pF to 0.039 μF
- Voltage ratings: 500 V, 630 V, 1 KV, 1.5 KV, 2 KV, 2.5 KV, 3 KV
- Operating temperature: -55°C to +125°C
- Capacitance change: +30 ppm/°C from -55°C to +125°C
- Dielectric: COG (Class 1), stable and temperature compensating
- ESR: Low at high frequencies
- RoHS compliant
- Case sizes: 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225
- Capacitance Tolerance: +0.10 pF, +0.25 pF, +0.5 pF, ±1%, ±2%, ±5%, ±10%, ±20%
- Packaging: Tape & reel in accordance with EIA standards
- Construction: Nickel barrier layer, Cu base metal, inner Ni electrodes, dielectric of ceramic material
- Suitable for high-frequency snubbers, filters, resonant and coupling circuits
Buy the KEMET Series HV-Capacitors 500V-3KV: C1206H102JDGACTU
Order KEMET high voltage ceramic capacitors online today to ensure precise performance in demanding power and high-frequency circuits. These reliable, RoHS-compliant components are engineered for durability and stability across a wide temperature range, making them ideal for power supply, automotive, telecommunication, and industrial applications. With various case sizes and capacitance tolerances, you can select the perfect model to meet your project's voltage and space requirements. Secure fast delivery and excellent customer support when you purchase through our online store.
Buy KEMET C1206H102JDGACTU now and experience unmatched reliability and performance in high-voltage applications.
Frequently Asked Questions
Where can I buy KEMET C1206H102JDGACTU?
You can click on the BUY or RFQ button to purchase C1206H102JDGACTU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C1206H102JDGACTU?
You can download the C1206H102JDGACTU datasheet or visit the KEMET website for support.
Who is the manufacturer of C1206H102JDGACTU?
KEMET
