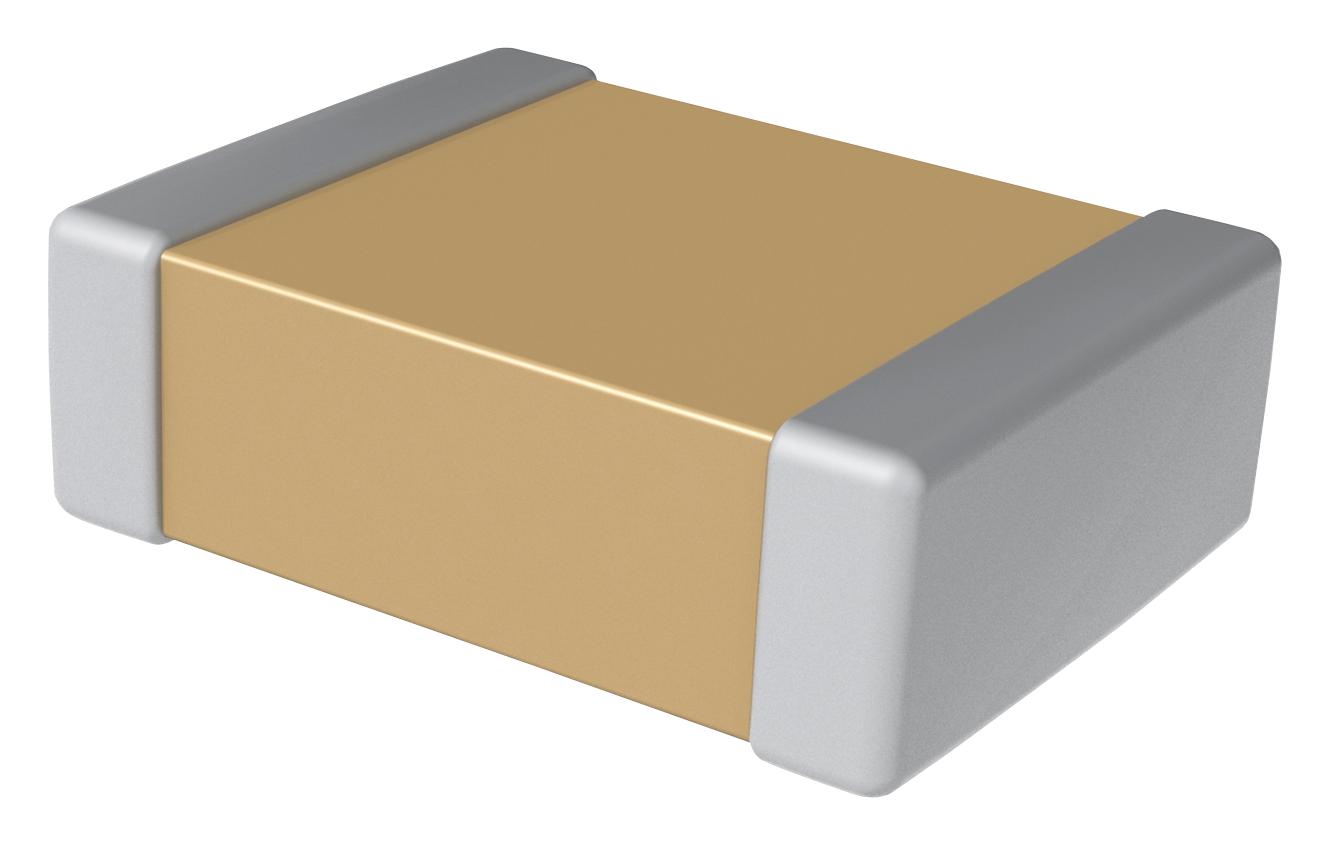

KEMET C1206X683KCRACTU X7R Ceramic Capacitor
The KEMET C1206X683KCRACTU is a multilayer ceramic capacitor (MLCC) designed for demanding applications requiring high voltage and temperature stability. Featuring a 0.068uF capacitance and a 500VDC rating, this X7R capacitor is ideal for power supplies, DC-DC converters, and other circuits where reliable performance over a wide temperature range is critical. The flexible termination enhances mechanical reliability and simplifies assembly. Its compact 1206 size makes it suitable for space-constrained designs.
KEMET C1206X683KCRACTU X7R Ceramic Capacitor Specifications:
- Series: SMD Comm X7R HV Flex
- Style: SMD Chip
- Description: SMD, MLCC, FT-CAP, Temperature Stable
- Features: FT-CAP, Temperature Stable
- Termination: Flexible Termination
- Marking: No
- AEC-Q200: No
- Component Weight: 55 mg
- Shelf Life: 78 Weeks
- MSL: 1
- Chip Size: 1206
- L: 3.3mm +/-0.4mm
- W: 1.6mm +/-0.35mm
- T: 1.7mm +/-0.20mm
- B: 0.6mm +/-0.25mm
- Capacitance: 0.068 uF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 500 VDC
- Dielectric Withstanding Voltage: 750 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: X7R
- Capacitance Change with Reference to +25°C and 0 VDC: 15%, 1kHz 1.0Vrms
- Applied(TCC): 15%, 1kHz 1.0Vrms
- Dissipation Factor: 2.5% 1 kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 1.4706 GOhms
- Packaging: T&R, 180mm, Plastic Tape
- Packaging Quantity: 2000
