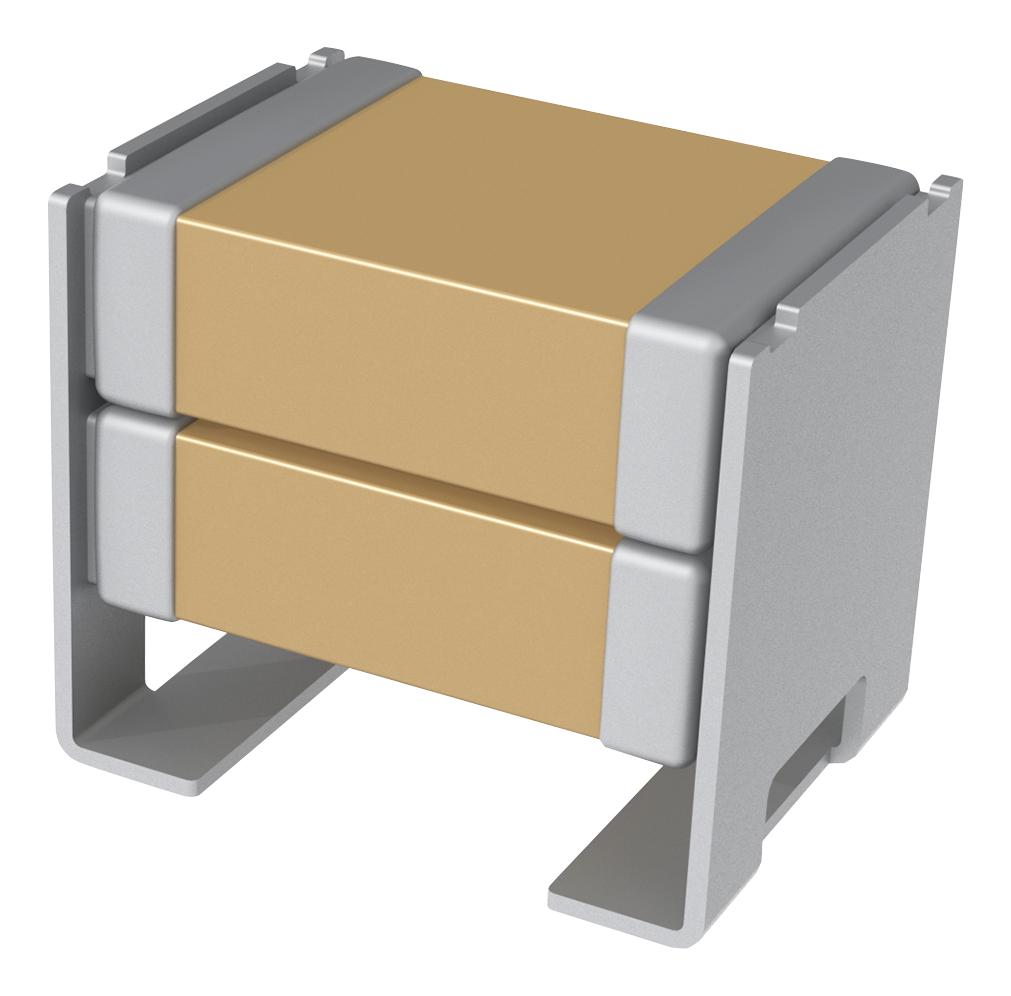

KEMET C2220C105MCR2C7186 High Voltage Ceramic Capacitor
The KPS series surface mount multilayer ceramic chip capacitor features proprietary lead-frame technology, enabling vertical stacking of one or two MLCCs into a compact package. This design enhances mechanical and thermal stress resistance and doubles capacitance within the same or smaller footprint. It offers up to 10mm of board flex, reduces noise, and has low ESR and ESL. Non-polar, environmentally friendly, and Pb-Free reflow capable, it suits high-voltage, temperature-stable applications requiring reliable surface-mount components.
KEMET C2220C105MCR2C7186 High Voltage Ceramic Capacitor Specifications:
- Capacitance: 1 uF
- Capacitance Tolerance: 20%
- Voltage DC: 500 VDC
- Dielectric: X7R
- Temperature Range: -55/+125°C
- Size: 2220-2
- Dimensions: Length 6mm ±0.5mm, Width 5mm ±0.5mm, Thickness 5mm ±0.5mm
- Termination: Tin
- Dissipation Factor: 2.5% at 1 kHz 1.0Vrms
- Insulation Resistance: 100 MOhms
- Shelf Life: 78 Weeks
- Packaging: T&R, 180mm, Plastic Tape
- Packaging Quantity: 200 units
- RoHS: Yes
- Approvals: Not AEC-Q200
- Weight: 800 mg
Buy the KEMET C2220C105MCR2C7186 – Reliable High-Voltage Ceramic Capacitor for Industrial Applications
Purchase the KEMET C2220C105MCR2C7186 ceramic capacitor online today. Engineered for reliability, it offers 1uF capacitance at 500VDC, with stable X7R dielectric. Compact and RoHS compliant, it features lead-frame technology for enhanced mechanical and thermal stress resistance. Ideal for high-voltage applications requiring low ESR and ESL, its stacking design doubles capacitance while maintaining a small footprint. Easy to reflow with Pb-Free profiles, it’s suitable for demanding industrial electronics, ensuring a secure supply chain and fast delivery for your manufacturing needs.
Get KEMET C2220C105MCR2C7186 today—built for high voltage stability and durable industrial performance.
Frequently Asked Questions
Where can I buy KEMET C2220C105MCR2C7186?
You can click on the BUY or RFQ button to purchase C2220C105MCR2C7186 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C2220C105MCR2C7186?
You can download the C2220C105MCR2C7186 datasheet or visit the KEMET website for support.
Who is the manufacturer of C2220C105MCR2C7186?
KEMET
