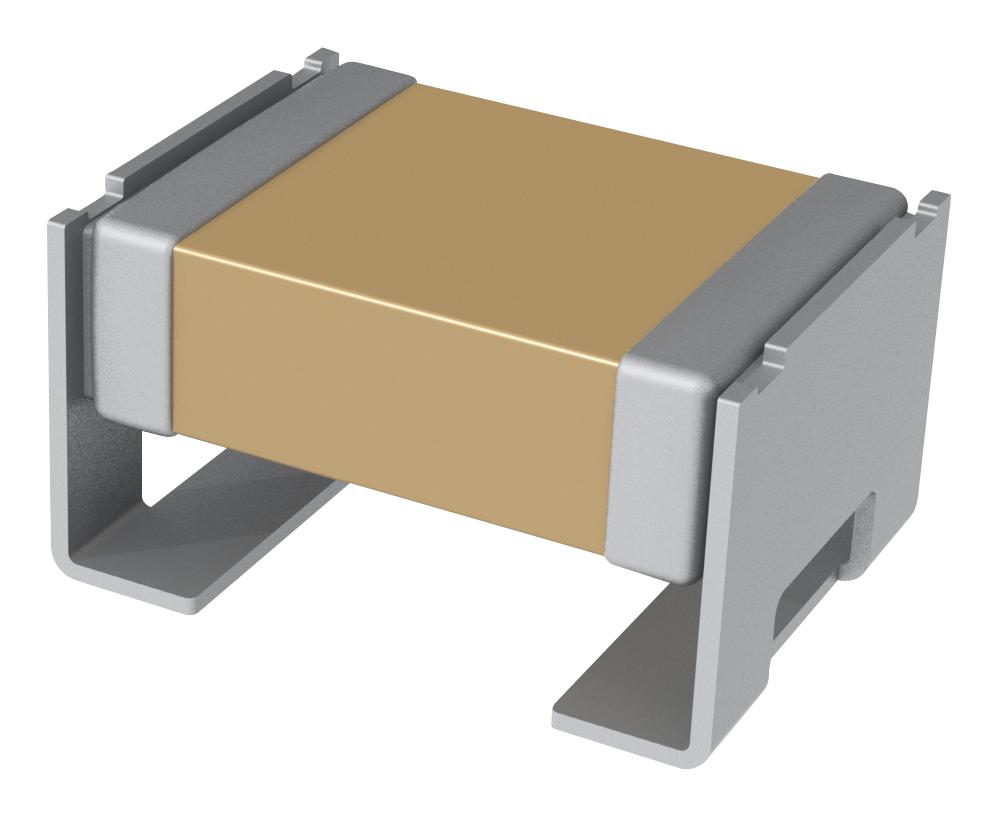

KEMET C2220C226K3R1CAUTO Automotive Ceramic Capacitor
This automotive-grade ceramic capacitor features a 22uF capacitance with a 10% tolerance, rated for 25 VDC. It has a compact 2220 chip size with RoHS compliance, high insulation resistance, and stable performance across a wide temperature range of -55°C to +125°C. Designed for automated surface-mount assembly, it offers reliable operation in demanding automotive and industrial applications, with robust dielectric characteristics and high dielectric withstand voltage. The capacitor's tin-terminals ensure durable and corrosion-resistant connections, making it suitable for high-reliability electronic circuits requiring stable capacitance and thermal endurance.
KEMET C2220C226K3R1CAUTO Automotive Ceramic Capacitor Specifications:
- Capacitance: 22uF
- Capacitance Tolerance: 10%
- Voltage DC: 25 VDC
- Dielectric: X7R
- Temperature Range: -55°C to +125°C
- Dimensions: L 6mm +/-0.5mm, W 5mm +/-0.5mm, T 3.5mm +/-0.30mm, B 1.6mm +/-0.3mm
- Dissipation Factor: 3.5% at 120 Hz 0.5Vrms
- Insulation Resistance: 22.7 MOhms
- Measurement Condition: 120 Hz 0.5Vrms
- Packaging: T&R, 180mm, Plastic Tape
- Packaging Quantity: 300
- Termination: Tin
- Qualification: AEC-Q200
- RoHS Compliant: Yes
- Dielectric Withstanding Voltage: 625VDC
Buy the KEMET C2220C226K3R1CAUTO – Reliable Automotive Ceramic Capacitor for Industrial Applications
Purchase the KEMET C2220C226K3R1CAUTO online today and experience top-tier reliability for automotive, industrial, and high-performance electronic circuits. This ceramic capacitor features a 22uF capacitance, 25VDC rating, and X7R dielectric stability over a wide temperature range of -55°C to +125°C. Its compact 2220 size with RoHS compliance makes it ideal for automated surface-mount assembly, providing excellent insulation resistance and dielectric withstand voltage. Trust this capacitor for your demanding applications requiring high reliability, thermal endurance, and robust electrical performance in a compact package.
Order your KEMET C2220C226K3R1CAUTO today and ensure your automotive and industrial circuits benefit from high-quality ceramic performance.
Frequently Asked Questions
Where can I buy KEMET C2220C226K3R1CAUTO?
You can click on the BUY or RFQ button to purchase C2220C226K3R1CAUTO from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C2220C226K3R1CAUTO?
You can download the C2220C226K3R1CAUTO datasheet or visit the KEMET website for support.
Who is the manufacturer of C2220C226K3R1CAUTO?
KEMET
