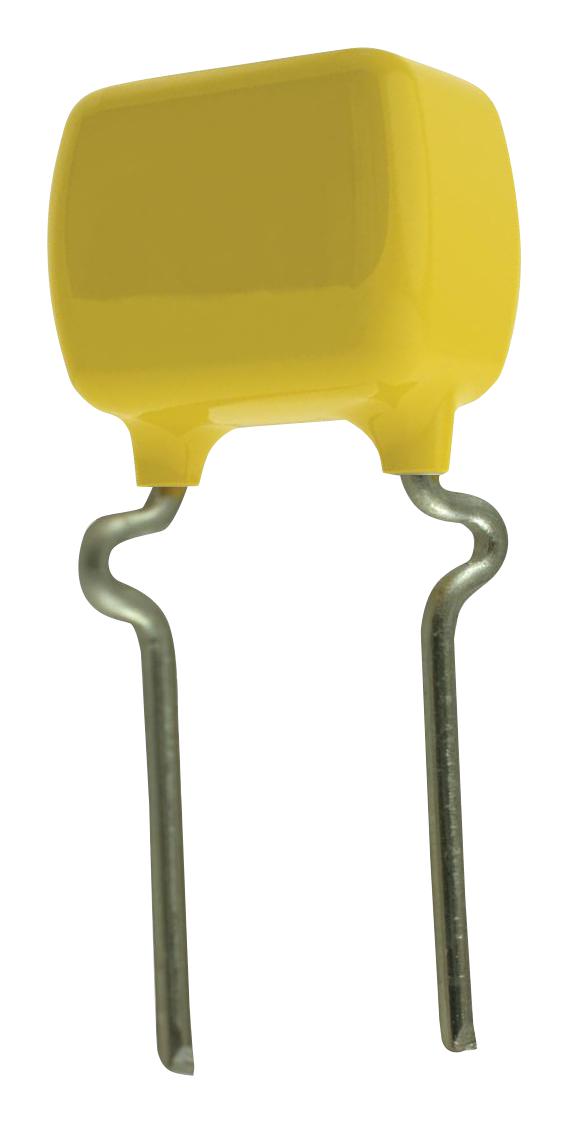

KEMET C316C101J5G5TA7303 100pF Ceramic Capacitor
The KEMET GoldMax 300 Comm C0G ceramic capacitor, part number C316C101J5G5TA7303, is a multilayer device designed for commercial applications requiring high stability and low losses. It boasts a 100 pF capacitance, a 5% tolerance, and a 50 VDC rating, making it suitable for a wide range of electronic circuits. The C0G dielectric ensures excellent temperature stability and minimal capacitance variation over temperature. Typical applications include decoupling, filtering, and timing circuits in consumer electronics, industrial equipment, and automotive systems. Its radial lead configuration allows for easy mounting on printed circuit boards.
KEMET C316C101J5G5TA7303 100pF Ceramic Capacitor Specifications:
- Series: GoldMax 300 Comm C0G
- Style: Radial
- Description: GoldMax, Commercial Standard
- RoHS: Yes
- Termination: Tin
- AEC-Q200: No
- Halogen Free: Yes
- Capacitance: 100 pF
- Measurement Condition: 1 MHz 1.0Vrms
- Capacitance Tolerance: 5%
- Voltage DC: 50 VDC
- Dielectric Withstanding Voltage: 125 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 30PPM/C, 1MHz 1.0Vrms
- Dissipation Factor: 0.1% 1 MHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- L: 3.81mm MAX
- H: 5.84mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- H0: 18mm MIN
- F: 0.51mm +0.1/-0.025mm
- E: 5.08mm NOM
- Packaging: T&R, 305mm
- Packaging Quantity: 2500
Buy the C316C101J5G5TA7303 KEMET 100pF Ceramic Capacitor | myMectronic
Purchase the KEMET C316C101J5G5TA7303 with confidence and enjoy secure online ordering and fast shipping.
Buy Now
Frequently Asked Questions
Where can I buy KEMET C316C101J5G5TA7303?
You can click on the BUY or RFQ button to purchase C316C101J5G5TA7303 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C316C101J5G5TA7303?
You can download the C316C101J5G5TA7303 datasheet or visit the KEMET website for support.
Who is the manufacturer of C316C101J5G5TA7303?
KEMET
