KEMET C316C103K5R5TA Ceramic Capacitor

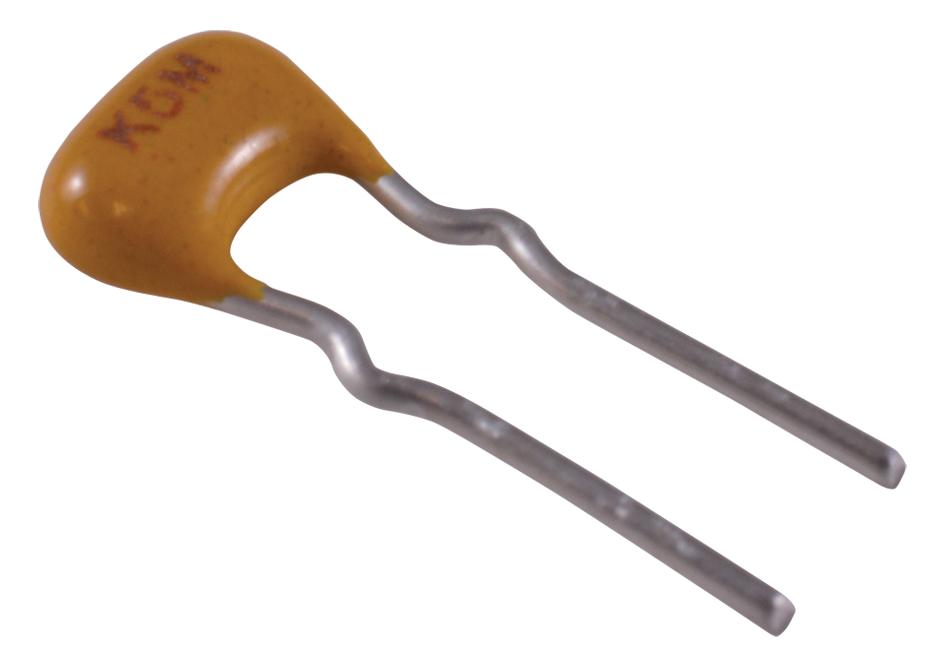

The KEMET GoldMax 300 Comm X7R C316C103K5R5TA is a multilayer ceramic capacitor designed for a wide range of commercial applications. Featuring a 0.01uF capacitance and X7R dielectric, this capacitor provides stable performance over a temperature range of -55°C to +125°C. Its radial style and tin termination make it suitable for various circuit designs. With a voltage rating of 50VDC and a dissipation factor of 2.5%, this capacitor ensures efficient and reliable power delivery in electronic devices. It is RoHS compliant and halogen-free, meeting environmental standards.
KEMET C316C103K5R5TA Ceramic Capacitor Specifications:
- Capacitance: 0.01 uF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 50 VDC
- Dielectric Withstanding Voltage: 125 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: X7R
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 0.15, 1kHz 1.0Vrms
- Dissipation Factor: 2.5% 1 kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- Dimensions L: 3.81mm MAX
- Dimensions H: 5.84mm MAX
- Dimensions T: 2.54mm MAX
- Dimensions S: 2.54mm +/-0.78mm
- Dimensions LL: 5.08mm MIN
- Dimensions F: 0.51mm +0.1/-0.025mm
- Dimensions E: 5.08mm NOM
- Packaging: Bulk, Bag
- Packaging Quantity: 500
- Series: GoldMax 300 Comm X7R
- Style: Radial
- Description: GoldMax, Commercial Standard
- RoHS: Yes
- Termination: Tin
- AEC-Q200: No
- Halogen Free: Yes
