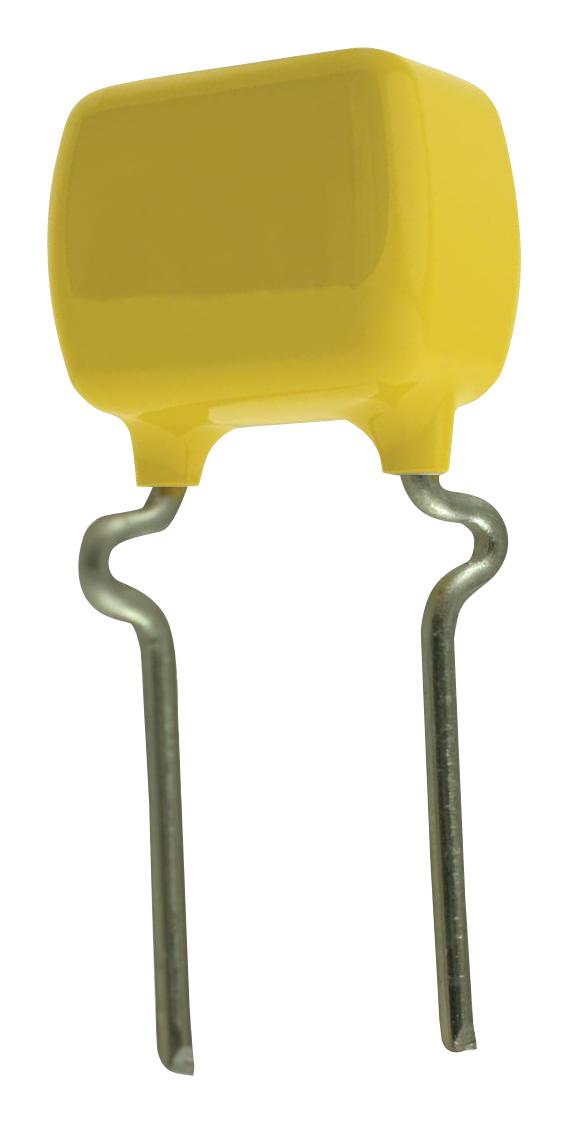

KEMET C316C104K5R5TA7303 Ceramic Capacitor
The GoldMax 300 Comm X7R capacitor is a high-quality ceramic component with a capacitance of 0.1 uF, rated at 50 VDC, suitable for various industrial and consumer electronics applications. It features X7R dielectric with a temperature range of -55°C to +125°C, ensuring stability across diverse operating conditions. The radial package includes tin termination and complies with RoHS standards, making it eco-friendly. Its compact dimensions and reliable performance make it ideal for circuit stabilization, filtering, and decoupling in commercial and industrial electronic systems.
KEMET C316C104K5R5TA7303 Ceramic Capacitor Specifications:
- Capacitance: 0.1 uF
- Voltage DC: 50 VDC
- Dielectric: X7R
- Temperature Range: -55°C to +125°C
- Capacitance Tolerance: 10%
- Dissipation Factor: 2.5% at 1 kHz 1.0Vrms
- Capacitance Change with reference to +25°C and 0 VDC: 0.15, 1kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 10 GΩ
- Dimensions: Length 3.81mm MAX, Height 5.84mm MAX, Thickness 2.54mm MAX, Lead Spacing 2.54mm ±0.78mm, Hole Diameter ≥18mm, F 0.51mm +0.1/-0.025mm, E 5.08mm NOM
- Packaging: T&R, 305mm, Quantity: 2500
- RoHS Compliant: Yes
- Termination: Tin
- Series: GoldMax 300 Comm X7R
- Style: Radial
- Halogen Free: Yes
Buy the KEMET C316C104K5R5TA7303 – Reliable Ceramic Capacitor for Industrial Applications
Explore the high-performance ceramic capacitor designed for industrial and commercial electronics by purchasing KEMET C316C104K5R5TA7303 online today. This 0.1 uF, 50 VDC capacitor features X7R dielectric, a temperature range of -55°C to +125°C, and tin termination, ensuring durability and stability in various environments. Its radial package allows easy installation and reliable operation. Order now to enhance circuit stability, filtering, and decoupling with a top-tier component that adheres to RoHS standards and meets the demanding requirements of modern electronic systems.
Buy KEMET C316C104K5R5TA7303 now and experience unmatched reliability and performance in your electronic projects, with stable capacitance and RoHS compliance.
Frequently Asked Questions
Where can I buy KEMET C316C104K5R5TA7303?
You can click on the BUY or RFQ button to purchase C316C104K5R5TA7303 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C316C104K5R5TA7303?
You can download the C316C104K5R5TA7303 datasheet or visit the KEMET website for support.
Who is the manufacturer of C316C104K5R5TA7303?
KEMET
