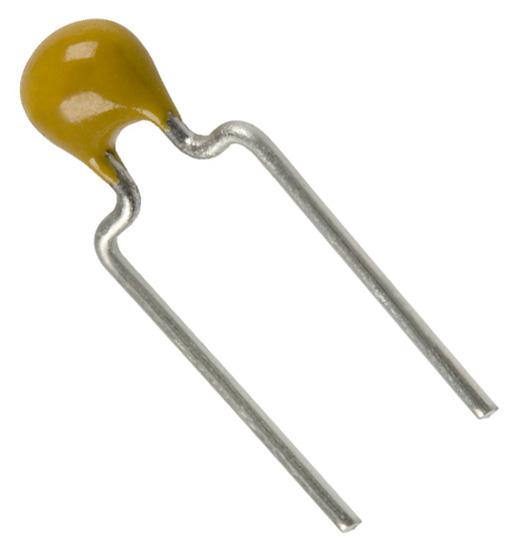

KEMET C322C104M5R5TA Ceramic Capacitor
The KEMET Goldmax series features radial leaded multilayer ceramic capacitors (MLCCs) with X7R dielectric material. These monolithic devices are constructed from laminated layers of specially formulated ceramic dielectric interleaved with metal electrodes, sintered at high temperatures to produce a compact and reliable capacitor. The capacitors are finished with conductive terminations at the ends for connections and are conformally coated for protection. They have a capacitance of 0.1 microfarads, rated for 50 VDC, with a temperature range of -55°C to +125°C, and tolerance of 20%. Ideal for various electronic applications requiring stable performance and reliable operation.
KEMET C322C104M5R5TA Ceramic Capacitor Specifications:
- Capacitance: 0.1 µF
- Voltage DC: 50 VDC
- Dielectric: X7R
- Temperature Range: -55°C to +125°C
- Capacitance Tolerance: 20%
- Dimensions: Length 5.08mm MAX, Height 6.6mm MAX, Thickness 3.18mm MAX, Lead Spacing 5.08mm +/-0.78mm, Minimum Lead Length 7mm, Footprint 0.51mm +0.1/-0.025mm
- Material: Ceramic dielectric with conductive tin terminations
- RoHS Compliant: Yes
- Packaging: Bulk, Bag, Quantity 500
- Halogen Free: Yes
- Construction: Laminated ceramic layers with metal electrodes, sintered, conformally coated for protection
- Dissipation Factor: 2.5% at 1 kHz 1.0Vrms
- Aging Rate: 3% Loss per Decade Hour
- Insulation Resistance: 10 GOhms
Buy the KEMET C322C104M5R5TA – Reliable Ceramic Capacitor for Industrial Applications
Order the KEMET ceramic capacitor C322C104M5R5TA online today to ensure your electronic designs benefit from high-quality, reliable performance. This 0.1 µF X7R dielectric capacitor is suitable for a wide range of industrial, automotive, and consumer electronics applications. With a voltage rating of 50 VDC and a temperature range from -55°C to +125°C, it delivers stable capacitance with 20% tolerance. The radial leaded design simplifies assembly, while conformal coating enhances durability. Secure your supply by purchasing this essential component online—trusted quality at your fingertips.
Buy KEMET C322C104M5R5TA now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy KEMET C322C104M5R5TA?
You can click on the BUY or RFQ button to purchase C322C104M5R5TA from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C322C104M5R5TA?
You can download the C322C104M5R5TA datasheet or visit the KEMET website for support.
Who is the manufacturer of C322C104M5R5TA?
KEMET
