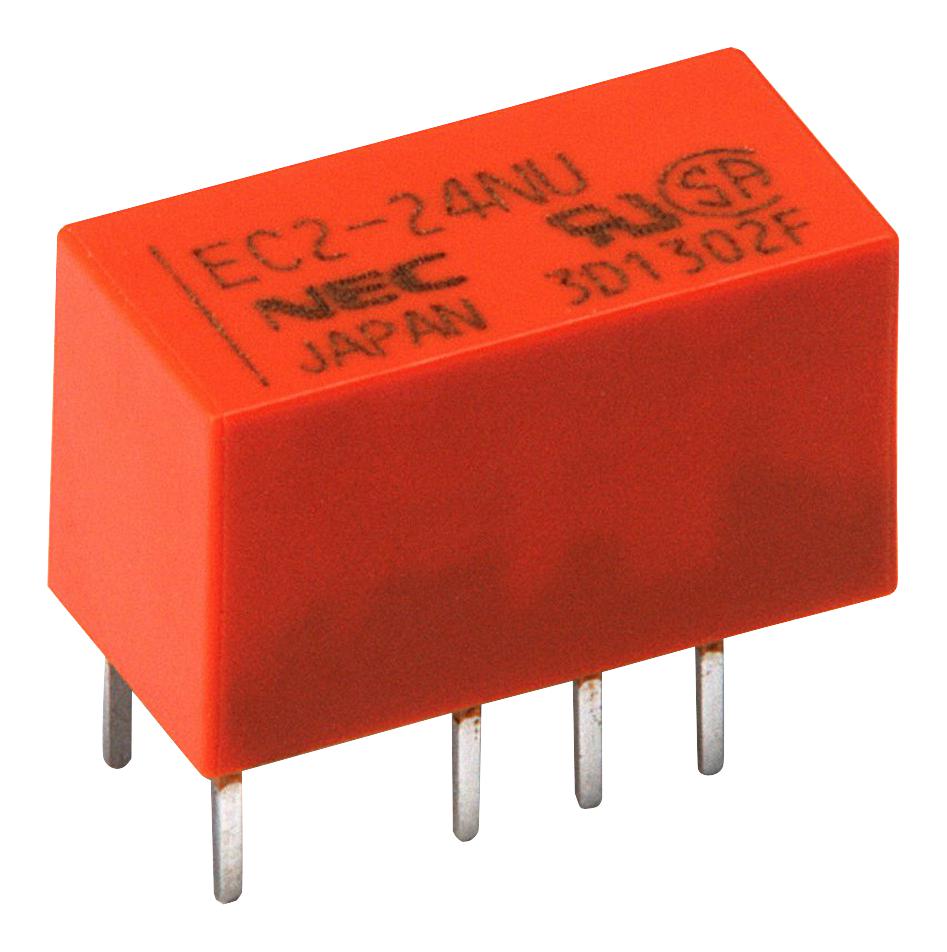

KEMET EC25SNU Signal Relay
The KEMET EC2 relay series offers miniature signal relays designed for high insulation and low power consumption. Featuring a compact, lightweight through-hole design with dimensions of up to 15mm in length, 7.5mm in width, and 8.4mm in height, these relays operate within a temperature range of -40°C to +85°C. Equipped with high breakdown voltage capabilities, they can withstand 1.5KVAC open contact voltage, making them suitable for diverse control applications. Their reliable switching power of 60W and switching voltage up to 250VAC ensures performance in critical electronic systems.
KEMET EC25SNU Signal Relay Specifications:
- Dimensions: Length 15mm max, Width 7.5mm max, Height 8.4mm max
- Temperature Range: -40°C to +85°C
- Coil Voltage: 5V DC
- Coil Resistance: 250 Ohms +/-10%
- Contact Form: 2 Form C (DPDT)
- Contact Material: Gold Alloy
- Switching Power: 60 W, 125 VA
- Switching Voltage DC: 220 V, AC: 250 VAC
- Switching Current: 2A
- Carry Current: 2A
- Contact Resistance: 75 mOhms
- Operation Time: Approximately 2ms
- Release Time: Approximately 1ms
- Insulation Resistance: 1 GOhms
- Withstanding Voltage: 1000 VAC (1 min), 1500 V Surge
- Sealing: RoHS Compliant, UL recognized, CSA certified
Buy the KEMET Series EC2 Signal Relay: EC25SNU
Purchase the KEMET EC25SNU signal relay online today and enjoy reliable high-voltage switching with compact, lightweight design. Ideal for control circuits requiring 60W power, 2A current capacity, and high insulation. This UL recognized and CSA certified relay operates over a wide temperature range from -40°C to +85°C, featuring quick operation in approximately 2 milliseconds. Its high breakdown voltage of 1.5KVAC ensures safe and secure switching performance. Order now for fast delivery and expert support.
Buy KEMET EC25SNU now and experience unmatched reliability and high-voltage switching performance in compact design.
Frequently Asked Questions
Where can I buy KEMET EC25SNU?
You can click on the BUY or RFQ button to purchase EC25SNU from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part EC25SNU?
You can download the EC25SNU datasheet or visit the KEMET website for support.
Who is the manufacturer of EC25SNU?
KEMET
