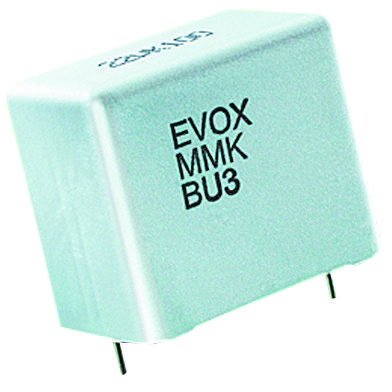

KEMET MMK5473K63J01L4 Metallized Polyester Capacitor
High-reliability metallized polyester film capacitor suitable for bypassing and signal coupling applications in various electronic circuits. Designed with RoHS compliance, this capacitor features tinned wire leads welded to contact metal layers, encapsulated in UL 94V-0 self-extinguishing material. Offers rated voltages up to 630 VDC and 250 VAC, with temperature ranges from -55°C to +100°C. It ensures long operational life exceeding 200,000 hours, with excellent dielectric stability, low loss, and minimal capacitance drift, suitable for demanding industrial and signal processing environments.
KEMET MMK5473K63J01L4 Metallized Polyester Capacitor Specifications:
- Capacitance: 47K63J01L4
- Rated voltage U,, VDC: 630
- Rated voltage U,, VAC: 250
- Capacitance tolerance: ±5%
- Category temperature range: -55°C to +100°C
- Voltage derating: above +85°C at 1.25%/°C
- Climatic category: IEC 60068-1 55/100/56
- Test voltage: 1.6 x rated voltage for 2 seconds
- Capacitance drift: max. 2% after 2 years storage
- Operational life: >200,000 hours
- Failure rate: less than 3 FIT at +40°C, half rated voltage U,,
- Leakage resistance: ≥15,000 MΩ at 50 VDC, ≥30,000 MΩ above 100 VDC, measured at +20°C
- Lead material: Tinned wire welded contacts
- Encapsulation: UL 94V-0 self-extinguishing low smoke resin
- Physical size: varies with capacitance and voltage, suitable for various circuit sizes
- Additional features: low loss, minimal capacitance drift, reliable dielectric stability, RoHS compliant
Buy the Buy MMK Metallized Polyester Capacitor Part Number 47K63J01L4 Online
Order the MMK metallized polyester film capacitor with capacitance 47K63J01L4 online today. Designed for high reliability in bypassing and signal coupling, with rated voltages up to 630 VDC and 250 VAC. Enjoy long operational life exceeding 200,000 hours and excellent dielectric stability. Perfect for industrial, electronic, and communication circuits. Secure your supply instantly and benefit from fast delivery, RoHS compliance, and premium performance optimized for demanding engineering requirements. Click now to enhance your electronics projects easily.
Buy MMK 47K63J01L4 metallized polyester capacitor now and experience unmatched reliability and performance for your signal and bypass applications.
Frequently Asked Questions
Where can I buy KEMET MMK5473K63J01L4?
You can click on the BUY or RFQ button to purchase MMK5473K63J01L4 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part MMK5473K63J01L4?
You can download the MMK5473K63J01L4 datasheet or visit the KEMET website for support.
Who is the manufacturer of MMK5473K63J01L4?
KEMET
