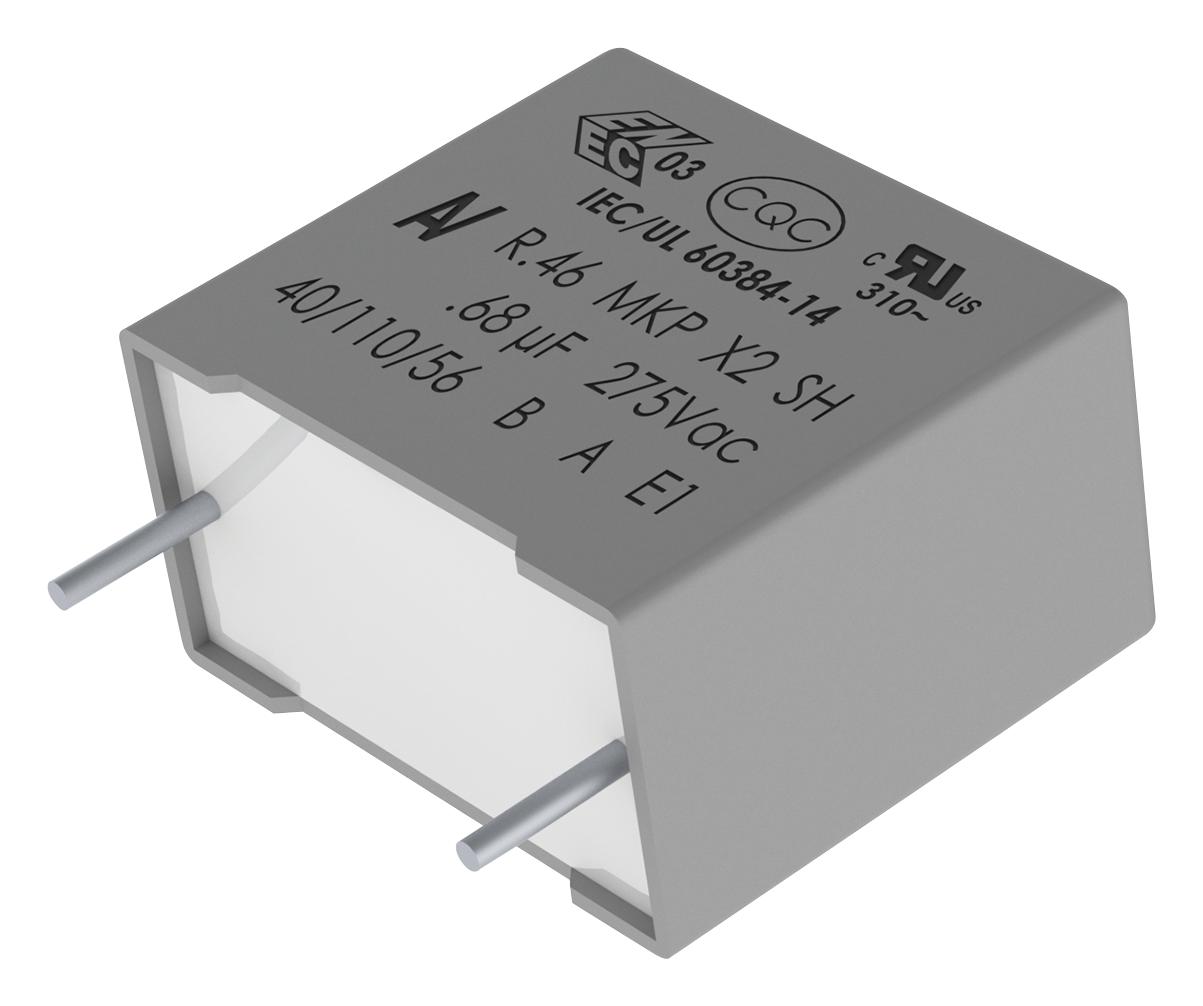

KEMET R46KN347050N0K High-Voltage Film Capacitor
The R46KN347050N0K is a high-performance film capacitor designed for safety and EMI filtering with metallized polypropylene dielectric. It features a voltage rating of 275 VAC (X2 safety class), 560 VDC, and operates efficiently within a temperature range of -40°C to +110°C. Its radial design incorporates wire leads and a 22.5mm lead spacing, making it suitable for various electronic and industrial applications. Certified by UL, ENEC, cUL, and CQC, it is ideal for demanding environments requiring reliable safety and insulation standards.
KEMET R46KN347050N0K High-Voltage Film Capacitor Specifications:
- Capacitance: 0.47 uF
- Capacitance Tolerance: 10%
- Voltage AC: 275 VAC (X2 safety class)
- Voltage DC: 560 VDC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Lead Spacing: 22.5 mm +/-0.4 mm
- Dimensions: Length 26.5 mm +0.3/-0.5 mm, Height 16 mm +0.1/-0.5 mm, Thickness 7 mm +0.2/-0.5 mm
- Dissipation Factor: 0.1% at 1 kHz
- Insulation Resistance: 63.83 GOhms
- Maximum dV/dt: 200 V/μs
- Features: EMI safety, RoHS compliant
- Compliance: UL, ENEC, cUL, CQC
- Material: Metallized polypropylene
- Lead Type: Wire leads
- Weight: 4 g
Buy the KEMET Series R46 High-Voltage Film Capacitor: R46KN347050NOK
Purchase the KEMET R46KN347050NOK high-voltage film capacitor online for reliable safety and EMI filtering in industrial applications. This metallized polypropylene capacitor features 275 VAC, 560 VDC ratings, and complies with UL and other safety standards. It offers a temperature range from -40°C to +110°C, ensuring durability in demanding environments. Its radial design with wire leads makes installation straightforward. Perfect for power electronics, filters, and safety circuits, this capacitor guarantees excellent insulation resistance, low dissipation factor, and long-lasting performance, making it an essential component for your electronic projects.
Get KEMET R46KN347050NOK today—built for premium safety, reliability, and high-voltage performance in industrial electronics.
Frequently Asked Questions
Where can I buy KEMET R46KN347050N0K?
You can click on the BUY or RFQ button to purchase R46KN347050N0K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R46KN347050N0K?
You can download the R46KN347050N0K datasheet or visit the KEMET website for support.
Who is the manufacturer of R46KN347050N0K?
KEMET
