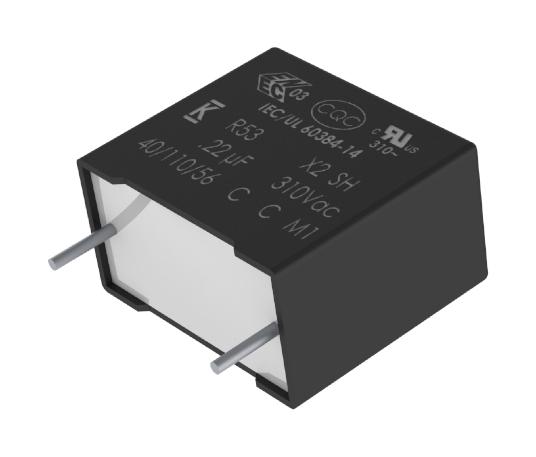

KEMET R533N410050P0K High-Voltage EMI Capacitor
The R53 miniature metallized polypropylene film capacitor is designed for EMI suppression in harsh environments, meeting automotive-grade standards. It features a Class X2 safety rating, operates at 310 VAC and 110°C, and is suitable for severe ambient conditions like automotive applications and power supplies. Constructed with self-extinguishing resin and UL94 V-0 box material, it supports high reliability, voltage stability, and long-term durability. Its compact size, low leakage, and high dielectric strength make it ideal for electromagnetic interference suppression in demanding electronic systems.
KEMET R533N410050P0K High-Voltage EMI Capacitor Specifications:
- Dielectric: Polypropylene film
- Plates: Metal layer deposited by evaporation under vacuum
- Winding: Non-inductive type
- Leads: Tinned wire
- Protection: Plastic case with self-extinguishing resin, UL94 V-0
- Rated Voltage: 310 VAC (50/60 Hz)
- Recommended DC Voltage: < 630 VDC
- Capacitance Range: 0.1 - 22 μF
- Capacitance Tolerance: +20%, +10%
- Temperature Range: -40°C to +110°C
- Climatic Category: 40/110/56 IEC 60068-1
- Approvals: ENEC, UL, cUL, CQC
- Storage Conditions: < 24 months, relative humidity < 70%, humidity tolerance for 30 days at 85% RH
- Test Voltage: 1900 VDC at factory screening
- Electrical Durability: 1,000 hours at 85°C, 85% RH, 310 VAC and 560 VDC
- Self-healing properties supported
- Construction: Metallized polypropylene film wound in molded case
- Lead Spacing: 15.0 - 37.5 mm
- Operating Temperature: -40°C to +110°C
Buy the KEMET Series R53 EMI Suppression Capacitor: R533N410050P0K
Purchase the KEMET high-voltage EMI suppression capacitor R533N410050P0K online today and ensure your electronic systems are protected against electromagnetic interference. Engineered with automotive-grade materials, it provides exceptional stability, durability, and compliance with safety standards. Perfect for harsh environments requiring reliable EMI suppression, this compact capacitor features a voltage rating of 310 VAC, operates in temperatures up to 110°C, and offers long-term performance with self-healing properties. Buy now for optimal system protection and peace of mind.
Buy KEMET R533N410050P0K now and experience unmatched reliability and performance for automotive-grade EMI suppression in harsh conditions.
Frequently Asked Questions
Where can I buy KEMET R533N410050P0K?
You can click on the BUY or RFQ button to purchase R533N410050P0K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R533N410050P0K?
You can download the R533N410050P0K datasheet or visit the KEMET website for support.
Who is the manufacturer of R533N410050P0K?
KEMET
