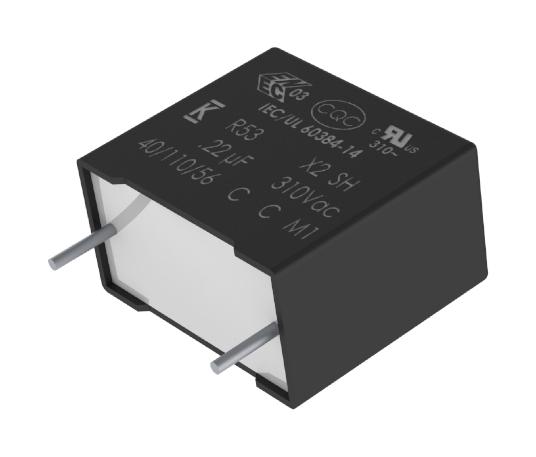

KEMET R533N410050P1M EMI Suppression Capacitor
The R53 series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin, ideal for harsh environmental conditions and automotive applications. It meets UL 94 V-0 and AEC-Q200 qualification standards. Designed for EMI suppression in across-the-line applications with X2 safety classification, rated at 310 VAC and operating up to 110°C. Suitable for connection in series with mains, power supplies, and energy meters, especially in severe ambient conditions like onboard chargers, offering reliability, self-healing properties, and RoHS compliance.
KEMET R533N410050P1M EMI Suppression Capacitor Specifications:
- Dielectric: Polypropylene film
- Plates: Metal layer deposited by evaporation under vacuum
- Winding: Non-inductive type
- Protection: Plastic case, thermosetting resin filled, UL94 V-0
- Rated Voltage: 310 VAC (50/60 Hz)
- Recommended DC Voltage: < 630 VDC
- Capacitance Range: 0.1 - 22 µF
- Capacitance Tolerance: +20%, +10%
- Temperature Range: -40°C to +110°C
- Climatic Category: 40/110/56 IEC 60068-1
- Leakage Current & Dissipation Factor: @1 kHz, tan δ ≤ 0.3%
- Lead Spacing: 15.0 - 37.5 mm
- Approval: UL, cUL, ENEC, CQC
- Self-healing properties and RoHS compliant
Buy the KEMET Series R53 Metallized Polypropylene EMI Suppression: R533N410050P1M
Purchase the KEMET R533N410050P1M online today to ensure your electronic projects and automotive systems benefit from high-quality EMI suppression. This metallized polypropylene capacitor rated at 310 volts and 110°C is ideal for harsh environments, providing excellent self-healing properties and compliance with stringent safety standards like UL and AEC-Q200. Its robust construction makes it suitable for series connection in mains and power supplies, offering reliable performance in severe ambient conditions, along with RoHS compliance. Optimize your electronic design and ensure safety with quick online ordering.
Buy KEMET R533N410050P1M now and experience unmatched reliability and performance in harsh environmental conditions and automotive applications.
Frequently Asked Questions
Where can I buy KEMET R533N410050P1M?
You can click on the BUY or RFQ button to purchase R533N410050P1M from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R533N410050P1M?
You can download the R533N410050P1M datasheet or visit the KEMET website for support.
Who is the manufacturer of R533N410050P1M?
KEMET
