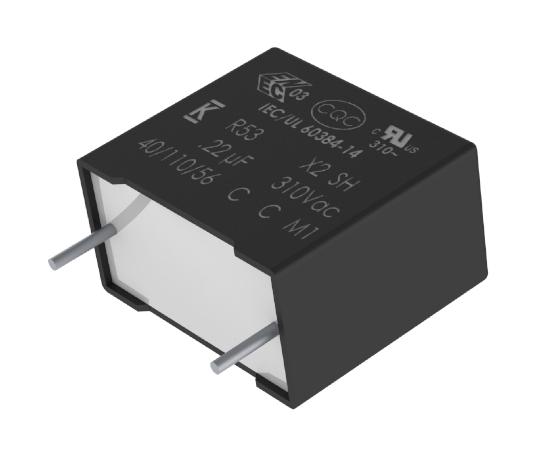

KEMET R533R415050P0K Automotive EMI Capacitor
The R53 series is a metallized polypropylene film EMI suppression capacitor designed for harsh environments and automotive applications, with a rated voltage of 310 VAC and operating temperature up to 110°C. It features self-healing properties, flame retardant self-extinguishing resin encapsulation meeting UL 94 V-0, and complies with automotive and safety standards including AEC-Q200, ENEC, UL, and cUL. Suitable for across-the-line EMI suppression, it ensures reliability under severe ambient conditions, with options for different lead spacings and packaging configurations.
KEMET R533R415050P0K Automotive EMI Capacitor Specifications:
- Dielectric: Polypropylene film
- Plates: Metal layer deposited by evaporation under vacuum
- Winding: Non-inductive type
- Leads: Tinned wire
- Case: Plastic, self-extinguishing resin-filled, UL 94 V-0 compliant
- Rated Voltage: 310 VAC (50/60 Hz)
- DC Voltage: < 630 VDC
- Capacitance Range: 0.1 - 22 μF
- Capacitance Tolerance: +20%, +10%
- Temperature Range: -40°C to +110°C
- Climatic Category: 40/110/56 IEC 60068-1
- Approval: ENEC, UL, cUL, CQC
- Dissipation Factor: 0.3% at 1 kHz for C<0.1 pF, 0.2% for C>0.1 pF
- Insulation Resistance: > 150,000 MΩ at 25°C
- Storage Conditions: < 24 months, humidity < 70%, no dew
- Vibration Test: 10-2000 Hz, compliant with MILSTD-202
- Mechanical Shock: 100 g for 6 ms (MIL-SDT-202)
- Endurance Test: 1000 hours at upper rated temperature, IEC 60384-14
Buy the KEMET Series R53 EMI Suppression: R533R415050P0K
Purchase the KEMET R533R415050P0K automotive-grade metallized polypropylene EMI suppression capacitor online today. Designed for demanding environments, it features a rated voltage of 310 VAC, operates from -40°C to 110°C, and is ideal for across-the-line EMI filtering applications. This reliable capacitor ensures long-lasting durability, excellent electrical performance, and compliance with safety standards like UL, ENEC, and cUL. Simplify your procurement process and secure high-quality components for automotive and industrial electronic systems with ease.
Get KEMET R533R415050P0K today—built for precision, reliability, and harsh environment performance.
Frequently Asked Questions
Where can I buy KEMET R533R415050P0K?
You can click on the BUY or RFQ button to purchase R533R415050P0K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R533R415050P0K?
You can download the R533R415050P0K datasheet or visit the KEMET website for support.
Who is the manufacturer of R533R415050P0K?
KEMET
