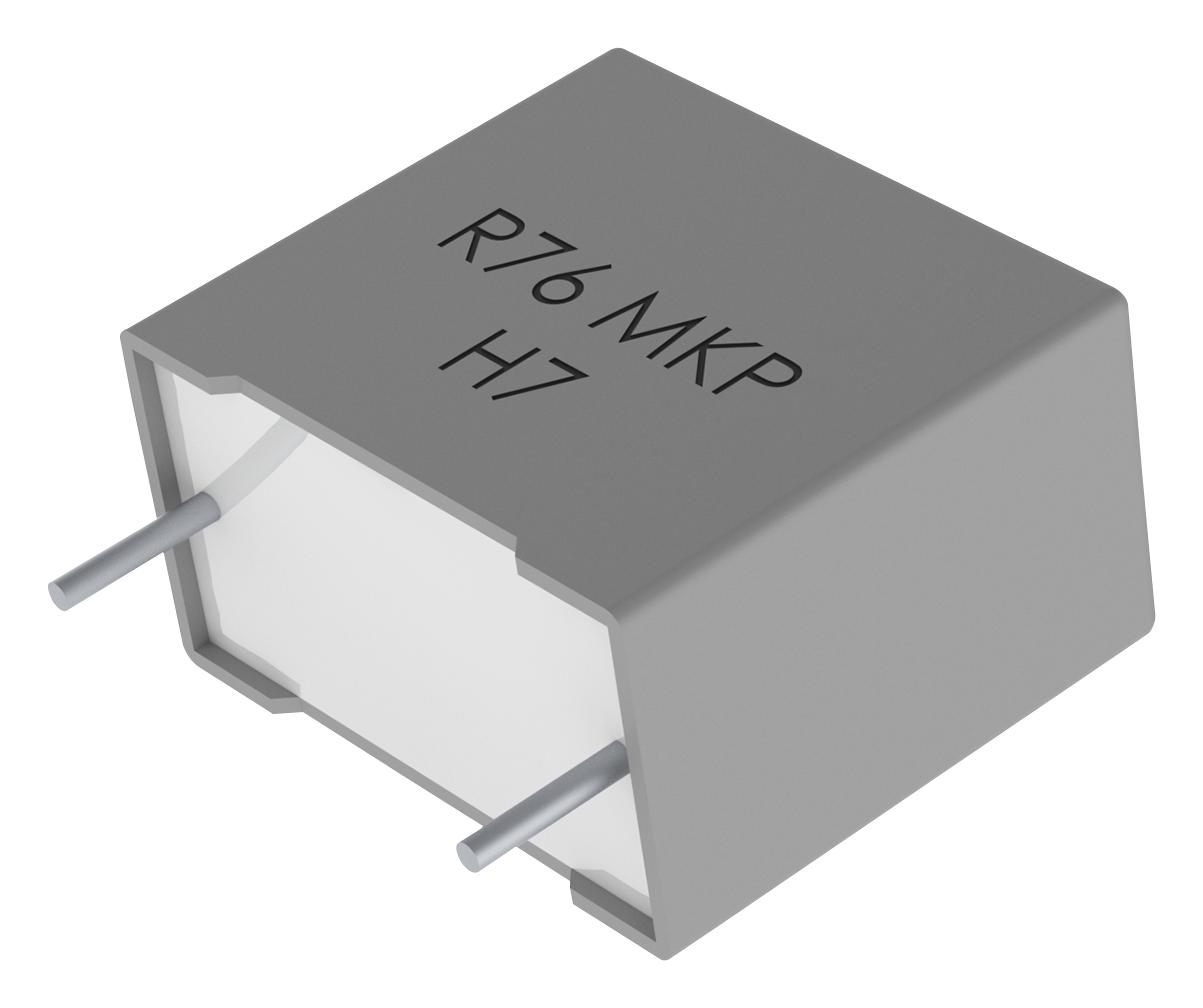

KEMET R76TN26805050J Automotive Grade Film Capacitor
The R76TN26805050J is a high-performance automotive grade film capacitor with double metallized polypropylene dielectric. Featuring a capacitance of 0.068 uF with a 5% tolerance, it supports a voltage of 1600 VDC and a rated temperature of 85°C. Its radial design with wire leads and compact size makes it ideal for pulse and automotive applications. This capacitor offers excellent insulation resistance of 100 GOhms, low dissipation factor, and robust construction to withstand demanding environments, ensuring reliability in sensitive electronic systems.
KEMET R76TN26805050J Automotive Grade Film Capacitor Specifications:
- Series: R76
- Dielectric: Double Metallized Polypropylene
- Type: Radial
- Features: Automotive Grade, Pulse
- RoHS: Yes
- Lead Type: Wire Leads
- Qualification: AEC-Q200
- Component Weight: 4.7g
- Length: 26.5mm +0.3/-0.5mm
- Height: 17mm +0.1/-0.5mm
- Thickness: 8.5mm +0.2/-0.5mm
- Lead Spacing: 22.5mm +/-0.4mm
- Capacitance: 0.068 uF
- Capacitance Tolerance: 5%
- Voltage AC: 650 VAC
- Voltage DC: 1600 VDC
- Temperature Range: -55/+110°C
- Rated Temperature: 85°C
- Dissipation Factor: 0.03% at 1kHz, 0.04% at 10kHz, 0.1% at 100kHz
- Insulation Resistance: 100 GOhms
- Maximum Voltage: 3000 V
- Packaging: Bulk, Bag
- Resistance: 16.38 mOhms (Typically at 10kHz)
- Packaging Quantity: 300 pieces
- Ripple Current: Specified at 85°C
- Inductance: 16 nH
Buy the KEMET R76TN26805050J – Reliable Automotive Grade Capacitor for Industrial Applications
Purchase the KEMET R76TN26805050J automotive grade film capacitor online today for your industrial and automotive projects. With a 0.068 uF capacitance, supported by 1600 VDC and an 85°C temperature rating, this capacitor ensures reliable performance in pulse and demanding environments. Its radial design with wire leads offers easy installation while maintaining high insulation resistance of 100 GOhms. Perfect for electronic circuit stability, it combines durability and precision, making it an essential component for engineers seeking high-quality capacitors for sensitive applications.
Order your KEMET Series R76TN26805050J today and give your automotive and pulse applications the dependable quality they deserve.
Frequently Asked Questions
Where can I buy KEMET R76TN26805050J?
You can click on the BUY or RFQ button to purchase R76TN26805050J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R76TN26805050J?
You can download the R76TN26805050J datasheet or visit the KEMET website for support.
Who is the manufacturer of R76TN26805050J?
KEMET
