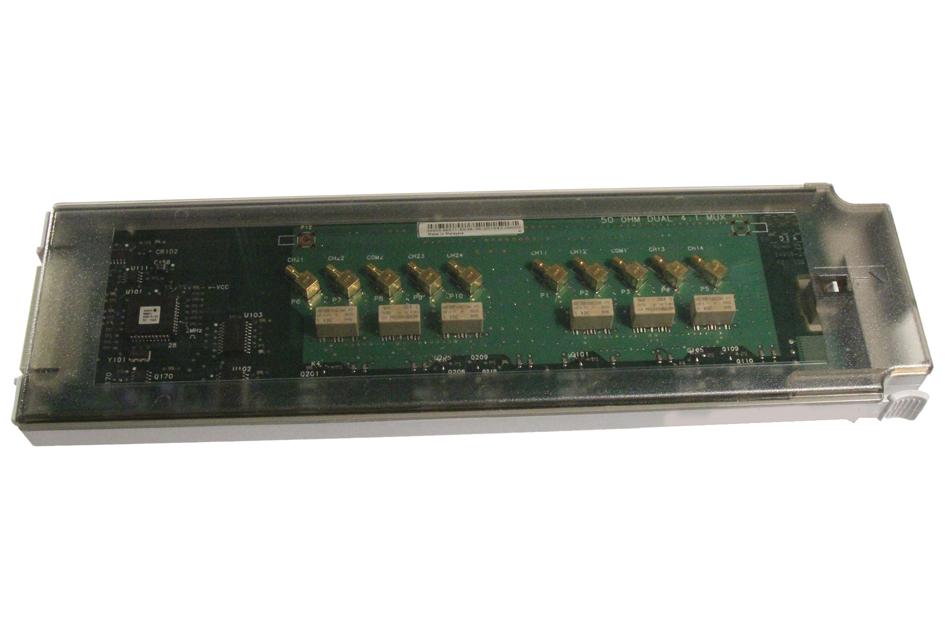

KEYSIGHT TECHNOLOGIES 34905A RF Multiplexer
The Keysight 34905A RF multiplexers offer broad bandwidth switching capabilities for high-frequency and pulsed signal routing, arranged as two independent 1x4 modules with a common shield and switched center conductor. They support direct SMB connections with a 2 GHz bandwidth or via included BNC-to-SMB adapters with 1 GHz bandwidth. These multiplexers are ideal for applications in communications, testing, and signal processing, as multiple modules can be cascaded to create configurations like a 16:1 multiplexer. They ensure reliable, high-performance signal routing in demanding test and measurement environments.
KEYSIGHT TECHNOLOGIES 34905A RF Multiplexer Specifications:
- Bandwidth: 2 GHz
- Insertion Loss: 1 dB at 10 MHz, 3 dB at 100 MHz, 4 dB at 1 GHz, 5 dB at 3 GHz
- VSWR: 1.02 from 10 MHz to 500 MHz, 1.20 at 1 GHz, 1.40 at 2 GHz
- Crosstalk: -40 dB at 10 MHz, -65 dB at 1 GHz, -35 dB at 2 GHz
- Insertion Loss: 1 dB at 10 MHz, increasing to 4 dB at 1 GHz, 5 dB at 3 GHz
- Max Power: 50 W
- Relays: 2 GHz bandwidth, BNC to SMB adapters included
- Connectors: SMB, BNC (adapters included)
- Isolation: >10 GΩ between channels
- Dimensions: 4.00 x 3.75 x 1.25 inches
- Weight: Approx. 1.2 kg
- Temperature Range: 0°C to 55°C
- Operate on 50 Ω impedance
Buy the Keysight 34905A RF Multiplexer – Reliable RF Switching for Communications and Signal Processing
Order the Keysight 34905A RF multiplexer to ensure seamless high-frequency signal routing in your test setup. Its 2 GHz bandwidth and reliable BNC-to-SMB adapters provide flexibility and high performance for communications, testing, and RF applications. Cascadable modules allow for custom configurations like a 16:1 multiplexer. Easy connection, low insertion loss, and excellent isolation make it ideal for demanding measurement tasks. Enhance your signal routing capability today by purchasing online and streamline your high-frequency testing environment.
Buy Keysight 34905A RF multiplexer now and experience high-frequency switching up to 2 GHz for advanced communication and test applications.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES 34905A?
You can click on the BUY or RFQ button to purchase 34905A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 34905A?
You can download the 34905A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of 34905A?
KEYSIGHT TECHNOLOGIES
