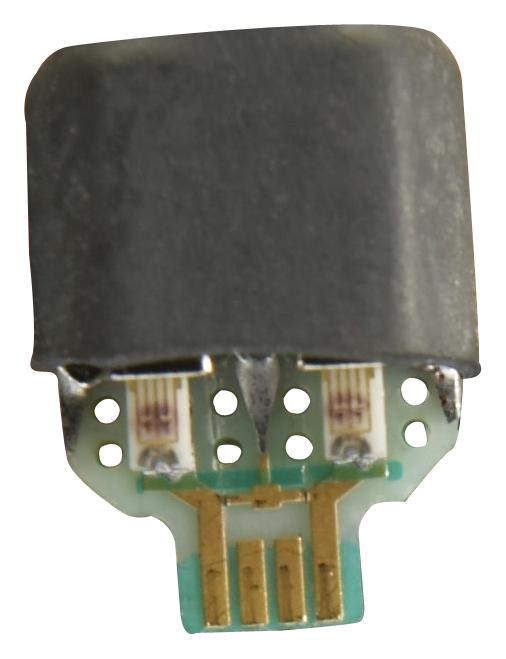

KEYSIGHT TECHNOLOGIES N5425B Differential ZIF Probe Head
The N5425B is a 13 GHz InfiniiMax differential ZIF probe head designed for high-frequency signal measurement. It offers maximum bandwidth and features the industry's first lead-free solder-in probe solution, which is available in an economical, replaceable tip form factor. Please note that the probe head does not include any ZIF probe tips. It supports 50 kΩ differential and 25 kΩ single-ended input impedances, with capacitances of 0.33 pF for differential and 0.53 pF for single-ended configurations. Suitable applications include industrial environments and signal processing tasks.
KEYSIGHT TECHNOLOGIES N5425B Differential ZIF Probe Head Specifications:
- Bandwidth: 13 GHz maximum
- Capacitance (differential): 0.33 pF
- Capacitance (single-ended): 0.53 pF
- Input impedance (differential): 50 kΩ
- Input impedance (single-ended): 25 kΩ
- No ZIF probe tips included
- Suitable for high-frequency signal measurement
- Lead-free solder-in design
- Economical, replaceable tip configuration
- Application areas: industrial testing, signal integrity analysis
Buy the Keysight InfiniiMax N5425B – Reliable Differential ZIF Probe Head for Industrial Applications
Order the Keysight InfiniiMax N5425B differential ZIF probe head online today to ensure high-fidelity signal measurements up to 13 GHz. This probe head features industry-leading lead-free solder-in technology with a replaceable tip, supporting 50 kΩ differential and 25 kΩ single-ended input impedances. Its compact design is perfect for sensitive high-frequency testing in industrial and research environments. Compatible with InfiniiMax III/Ill+ amplifiers, it delivers superior performance, low capacitance, and stability, helping you achieve accurate, reliable measurement results efficiently.
Get Keysight InfiniiMax N5425B today—built for high-frequency precision and long-lasting durability.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES N5425B?
You can click on the BUY or RFQ button to purchase N5425B from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part N5425B?
You can download the N5425B datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of N5425B?
KEYSIGHT TECHNOLOGIES
