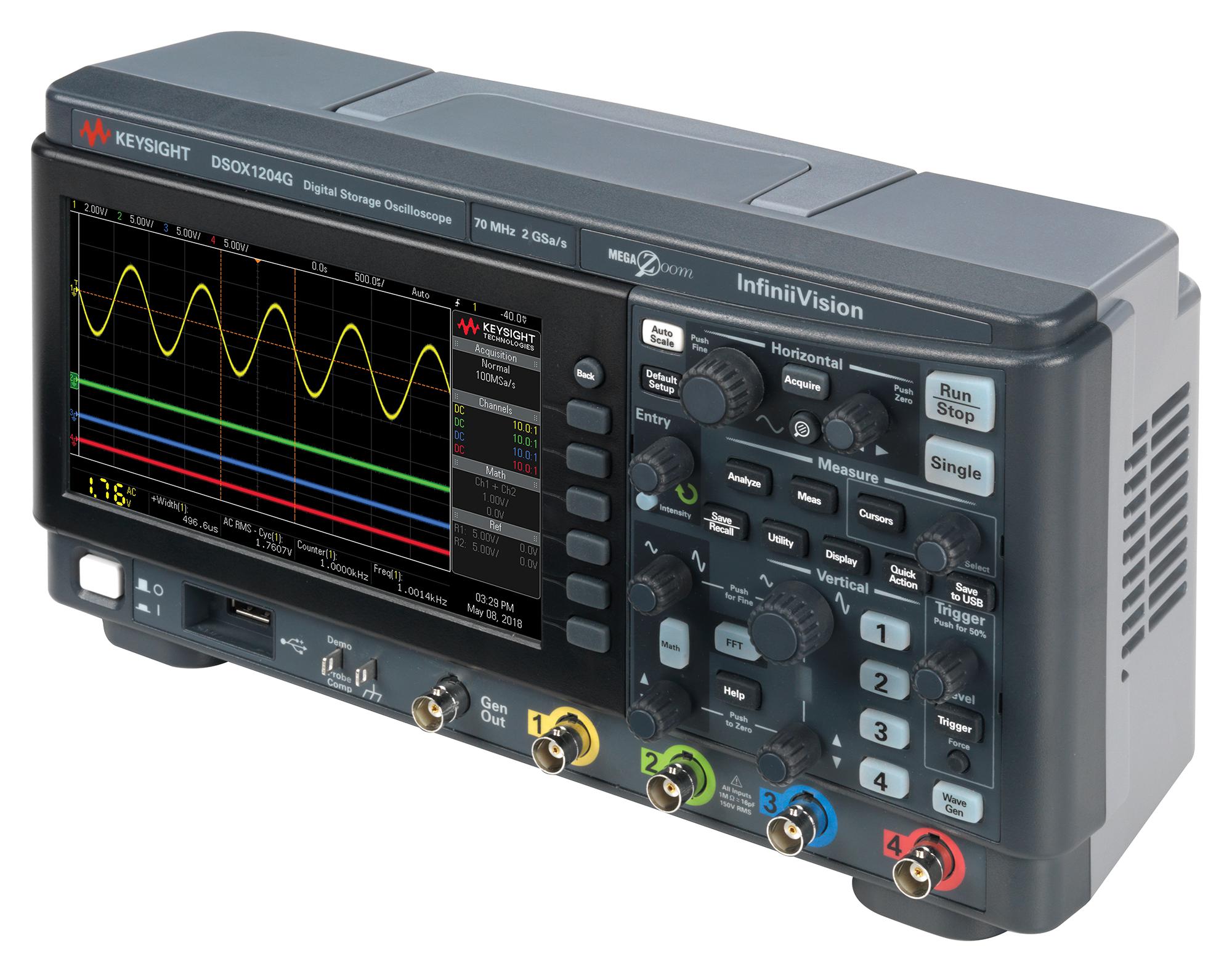

KEYSIGHT TECHNOLOGIES DSOX1204G Oscilloscope
The DSOX1204G Series features an integrated 20 MHz function generator with signal modulation capabilities, providing sine, square, ramp, pulse, DC, and noise waveforms for device testing. It supports modulation options including amplitude, frequency, and FSK, making it suitable for educational and design laboratories. The oscilloscope offers four analogue channels with a maximum sample rate of 2 GSa/s, and a memory depth of 1 million points. It has a 7-inch TFT LCD WVGA display, with a calculated rise time of less than or equal to 5 ns. Built-in USB host and device ports facilitate easy PC connectivity. The device includes 24 automatic measurement functions, segmented memory, and mask/limit testing. Its dimensions are 314 mm x 165 mm x 130 mm, and it complies with safety standards UL61010-1 and CAN/CSA-C22.2 no. 61010-1-12.
KEYSIGHT TECHNOLOGIES DSOX1204G Oscilloscope Specifications:
- Bandwidth: 70/100/200 MHz depending on model
- Channels: 4 analog channels
- Sample rate: Up to 2 GSa/s per channel
- Memory depth: 1 M points per channel
- Display: 7-inch TFT LCD WVGA
- Rise time: ≤5 ns
- Built-in function generator: 20 MHz, sine, square, ramp, pulse, DC, noise
- Modulation capabilities: AM, FM, FSK
- Trigger modes: Auto, normal, single
- Connectivity: USB 2.0 host and device ports, LAN
- Dimensions: 314 mm x 165 mm x 130 mm
- Weight: 3.23 kg
- Standards: UL61010-1, CSA C22.2 No. 61010-1-12
Buy the Buy Keysight DSOX1204G Oscilloscope Part Number DSOX1204G Online
Order the Keysight DSOX1204G oscilloscope online today and enhance your measurement capabilities with four channels, 2 GSa/s sampling, segmented memory, and built-in 20 MHz function generator. Ideal for educational labs and electronic testing, this instrument combines professional features in a compact design. The device supports advanced measurement functions, serial protocol analysis, and multiple connectivity options including USB and LAN. With compliance to safety standards, it offers excellent reliability. Invest now to get precise, versatile signal testing at an unbeatable price, boosting your engineering projects and learning environment.
Buy Keysight DSOX1204G oscilloscope now and experience reliable signal analysis with integrated 20 MHz function generator and high-speed sampling.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES DSOX1204G?
You can click on the BUY or RFQ button to purchase DSOX1204G from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part DSOX1204G?
You can download the DSOX1204G datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of DSOX1204G?
KEYSIGHT TECHNOLOGIES
