KEYSIGHT TECHNOLOGIES E3640A Power Supply

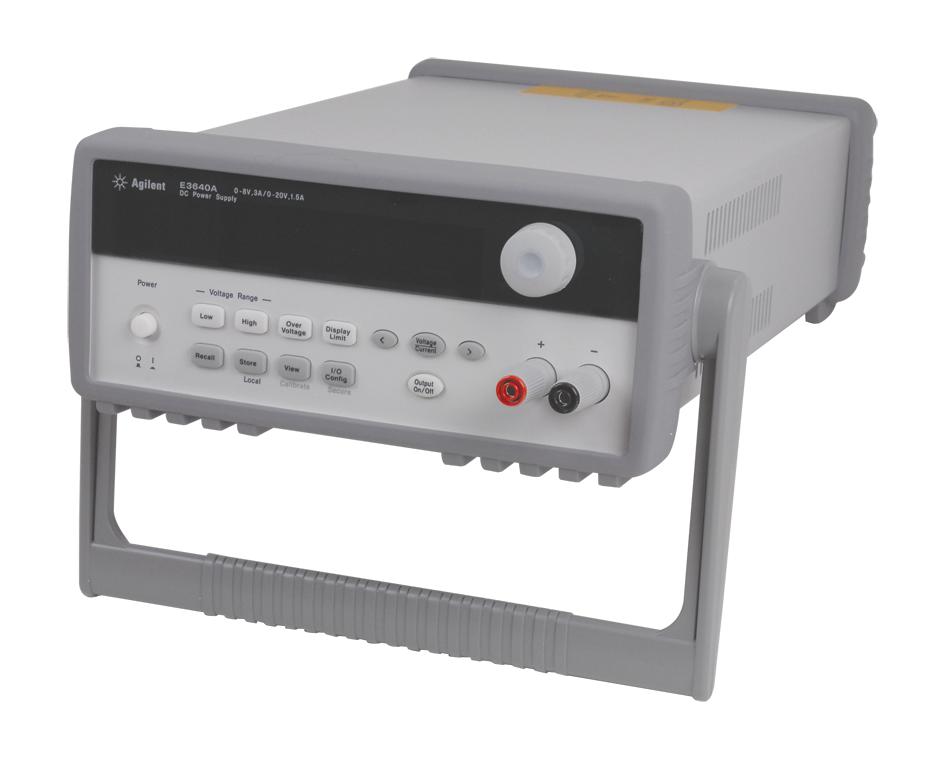

The Keysight E3640A is a 30W single-output programmable DC power supply suitable for bench testing, R&D, and automated testing. It features stable, low-noise output with excellent regulation, remote sensing, over-voltage protection, and save/recall functions. Equipped with front and rear output terminals, a high-visibility vacuum fluorescent display, and a durable handle, it provides easy operation and portability. The device supports GPIB and RS-232 interfaces, enabling remote control and automation. Automatic fan speed reduces noise, making it ideal for testing, power management, and precise circuitry applications.
KEYSIGHT TECHNOLOGIES E3640A Power Supply Specifications:
- Maximum Power: 30W
- Outputs: 1
- DC Output Rating: Oto 8V/3A or Oto 35W/8A
- Voltage Range: 0 to 8V
- Current Range: 0 to 3A
- Regulation: Load and line regulation less than 0.01%
- Ripple and Noise: Less than 5 mVpp (20 Hz to 20 MHz)
- Display: Vacuum fluorescent display for high visibility
- Remote Sensing: Supported via rear terminals
- Protection: Over-voltage protection adjustable
- Interfaces: Built-in GPIB and RS-232
- Cooling: Fan with automatic speed control
- Dimensions: 212.6 mm W x 88.5 mm H x 348.3 mm D
- Weight: 5.3 kg
- Operating Temperature: 0°C to 40°C
- Certifications: UL, CSA, IEC compliance
Buy the Buy Keysight Power Supply Part Number E3640A Online
Purchase the Keysight E3640A programmable DC power supply online for reliable, low-noise testing with adjustable overvoltage protection, remote sensing, and easy-to-use GPIB and RS-232 interfaces. Designed for bench, R&D, and automation applications, this 30W device offers outstanding regulation, quick response times, and portability with a durable handle. It includes save and recall functions, a high-visibility display, and a fan with automatic speed control for minimal noise. Order now for precision power management and testing efficiency.
Get Keysight E3640A today—built for stable, precise power delivery with versatile remote control options and low noise for demanding applications.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES E3640A?
You can click on the BUY or RFQ button to purchase E3640A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part E3640A?
You can download the E3640A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of E3640A?
KEYSIGHT TECHNOLOGIES
