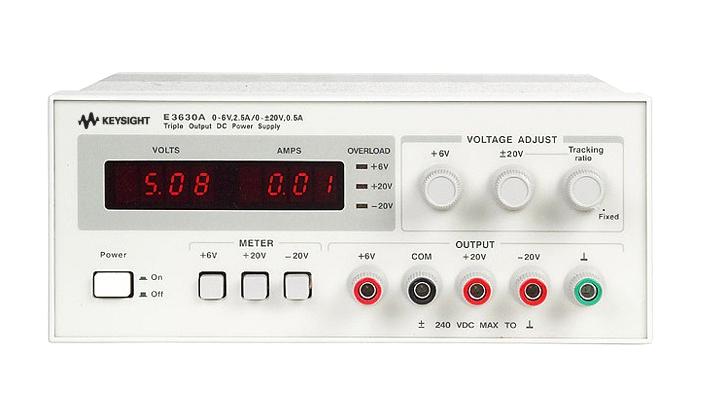

KEYSIGHT TECHNOLOGIES E3630A Triple-Output Power Supply
The E3630A is an affordable bench-top linear power supply that delivers high-performance, clean, and stable power suitable for testing, measurement, and power management. Featuring triple outputs with 10-turn controls, it offers precise voltage and current adjustments, low noise, and an auto-tracking function for synchronized outputs. Its compact design includes separate digital meters for voltage and current monitoring, making it ideal for various applications requiring reliable power. Includes user guide, power cord, and product reference CD, ensuring ease of use and accurate measurements in laboratory or industrial settings.
KEYSIGHT TECHNOLOGIES E3630A Triple-Output Power Supply Specifications:
- Number of outputs: 3
- Output ranges: 0 to 6 V (1-2.5 A), 0 to 20 V (0.5 A), 0 to 20 V (0.5 A)
- DC output ratings: 0 to 6 V at 1-2.5 A, 0 to 20 V at 0.5 A, 0 to 20 V at 0.5 A
- Line and load regulation: < 0.01% + 2 mV
- Ripple and Noise: < 350 Vrms, < 1.5 mV peak-to-peak
- Common mode current: < 1 pA rms
- Transient response time: < 50 sec to recover within 15 mV after load change
- Meter accuracy: ±0.5% + 2 counts at 25°C, ±5°C
- Isolation: 240 V DC
- Control mode: CV, CF, tracking (+20 V), (+6 V)
- Temperature coefficient: < 0.02% + 1 mV per °C
- Output drift: Voltage less than 0.1% + 5 mV over 8 hours
- Cooling: Convection cooling
- Input voltage options: 100 Vac, 115 Vac, 230 Vac (+/- 10%)
- Dimensions: 88.1 mm H x 212.3 mm W x 318 mm D
- Weight: 3.8 kg (8.4 lbs) net
- Warranty: Three-year for power supply
- Certifications: CSA, IEC 1010-1, CE, CISPR-11, KC, ICES/NMB-001, Australian C Tick Mark
Buy the Buy Keysight E3630A Triple-Output Power Supply Part Number E3630A Online
Experience reliable power delivery with Keysight E3630A’s triple-output design, low noise, and auto-tracking feature. Perfect for laboratory testing, device calibration, and industrial applications requiring balanced voltages. Compact and easy to operate with digital meters for monitoring voltage and current simultaneously. Includes essential accessories like user guide, power cord, and reference CD, making setup straightforward. This power supply provides precise voltage adjustments and excellent stability, ensuring your measurements are accurate and your projects stay on track. Order your Keysight E3630A today for dependable performance.
Get Keysight E3630A today—built for precise voltage control, low noise, and reliable performance in measurement and testing environments.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES E3630A?
You can click on the BUY or RFQ button to purchase E3630A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part E3630A?
You can download the E3630A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of E3630A?
KEYSIGHT TECHNOLOGIES
