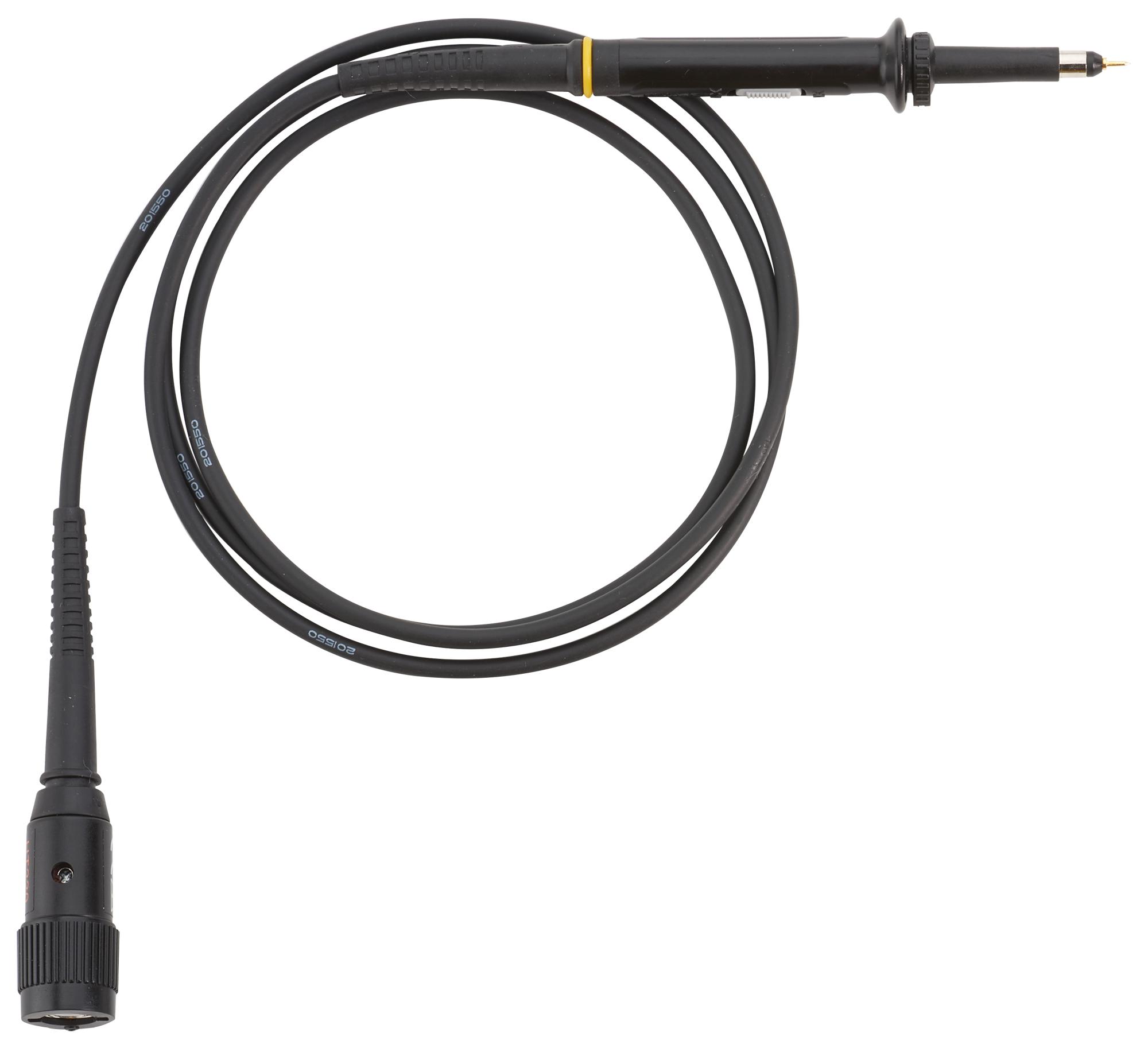

KEYSIGHT TECHNOLOGIES N2142A Oscilloscope Probe
The N2142A from Keysight Technologies is a switchable passive oscilloscope probe compatible with Keysight InfiniiVision EDUX1002A and EDUX1002G models. It features 1:1 and 10:1 attenuation ratios with a bandwidth of 75MHz. The probe has a high impedance design with input resistance of 1 MΩ for 1:1 and 10 MΩ for 10:1, and input capacitance of 100 pF and 15 pF respectively. Rated for maximum voltages of 150 Vrms and 300 Vrms CAT II, it has a current rating of 0.15 mA. Its body measures 95 mm, with a 1200 mm cable, and weighs 55 grams, operating in -10°C to +55°C.
KEYSIGHT TECHNOLOGIES N2142A Oscilloscope Probe Specifications:
- Attenuation Ratios: 1:1, 10:1
- Bandwidth: 75 MHz
- Input Resistance: 1 MΩ (1:1), 10 MΩ (10:1)
- Input Capacitance: 100 pF (1:1), 15 pF (10:1)
- Maximum Input Voltage: 150 Vrms (1:1), 300 Vrms (10:1)
- Category: CAT II
- Current Rating: 0.15 mA
- Probe Length: 95 mm
- Cable Length: 1200 mm
- Weight: 55 grams
- Operating Temperature Range: -10°C to +55°C
- Connector: BNC with pin hole (no pin)
Buy the Keysight Series Oscilloscope Probe: N2142A
Get the Keysight Oscilloscope Probe N2142A online today for precise signal measurement. Featuring switchable attenuation ratios, high impedance, and rated voltages of 150V and 300V CAT II, it offers optimal performance for test and measurement applications. Its compact design includes a 95 mm body and 1200 mm cable, making it user-friendly for various environments. Compatible with EDUX1002A and EDUX1002G models, this probe is an essential tool for professionals seeking reliable and accurate oscilloscope testing.
Order your Keysight Series Oscilloscope Probe N2142A today and enhance your measurement accuracy with reliable and versatile test accessories.
