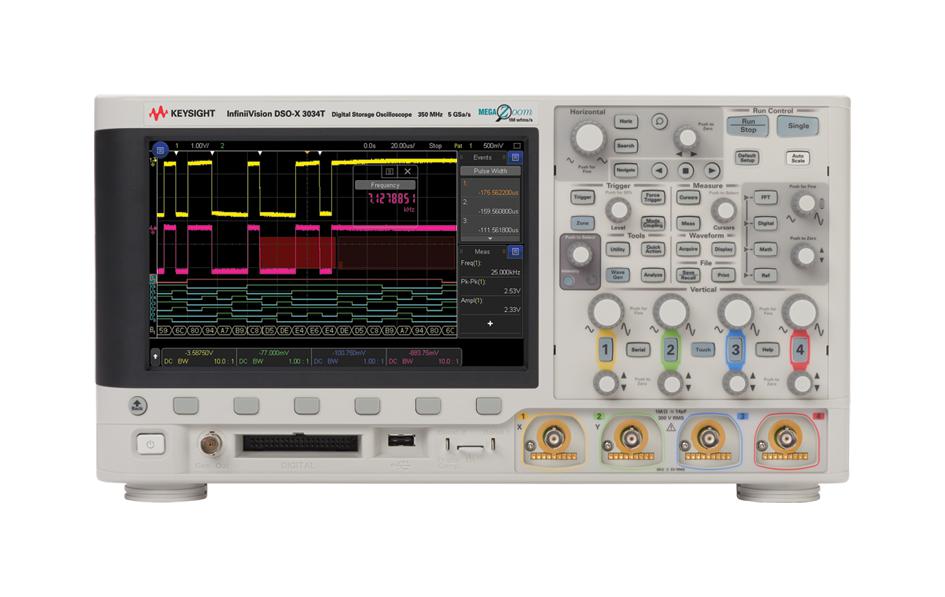

KEYSIGHT TECHNOLOGIES DSOX3034T Oscilloscope
The Keysight InfiniiVision 3000T X-Series oscilloscope offers industry-leading performance with an industry-leading update rate of over one million waveforms per second, ensuring high probability of capturing infrequent anomalies. Designed with a large 8.5-inch capacitive touch screen and an intuitive interface, it simplifies user operation and documentation. Key features include segmented smart memory for capturing long time periods, hardware-based serial decoding for fast serial protocol analysis, advanced math functions, and integrated power measurements. It is ideal for troubleshooting, debugging, and analyzing complex electronic signals in professional lab environments.
KEYSIGHT TECHNOLOGIES DSOX3034T Oscilloscope Specifications:
- Bandwidth: 100 MHz to 1 GHz models available
- Input channels: 2 or 4 analog channels, up to 16 digital channels (MSO option)
- Waveform update rate: > 1,000,000 wfms/sec
- Display size: 8.5-inch capacitive touch TFT LCD
- Memory depth: Standard 4 Mpts, segmented memory options available
- Vertical sensitivity: 1 mV/div to 5 V/div (varies by model)
- Maximum input voltage: 135 Vrms (full scale, depending on probe)
- Sample rate: Up to 5 GSa/s per channel
- Vertical resolution: 8 bits (12 bits with averaging)
- Built-in waveform generator: 20 MHz (optional)
- Serial decoding: Support for I2C, SPI, UART, CAN, LIN, SENT, FlexRay, MIL-STD 1553, ARINC 429, and USB PD
- Triggering: Zone, edge, pulse width, runt, pattern, video, serial protocols
- Measurement accuracy: DC vertical gain ±2.0%, offset ±0.1 div + 2 mV
- Environmental: Operation from 5°C to 55°C, maximum humidity 95%
- Size: 381 mm x 204 mm x 142 mm
- Weight: 4.0 kg
Buy the Buy Keysight InfiniiVision 3000T X-Series Part Number DSOX3034T Online
Purchase the Keysight InfiniiVision 3000T X-Series oscilloscope online today and experience industry-leading signal analysis capabilities. Featuring over one million wfms/sec update rate, segmented memory, and advanced serial decoding, it ensures you capture elusive anomalies efficiently. The large touch screen interface simplifies operation, while integrated math functions and power measurements provide comprehensive analysis tools. Ideal for troubleshooting complex signals, this oscilloscope boosts your productivity and measurement accuracy. Get your high-performance oscilloscope now for detailed, reliable signal insights in your projects.
Order your Keysight Series3000T X-Series DSOX3034T today and equip your lab with the industry-leading oscilloscope for precise and reliable measurements.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES DSOX3034T?
You can click on the BUY or RFQ button to purchase DSOX3034T from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part DSOX3034T?
You can download the DSOX3034T datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of DSOX3034T?
KEYSIGHT TECHNOLOGIES
