KEYSIGHT TECHNOLOGIES AC6802B Datasheet & Stock

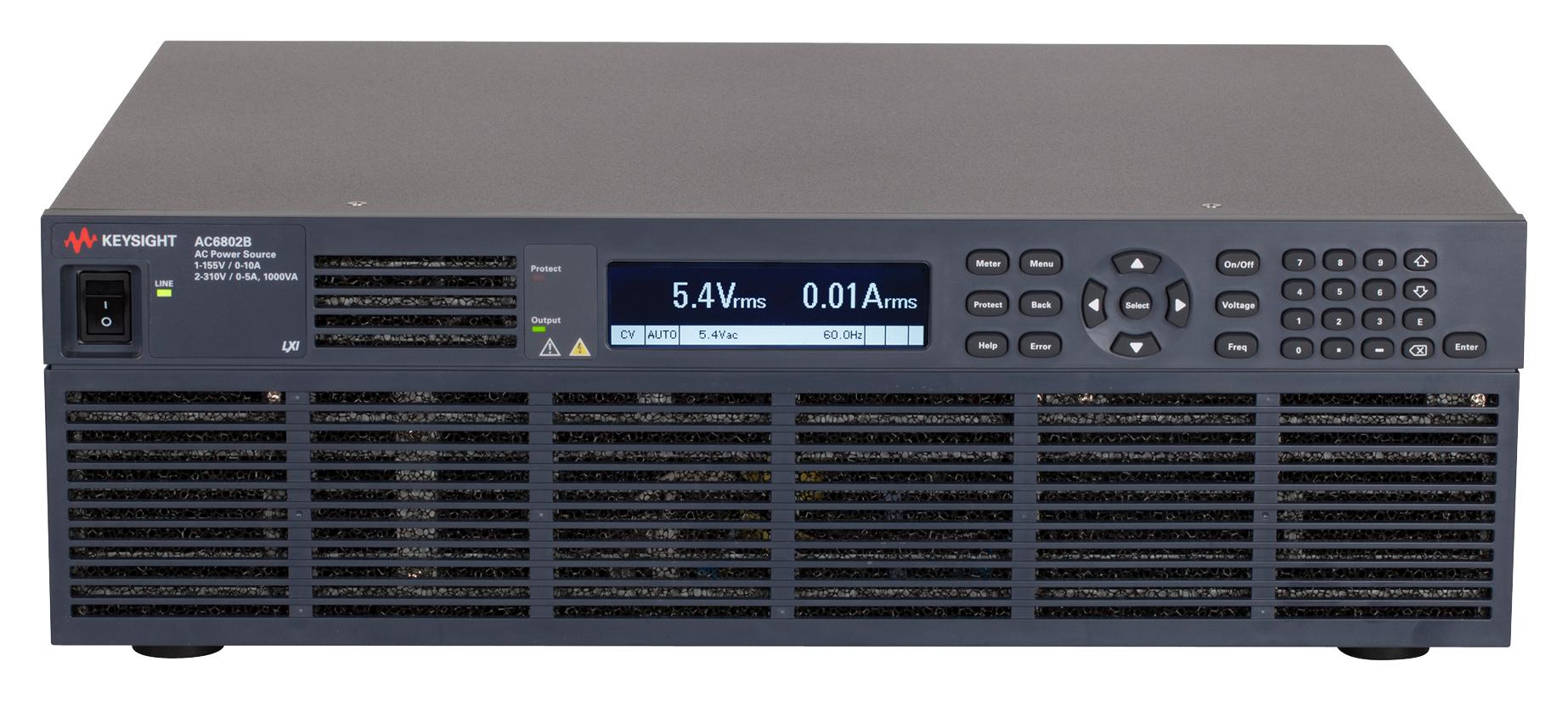

The AC6802B from Keysight Technologies is a single-phase, basic AC power source ideal for laboratory and testing applications. It offers a maximum power output of 1000VA with a frequency range of 40-500Hz and an output power capacity of 800W. The device features both AC and DC output modes, with AC voltage up to 155Vrms (low) and 310Vrms (high), and DC voltage up to 219V (low) and 438V (high). It can deliver a maximum rms current of 10A in AC mode and 8A in DC mode. The unit provides flexible I/O options including LAN/LXI core, USB, and optional GPIB interfaces, enabling remote setup, monitoring, and operation. It has an isolation of 310Vrms or 438VDC to ground, withstanding voltage of 1.5kV AC for 1 minute and insulation resistance exceeding 30 MΩ at 500VDC. The device dimensions are 428mm deep (including safety cover), 128mm wide, and 370mm high, weighing approximately 11kg. Designed for applications such as simulating global AC power conditions, testing varying frequency and voltage combinations, power factor correction testing, and AC/DC circuit testing. It comes with a three-year warranty.

View AC6802BDatasheet [pdf]
