KEYSIGHT TECHNOLOGIES N3306A Datasheet & Stock

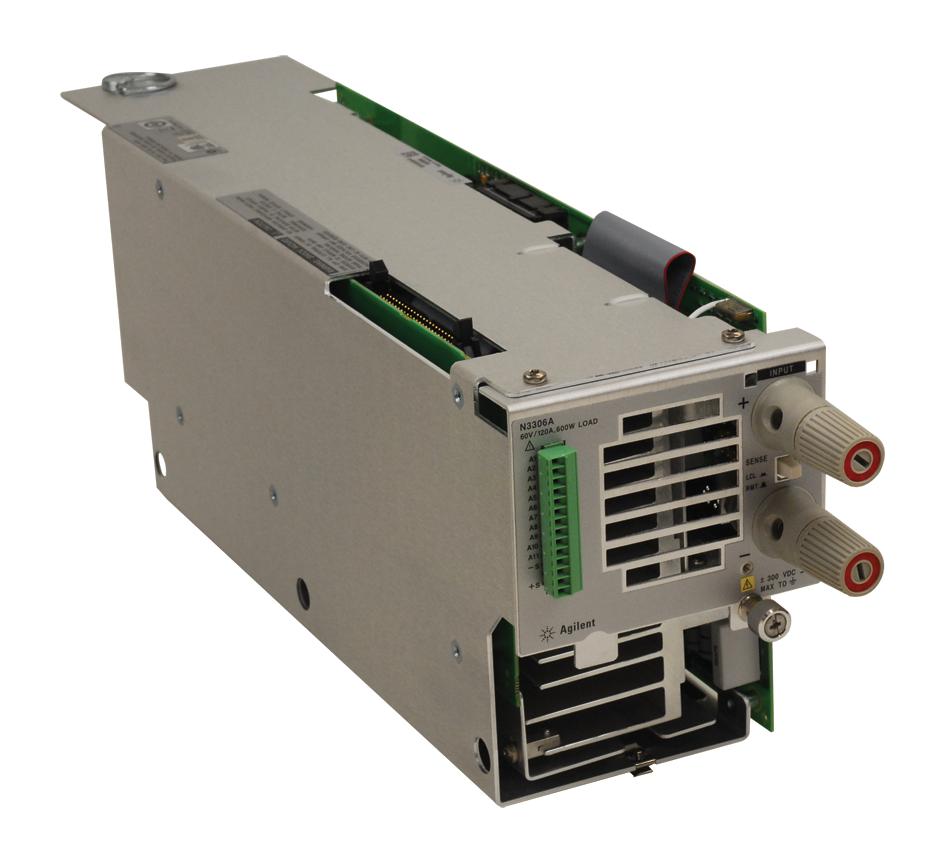

The Keysight N3306A is a 600 W (0-120A, 0-60V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications. The N3306A load module is fast and accurate, for programming in constant current, constant voltage, or constant resistance modes, or for making voltage, current or power measurements. The N3306A can also digitize waveforms. The N3306A electronic load provides fast operation and the accurate programming and read-back needed for high-volume DC power supply test systems.




Constant Current Range: 12A - 120A

Constant Voltage Range: 6V - 60V

Constant Resistance Range 1: 0.017Ω - 1Ω

Constant Resistance Range 2: 0.9Ω - 10Ω

Constant Resistance Range 3: 9Ω - 100Ω

Constant Resistance Range 4: 90Ω - 1000Ω





Applications


Sensing & Instrumentation,

Signal Processing,

Test & Measurement
