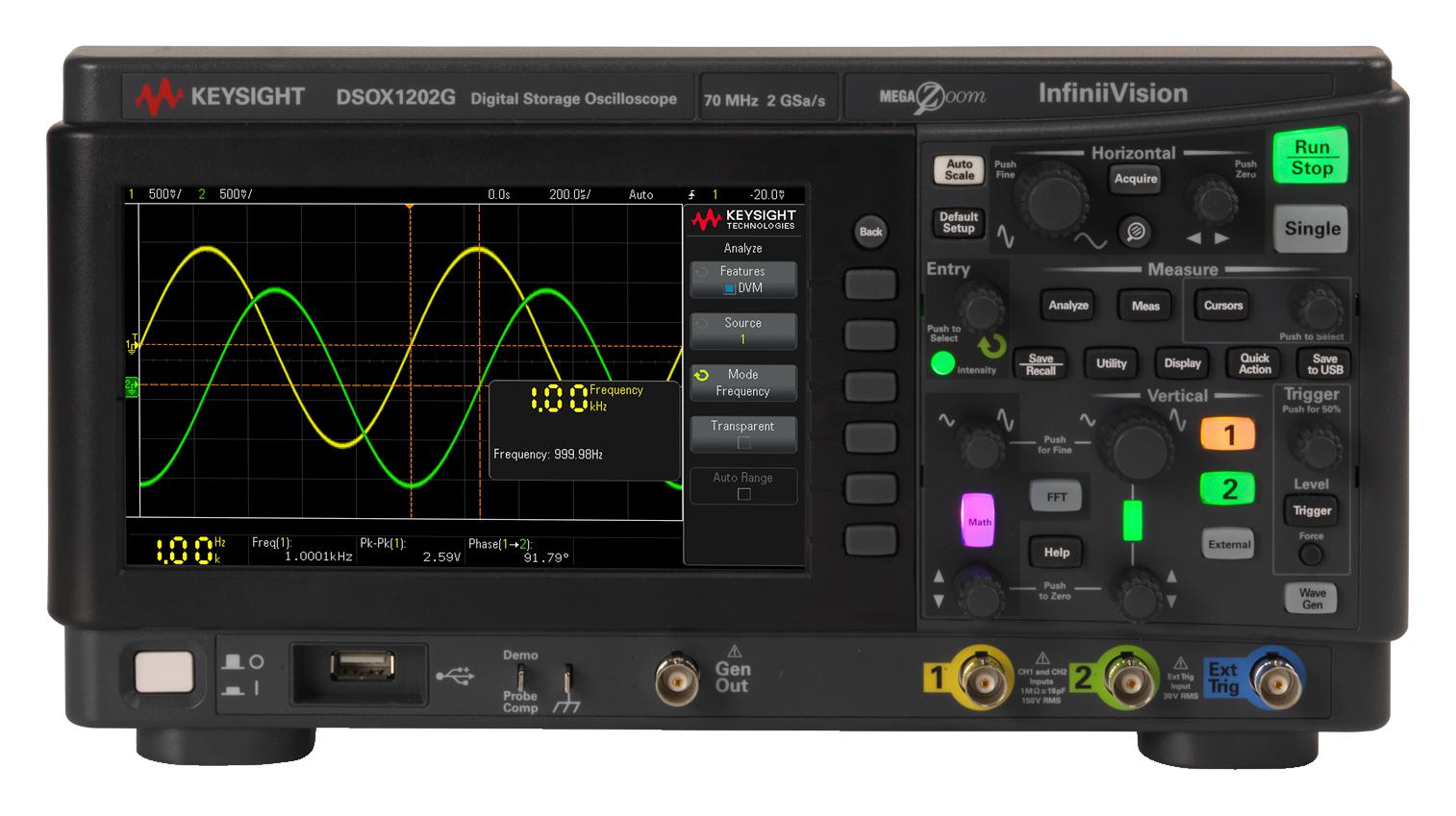

KEYSIGHT TECHNOLOGIES DSOX1202GDSTDEMO Oscilloscope
The DSOX1202G-DEST-DEMO is a demonstration version of the InfiniiVision 1000 X-Series oscilloscope, featuring a 70 MHz bandwidth and two channels. It comes with a built-in 20 MHz function generator and supports serial bus analysis for protocols such as I²C, SPI, UART, CAN, and LIN. The device boasts a 7-inch WVGA TFT LCD display, USB 2.0 ports, LAN connectivity, and advanced measurement tools like Bode plots, FFT, math functions, and mask testing. Designed for educational and testing applications, it offers a user-friendly interface with built-in help, training signals, and supports up to 200,000 waveforms/sec update rate, ensuring quick, reliable analysis. Its near-new condition with all original accessories makes it ideal for professional testing environments.
KEYSIGHT TECHNOLOGIES DSOX1202GDSTDEMO Oscilloscope Specifications:
- Bandwidth: 70 MHz (base), 100 MHz (option D1200BW1A), 200 MHz (option D1200BW2A)
- Channels: 2 analog channels plus external trigger (viewable as digital channel)
- Maximum sample rate: 1 GS/s (all channels)
- Maximum memory depth: 200,000 points (all channels)
- Waveform update rate: 200,000 waveforms/sec
- Display: 7-inch WVGA TFT LCD
- Connectivity: USB 2.0 host and device ports, LAN (Ethernet 1 Gb/s)
- Built-in function generator: 20 MHz with modulation (AM, FM, FSK)
- Serial protocol analysis: Supports I²C, SPI, UART, CAN, LIN
- Measurement tools: Bode plots, FFT, math functions, mask testing, digital voltmeter, frequency counter
- Measurement accuracy: High-speed and precise, suitable for professional use
- Power: 100-240 V AC, 50/60 Hz
- Size: Approx. 314 mm x 165 mm x 130 mm
- Weight: Approximately 3.23 kg
- Environmental: Designed for operation up to +50°C, humidity up to 95% RH
Buy the Buy Keysight InfiniiVision 1000 X-Series Part Number DSOX1202GDSTDEMO Online
Order the Keysight InfiniiVision 1000 X-Series oscilloscope DSOX1202GDSTDEMO online today to access advanced measurement capabilities, serial bus analysis, and a built-in function generator. Perfect for professional testing and educational purposes, this near-new demo unit offers high-speed waveform capture at 200,000 waveforms/sec, a clear 7-inch LCD, and comprehensive connectivity options including USB and LAN. Enhance your testing accuracy and efficiency with this reliable, cost-effective oscilloscope designed for precise signal analysis and quick setup, ensuring seamless performance in demanding environments.
Buy Keysight DSOX1202GDSTDEMO now and experience unmatched reliability and advanced signal analysis tools for professional testing and education.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES DSOX1202GDSTDEMO?
You can click on the BUY or RFQ button to purchase DSOX1202GDSTDEMO from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part DSOX1202GDSTDEMO?
You can download the DSOX1202GDSTDEMO datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of DSOX1202GDSTDEMO?
KEYSIGHT TECHNOLOGIES
