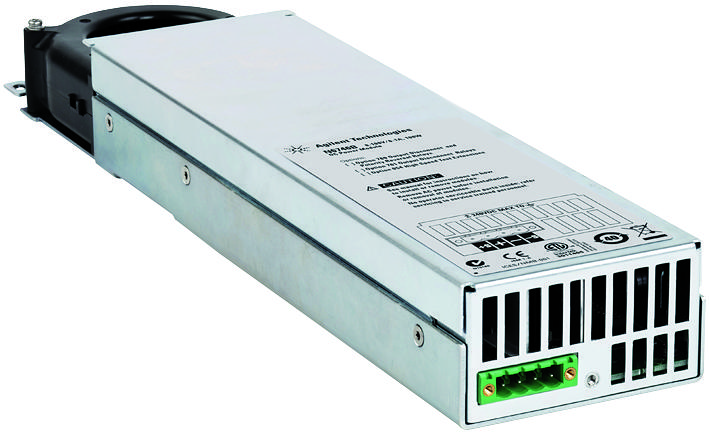

KEYSIGHT TECHNOLOGIES N6746B Programmable Power Module
The Keysight N6746B is a compact, programmable DC power module rated at 100V, 1A, and 100W. It offers adjustable voltage and current, measurement capabilities, and built-in protection. Designed for automated test equipment systems in R&D, design validation, and manufacturing, this modular power supply can be configured with up to four outputs in a 1U rack space. Its flexible design allows for mixing modules to optimize power and performance for various testing needs. Features include fast command processing, high output speeds, and connections via GPIB, LAN, or USB. Fully LXI Class C compliant, it suits critical electronics testing and power management.
KEYSIGHT TECHNOLOGIES N6746B Programmable Power Module Specifications:
- Voltage Range: 0 V to 100 V
- Current Range: 0 A to 1 A
- Power Rating: 100 W
- Measurement Accuracy: 0.1% + 20 mV (voltage), 0.15% + 20 mA (current)
- Ripple & Noise: 14 mV p-p/3 mV rms
- Output Disconnect Relays: Yes (option 761)
- Polarity Reversal Relays: Yes (option 760)
- Connectivity: GPIB, LAN (10/100 Base-T), USB 2.0
- Compliance: LXI Class C
- Dimensions: Typical height 44.45 mm, width 432.5 mm, depth 585.6 mm
- Control: Front panel, SCPI commands, web interface
- Protection: Over-voltage, over-current, over-temperature
Buy the Keysight N6700 – Reliable Power Modules for Industrial Applications
Purchase the Keysight N6746B power module online today and upgrade your test systems with reliable, high-accuracy DC power sourcing. Its compact design, adjustable voltage and current, and built-in protections make it ideal for electronics testing, automotive, and industrial applications. With universal connectivity via GPIB, LAN, and USB, it integrates seamlessly into your automation setup. Supporting LXI Class C standards, it ensures compliance and safety during critical testing operations. Get your N6746B now for improved throughput and stability in your R&D and manufacturing processes.
Order your Keysight N6746B programmable power module today and enhance your automated test systems with precise, flexible DC power sourcing.
