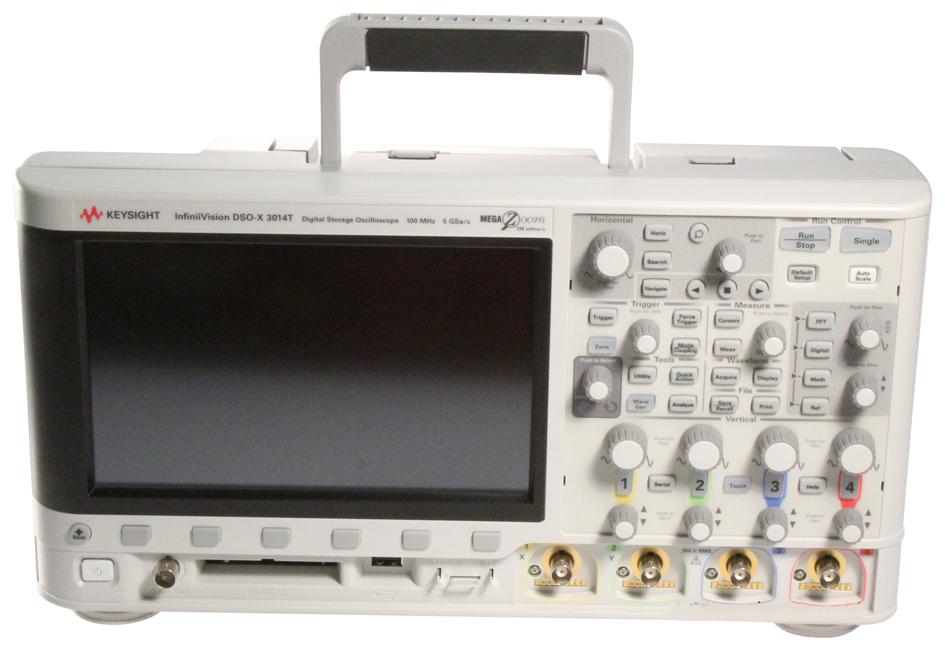

KEYSIGHT TECHNOLOGIES DSOX3014T Advanced Oscilloscope
The 3000T X-Series oscilloscope builds upon the revolutionary features of its predecessor by adding a 8.5-inch capacitive touch screen and a user interface optimized for touch operation. It features the exclusive InfiniiScan Zone touch trigger for precise triggering, along with an industry-leading update rate of 1 million waveforms per second, ensuring detailed signal observation and issue detection. This model also includes enhanced analysis capabilities, facilitating faster problem resolution. Its versatile design supports a wide range of applications such as maintenance and repair, test and measurement, and system monitoring. Key features include analog, digital, and frequency domain correlation with gated FFT, serial decoding, and a six-in-one instrument integration. It comes with a standard 3-year calibration cycle.
KEYSIGHT TECHNOLOGIES DSOX3014T Advanced Oscilloscope Specifications:
- Display: 8.5-inch capacitive touch TFT LCD (800 x 480 pixels)
- Bandwidth: 350 MHz
- Sample Rate: 5 GSa/s per channel
- Memory Depth: 4 Mpts standard, segmented memory options available
- Waveform Update Rate: > 1,000,000 wfms/sec
- Input Channels: 2 analog, 16 digital (MSO upgrade supported)
- Vertical Sensitivity: 1 mV/div to 5 V/div (models vary)
- Input Impedance: 1 MΩ (standard probe 10:1, 500 MHz)
- Trigger System: Zone touch, edge, pulse width, runt, pattern, video, serial protocols
- Serial Protocols Supported: I2C, SPI, RS232/UART, CAN, LIN, SENT, ARINC 429, MIL-STD 1553, CAN-FD, CXPI, FlexRay, USB-PD
- FFT Analysis: Gated FFT, peak search, max/min hold, averaging
- Mathematical Functions: Add, subtract, multiply, divide, differentiate, integrate, FFT, Ax + B, filters
- Power Measurement: Optional analysis modules
- Dimensions: 381 mm x 204 mm x 142 mm
- Weight: 4.0 kg
- Calibration Cycle: 3 years
Buy the Keysight DSOX3014T – Reliable Oscilloscope for Industrial Applications
Get the Keysight Advanced Oscilloscope with 8.5-inch capacitive touch display, industry-leading 1 million wfms/sec update rate, serial decoding, gated FFT, and versatile measurement functions. Perfect for troubleshooting, testing, and maintenance across various industries. Shop online now to ensure your projects benefit from fast, reliable, and detailed signal analysis, enabling quicker problem solving and improved productivity with just a few clicks.
Order your Keysight Series DSOX3014T today and experience unmatched detail with fast, precise measurements for your engineering projects.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES DSOX3014T?
You can click on the BUY or RFQ button to purchase DSOX3014T from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part DSOX3014T?
You can download the DSOX3014T datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of DSOX3014T?
KEYSIGHT TECHNOLOGIES
