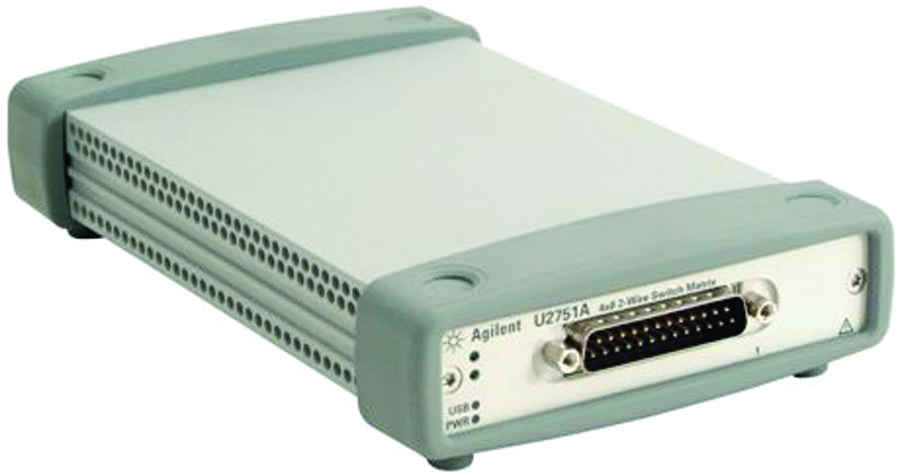

KEYSIGHT TECHNOLOGIES U2751A USB Modular Switch Matrix
The Keysight U2751A USB Modular Switch Matrix provides a flexible connection system that allows multiple instruments to be connected simultaneously to different points on the device under test. It features a 4x8 2-wire matrix configuration, supports a maximum voltage of 42V and current of 2A when used standalone, and offers a switching time of up to 4 milliseconds. The device includes a DB25 connector and supports high-speed USB 2.0 with the USBTMC-USB488 standard, compatible with Microsoft Windows operating systems. It offers both standalone and modular functionality, making it suitable for applications in sensing and instrumentation, signal processing, and test & measurement environments.
KEYSIGHT TECHNOLOGIES U2751A USB Modular Switch Matrix Specifications:
- Channels/ configuration: 4x 8, 2-wire
- Switch type: Armature latching
- Max working voltage: 42 VDC/35 Vrms standalone, 180 VDC/180 Vrms modular
- Max transient voltage: 300 Vrms
- Switch current: 2A
- Power: 60 W, 62.5 VA
- Bandwidth: 45 MHz without terminal block, 30 MHz with terminal block
- Insertion loss: 0.2 dB at 100 kHz, <2dB at 1MHz, <4.5dB at 45 MHz
- Crosstalk at terminal block: -70 dB at 300 kHz, -60 dB at 1 MHz, -35 dB at 20 MHz, -30 dB at 45 MHz
- Relay life: 100 million cycles no load, 10 million with 10V/100mA, 100k related load
- Open/close time: 4ms
- Size: 120mm x 183mm x 44mm with bumpers
- Weight: 480g with bumpers, 428g without
- Environment: 0°C to +50°C, 20%-85% RH, altitude up to 2000m
- Compliance: IEC 61010-1, UL 61010-1, CSA, IEC 61326-1
- Connector: DSub 25 male
- Power: +12 VDC, 2A maximum
- Supported OS: Windows XP, Vista, 7 (32/64-bit)
Buy the Buy Keysight U2751A USB Modular Switch Matrix Part Number U2751A Online
Discover the convenience of purchasing the Keysight U2751A USB Modular Switch Matrix online. Engineered for precision and flexibility, this switch matrix supports a 4x8 2-wire configuration, high-speed USB 2.0, and is compatible with Windows OS. Its modular design allows easy expansion, ideal for automated testing, instrumentation, signal processing, and complex measurement setups. With a maximum voltage of 42V and 2A per channel, it offers reliable switching with minimal crosstalk and fast switching times of just 4 milliseconds. Get your high-performance switch matrix now for seamless integration into your testing environment.
Order your Keysight U2751A USB Modular Switch Matrix today and experience reliable, flexible switching for high-precision test applications.
