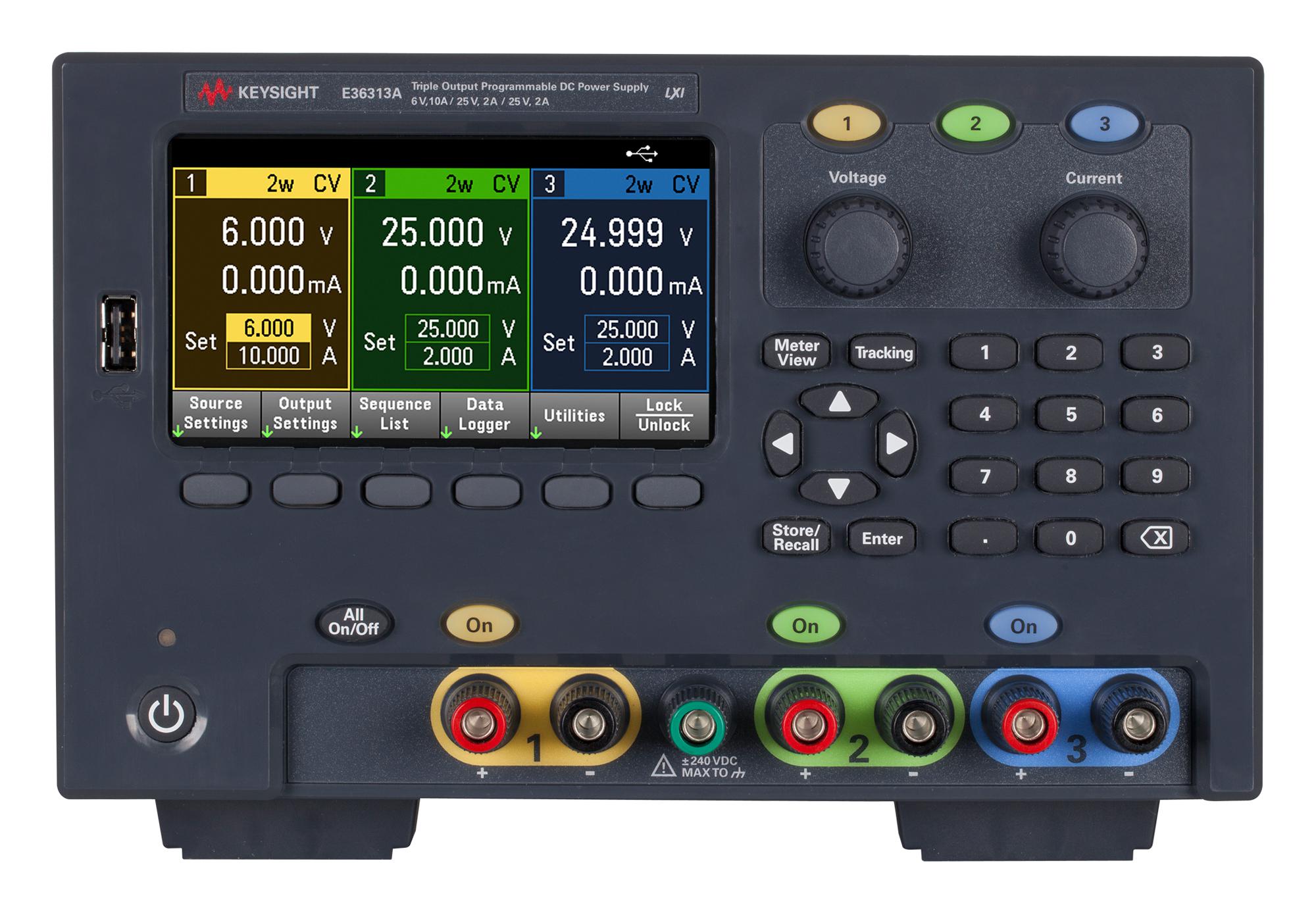

KEYSIGHT TECHNOLOGIES E36313AGPB Triple Output Power Supply
The Keysight Technologies E36313A/GPB is a triple output programmable DC power supply from the E36300 series. It offers a power output of 160W with three channels: Channel 1 provides 0-6V/0-10A, while Channels 2 and 3 provide 0-25V/0-2A each. The power supply features high accuracy with 0.01% load and line regulation, and maintains steady output despite power line and load variations. It includes a user-friendly 4.3-inch color display that shows voltage and current for all channels simultaneously, with color-coded channels for easy setup. The device supports connectivity options such as USB 2.0, LAN, and GPIB, and employs SCPI programming for automation. Protection features safeguard the device under test, and the supply complies with safety standards like UL 61010-1. It is suitable for test and measurement applications requiring reliable, precise DC power sources.
KEYSIGHT TECHNOLOGIES E36313AGPB Triple Output Power Supply Specifications:
- Power output: 160 W
- DC output channels: 1 (0–6 V / 0–10 A), 2 and 3 (0–25 V / 0–2 A each)
- Load regulation: 0.01% + 2 mV (voltage); 0.01% + 250 μA (current)
- Line regulation: 0.01% + 1 mV (voltage); 0.01% + 250 μA (current)
- Output ripple and noise: < 1 mVrms / 5 mVp (normal mode)
- Accuracy (12 months): ±0.03% voltage, ±0.04% current
- Remote sensing: 4-wire over rear terminals
- Protection features: Over Voltage, Over Current, Over Temperature
- Connectivity: USB 2.0, LAN, GPIB (optional)
- Display: 4.3-inch color LCD with simultaneous channel readout
- Dimensions: 367 x 145 x 216 mm
- Weight: 9.8 kg
- Safety standards: UL 61010-1
Buy the Keysight E36313A – Reliable DC Power Supply for Industrial Applications
Enhance your testing capabilities with the Keysight E36313A triple output programmable DC power supply. Featuring 160W power, high accuracy, and versatile connectivity options like USB, LAN, and GPIB, it ensures reliable power for precise measurement tasks. Its 4-wire remote sensing improves voltage regulation at the device under test, while protection features safeguard your equipment. The intuitive 4.3-inch color display and powerful SCPI programming interface streamline operation, boosting productivity. Ideal for testing, R&D, and manufacturing environments requiring consistent, accurate DC power sources.
Buy Keysight E36313A now and experience unmatched reliability and performance in your test and measurement setups.
