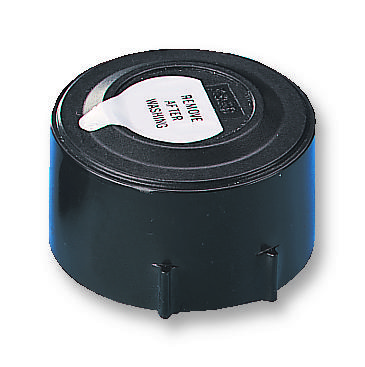

KINGSTATE KPEG500 Piezo Indicator
The KPEG500 piezo audio indicator is designed for industrial signaling applications, offering a resonant frequency of 25.405 kHz and a sound pressure level minimum of 104 dB at 30cm. Operable within 5 to 13 VDC, it consumes up to 60 mA at 12VDC, ensuring efficient power usage. The device features a rugged ABS UL-94 V-0 housing measuring 49.1mm x 28.9mm, weighs approximately 275 grams, and is environmentally protected under RoHS standards. Suitable for various environments, it maintains reliable operation from -20°C to +85°C and storage temperature up to 95°C, making it ideal for industrial alarms and alert systems.
KINGSTATE KPEG500 Piezo Indicator Specifications:
- Resonant Frequency: 25.405 kHz
- Operating Voltage Range: 5-13 VDC
- Current Consumption: Max. 60 mA at 12VDC
- Sound Pressure Level: Min. 104 dB at 30cm, 85dB at 3 meters at 12VDC
- Rated Voltage: 12 VDC
- Tone: Continuous
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -40°C to +95°C
- Dimensions: 49.1mm x 28.9mm (see appearance drawing)
- Weight: 275 grams
- Material: ABS UL-94 V-0, High Heat
- Terminal: Pin type with gold plating
- Protection Regulation: RoHS compliant
Buy the Kingstate KPEG500 – Reliable Piezo Audio Indicator for Industrial Applications
Order the Kingstate KPEG500 piezo audio indicator online today to enhance your industrial signaling and alarm systems. Crafted from durable ABS UL-94 V-0 material, it offers reliable performance with a resonant frequency of 25.405 kHz, producing a sound pressure level of at least 104 dB. Operable within 5-13 VDC and consuming up to 60 mA at 12VDC, this indicator is designed for rugged environments. Its compact size of 49.1mm x 28.9mm and environmental protection compliance ensure long-term dependable operation. Perfect for industrial alarms, alert systems, and OEM applications, it installs easily and is built to meet rigorous standards for durability and performance.
Get Kingstate KPEG500 today—built for precision and long-lasting durability in industrial signaling systems.
Frequently Asked Questions
Where can I buy KINGSTATE KPEG500?
You can click on the BUY or RFQ button to purchase KPEG500 from an authorized KINGSTATE distributor.
How do I troubleshoot issues or seek technical support for part KPEG500?
You can download the KPEG500 datasheet or visit the KINGSTATE website for support.
Who is the manufacturer of KPEG500?
KINGSTATE
