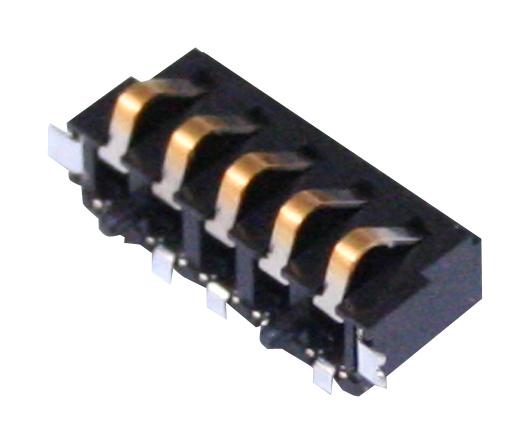

KYOCERA AVX 009155002541006 Right Angle Battery Connector
The KYOCERA AVX 009155002541006 right-angle battery connector is designed for compact and portable applications. This connector offers a low profile and a 2.5mm pitch, making it ideal for mobile phones, digital music players, and other handheld devices. It boasts a 3A current rating and utilizes beryllium copper contacts for enhanced performance. The connector's unique design minimizes its profile while maintaining functional stability, and its selective gold plating ensures 5000 mating cycles. It is RoHS compliant and features a full 3 amp current rating and high-temperature plastic for soldering.
KYOCERA AVX 009155002541006 Right Angle Battery Connector Specifications:
- Current Rating: 3 Amp / Contact
- Voltage Rating: 125 VAC
- Operating Temperature: -40ºC to +125ºC
- Insulator Material: Glass-Filled Nylon 46; UL94 HB
- Contact Material: Beryllium Copper
- Plating: Gold over Nickel
- Durability: 5000 Cycles
- Contact Force: 140 Grams at 1.50 Deflection
- Conplanarity: 0.10MM Maximum
- Pitch: 2.5mm
Buy the 009155002541006 KYOCERA AVX Right Angle Battery Connector | myMectronic
Securely purchase the KYOCERA AVX 009155002541006 right-angle battery connector for your next project.
