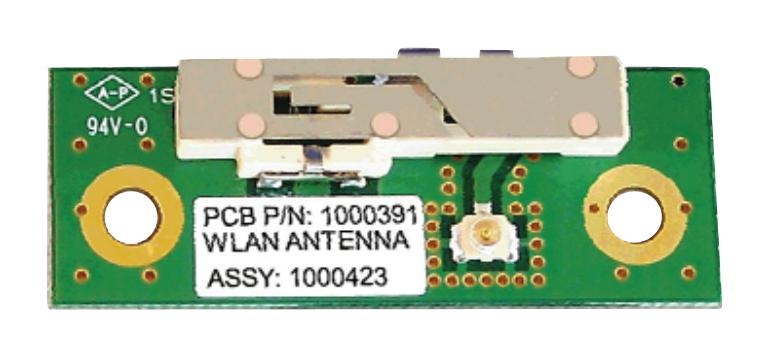

KYOCERA AVX 1000423 WLAN antenna
The Prestta WLAN embedded antenna by Ethertronics is a high-performance, compact antenna designed for 2.4/4.9/5.2/5.8 GHz Wi-Fi applications including 802.11 a/b/g/n and Japan standards. It features patented Isolated Magnetic Di-pole (IMD) technology, providing superior RF performance, enhanced range, and signal stability with minimal interference. Its small form factor allows versatile placement in various devices such as notebooks, access points, and industrial handhelds, supporting rapid deployment and regulatory compliance while ensuring robust connectivity and improved RF efficiency for advanced wireless systems.
KYOCERA AVX 1000423 WLAN antenna Specifications:
- Dimensions: 26.7 x 5.0 x 7.1 mm (Antenna); 40.0 x 15.0 x 1.2 mm (PCB)
- Peak Gain: -0.6 dBi to 4.5 dBi depending on frequency
- Average Efficiency: 55% to 75%
- VSWR Match: Max 3.0:1 at 2.4 GHz, 2.5:1 at others, 1:1 at 5 GHz
- Feed Point Impedance: 50 Ω unbalanced
- Cable Lengths: 150 mm, 300 mm, 450 mm, 600 mm available
- Weight: 1.69 g
- Operating Frequency: 2.39-2.49 GHz, 4.9-5.1 GHz, 5.15-5.35 GHz, 5.70-5.90 GHz
- Technological: Isolated Magnetic Dipole (IMD) high-performance antenna technology
- Connector: U.FL (custom cable length options available)
- Compliance: European RoHS Directive 2002/95/EC
Buy the Ethertronics 1000423 – Reliable WLAN for Industrial Applications
Enhance your wireless projects with the Ethertronics WLAN embedded antenna. Designed for 2.4 GHz and 5 GHz Wi-Fi standards, it offers high efficiency, robust signal strength, and versatile placement options. Its compact size ensures easy integration into notebooks, access points, and industrial devices, supporting rapid development and regulatory compliance. Trusted by industry leaders, this antenna ensures reliable connectivity, longer range, and minimal interference, making it the ideal choice for achieving optimal wireless communication performance in various applications.
Order your Ethertronics Series1000423 embedded WLAN antenna today and enhance your device connectivity with superior RF performance and flexible design options.
Frequently Asked Questions
Where can I buy KYOCERA AVX 1000423?
You can click on the BUY or RFQ button to purchase 1000423 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 1000423?
You can download the 1000423 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 1000423?
KYOCERA AVX
