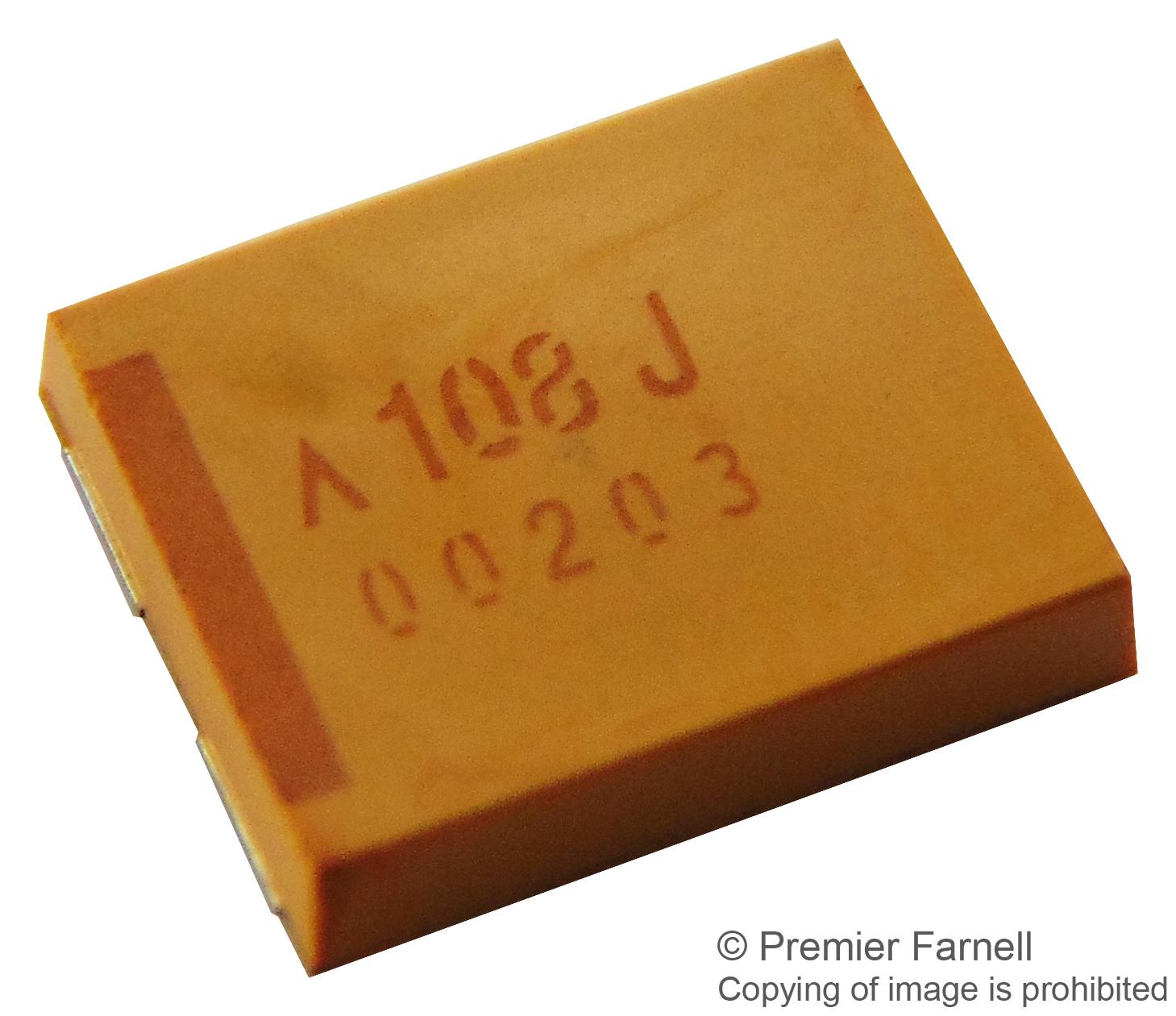

KYOCERA AVX TCNO156M010R0500 Conductive Polymer Capacitor
The product is a high-energy conductive polymer chip capacitor designed for surface-mount applications. It features high volumetric efficiency, low ESR, and a benign failure mode under recommended use conditions. Suitable for power backup, industrial alarms, and high-density PCB layouts, it operates within a temperature range of -55°C to +125°C. Available in multiple case sizes, this capacitor provides reliable performance with a rated voltage of 6.3V to 50V and capacitance values from 1.0 µF to 1500 µF. It complies with RoHS and is compatible with 260°C reflow soldering processes.
KYOCERA AVX TCNO156M010R0500 Conductive Polymer Capacitor Specifications:
- Capacitance range: 1.0 µF to 1500 µF
- Rated Voltage: 6.3V, 10V, 16V, 20V, 25V, 35V, 50V
- Temperature Range: -55°C to +125°C
- Leakage Current: 0.1CV
- Series Impedance: 0.10/0.20Ω at 100kHz
- Reliability: 1% per 1000 hours at 85°C, Vp with 0.10/0.20Ω impedance
- Dimensions (mm): varies by case size, e.g., 3.50 x 2.80 for 3528-10
- LC and ESR Ratings: up to 600 mA RMS current, ESR in mOhms
- RoHS compliant, 260°C reflow compatible, lead-free
- Available in case sizes: 1210, 2017, 2312, 2917, 7343
Buy the AVX Series J-CAP Conductive Polymer Capacitor: TCNO156M010R0500
Purchase the AVX conductive polymer capacitor online today and benefit from high energy density, exceptional reliability, and low ESR. Ideal for power backup, industrial alarms, and space-constrained designs, this surface-mount component offers wide temperature operation from -55°C to +125°C. It features high volumetric efficiency, RoHS compliance, and 260°C reflow compatibility, ensuring seamless integration. Order now to enhance your circuit's performance with a proven, durable capacitor designed for demanding applications and reliable long-term operation.
Buy AVX TCNO156M010R0500 high-voltage polymer capacitor now and experience unmatched reliability and performance for high-density power applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX TCNO156M010R0500?
You can click on the BUY or RFQ button to purchase TCNO156M010R0500 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part TCNO156M010R0500?
You can download the TCNO156M010R0500 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of TCNO156M010R0500?
KYOCERA AVX
