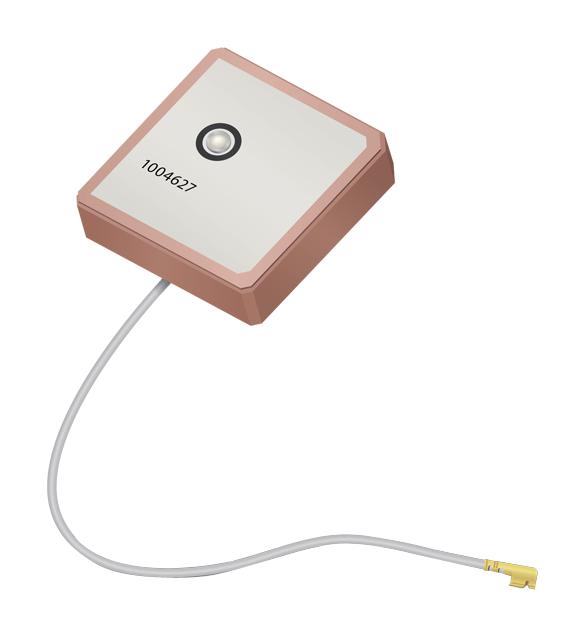

KYOCERA AVX 1004627 GPS/GLONASS Antenna
The GPS/GLONASS Patch Antenna with Cable from Ethertronics offers high performance for tracking, smart home, automotive, healthcare, and industrial applications. It features a compact 25 x 25 x 5.3 mm size, with a 72 mm gray coax cable and IPEX MHF3 connector. Designed to meet stringent regulatory standards, it provides peak gains of 3.7 dBi and 3.0 dBi at GPS and GLONASS frequencies, respectively. Its robust design ensures reliable signal reception with efficiencies of 60% and 36%, suitable for embedded and mobile device integrations.
KYOCERA AVX 1004627 GPS/GLONASS Antenna Specifications:
- Size: 25.0 x 25.0 x 5.3 mm
- Cable: 72 mm gray coax with IPEX MHF3 connector
- Frequency: 1575 & 1602 MHz
- Peak Gain: 3.7 dBi (GPS), 3.0 dBi (GLONASS)
- Gain at Zenith: 3.59 dBic (GPS), 1.04 dBic (GLONASS)
- Axial Ratio: 1.0 dB (GPS), 8.0 dB (GLONASS)
- Efficiency: 60% (GPS), 36% (GLONASS)
- VSWR: < 2.071 (GPS), < 3.071 (GLONASS)
- Polarization: R.H.C.P
- Impedance: 50 Ω
- Mounting: Drop-in (Adhesive)
- Weight: 6.8 grams
- Operating Frequency: 1.575/1.602 GHz
- Connector: IPEX MHF3
- Mechanical Dimensions: 25 x 25 mm with 5.3 mm height
- Certifications: RoHS compliant
Buy the Ethertronics 1004627 – Reliable GPS/GLONASS Antenna for Industrial Applications
Get the Ethertronics GPS/GLONASS Antenna with Cable today and enhance your device’s tracking capabilities. Compact, reliable, and easy to install with a drop-in adhesive mount, it delivers high efficiency at 1.575 and 1.602 GHz frequencies, ensuring precise positioning in automotive, industrial, and healthcare applications. Its robust design meets RoHS standards, making it an ideal choice for device manufacturers seeking cost-effective, high-performance GNSS antenna solutions. Order online now for fast delivery and seamless integration into your products.
Buy Ethertronics 1004627 now and experience unmatched reliability and high-performance GPS/GLONASS signal reception in your industrial and tracking devices.
