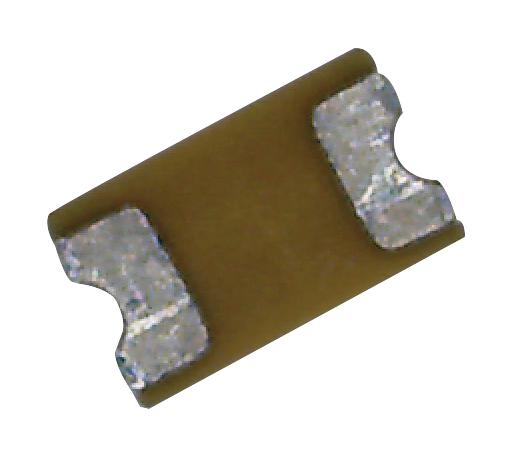

KYOCERA AVX HLC021R5BTTR High Current Inductor
The MLO High Current Inductor is a low-profile, surface-mount component suitable for mobile, satellite, GPS, and collision avoidance applications. Utilizing innovative multilayer organic technology, it offers higher current handling—up to 50% more compared to similar multilayer ceramic inductors—while maintaining high Q and stability at high frequencies. The 0402 size makes it ideal for compact designs. It features RoHS-compliant Sn finish, expands matched to PCB, and is tested to JEDEC and MIL standards, supporting operation from -55°C to +125°C with a high SRF of up to 2.2 GHz.
KYOCERA AVX HLC021R5BTTR High Current Inductor Specifications:
- Case Size: 0402 (1.00±0.10 mm x 0.58±0.075 mm)
- Operating Temperature: -55°C to +125°C
- SRF: Up to 2.2 GHz
- Maximum DC Resistance: 35 mΩ
- Inductance Range: 0.2 nH to 33 nH (variable depending on model)
- Tolerance: ±0.2 nH, ±0.5 nH, or specified as per model
- Termination Finish: RoHS compliant Sn
- Maximum Current Handling: up to 2.2 A depending on model
- Q Factors: Ranges from 20 to 49 at various test frequencies
- Package: Tape and reel available
- Electrical Performance: High Q, high SRF, low parasitics, suitable for high frequency applications
- Manufactured to JEDEC and MIL standards for reliability
Buy the Buy AVX High Current Inductor Part Number HLC021R5BTTR Online
Purchase the AVX high current organic surface-mount inductor online now. Designed for high frequency applications such as mobile communications, GPS, satellite, and collision avoidance, it offers high Q, high SRF, and excellent heat dissipation. Compact 0402 size with low parasitics, RoHS compliance, and reliable performance tested to JEDEC and MIL standards. Improve your device's efficiency and stability by ordering today for fast delivery and professional quality assurance.
Order your AVX SeriesHLC021R5BTTR high current inductor today and ensure reliable performance in your high-frequency, compact electronic projects.
Frequently Asked Questions
Where can I buy KYOCERA AVX HLC021R5BTTR?
You can click on the BUY or RFQ button to purchase HLC021R5BTTR from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part HLC021R5BTTR?
You can download the HLC021R5BTTR datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of HLC021R5BTTR?
KYOCERA AVX
