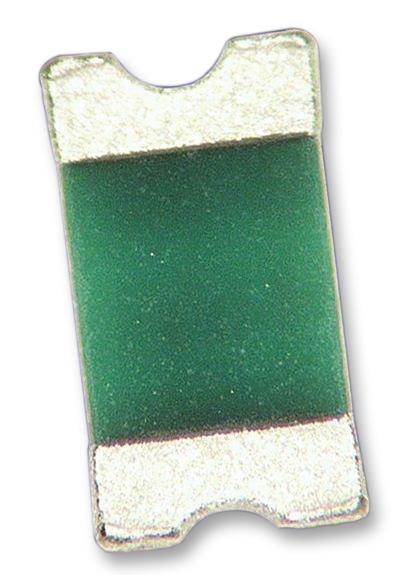

KYOCERA AVX ML03V10R3AAT2A RF Capacitor
Multi-Layer Organic Capacitors utilize patented multilayer low loss organic (MLO™) technology, offering low ESR, high SRF, and tight tolerance for RF applications. These polymer-based capacitors with high-conductivity copper interconnects are fabricated on large-area substrates, enabling cost-effective production and excellent frequency performance above one GHz. They feature expansion-matched reliability to printed circuit boards, making them ideal for RF power and low noise amplifiers, filter networks, and instrumentation. Certified RoHS compliant, they undergo rigorous environmental and mechanical testing for durability and stability in demanding conditions, ensuring high-quality performance in sophisticated electronic systems.
KYOCERA AVX ML03V10R3AAT2A RF Capacitor Specifications:
- Case size: 0603; Length: 0.063 + 0.004 inches (1.600 + 0.102 mm); Width: 0.033 + 0.004 inches (0.838 + 0.102 mm); Thickness: 0.025 + 0.004 inches (0.635 + 0.102 mm); Band width: 0.015 + 0.005 inches (0.381 + 0.127 mm); Castellation radius: 0.008 + 0.002 inches (0.203 + 0.051 mm)
- Capacitance: 0.4 pF to 15 pF; Tolerance: ±50%, ±250%, ±500%; Voltage ratings: 50V, 250V, 500V; Capacitance codes: 03, 14, 17, etc.; Dielectric absorption: 0.0015%; Temperature Coefficient: 230 ppm/°C; Operating temperature: -55°C to +125°C
- Materials: Organic polymer dielectric, copper interconnects; RoHS compliant; Lead-free; Mechanical robustness confirmed through solderability, leach resistance, and adhesion tests; Storage life: Minimum 12 months in original packaging; High reliability with standardized quality testing including JEDEC and MIL standards.
Buy the AVX Series RF Capacitor: ML03V10R3AAT2A
Enhance your electronic designs with our AVX Series RF Capacitor ML03V10R3AAT2A. Featuring low ESR, high self-resonance, and superior frequency response, this multilayer organic capacitor ensures reliable performance in RF power amplifiers, filters, and instrumentation. With strict quality controls, RoHS compliance, and proven durability through rigorous environmental and mechanical testing, it is ideal for demanding applications. Buy online now to benefit from fast delivery, competitive pricing, and the assurance of high-quality components for your advanced electronic projects.
Order your AVX Series RF Capacitor ML03V10R3AAT2A today and give your projects the dependable high-frequency stability they deserve.
Frequently Asked Questions
Where can I buy KYOCERA AVX ML03V10R3AAT2A?
You can click on the BUY or RFQ button to purchase ML03V10R3AAT2A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part ML03V10R3AAT2A?
You can download the ML03V10R3AAT2A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of ML03V10R3AAT2A?
KYOCERA AVX
