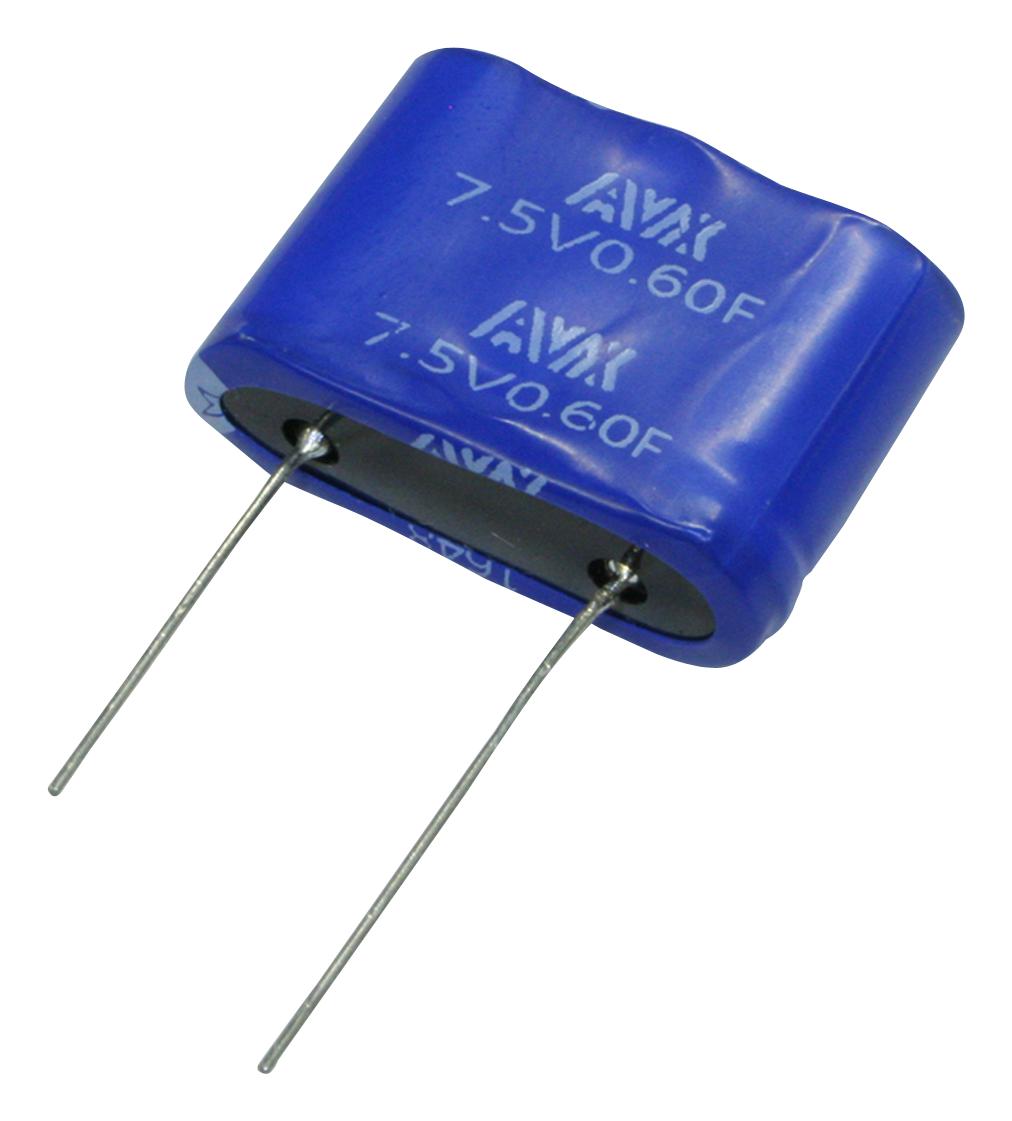

KYOCERA AVX SCMR18J604SSBA0 Supercapacitor Module
The SCM series consists of series-connected supercapacitor modules designed for high pulse power, low ESR, and low leakage current, suitable for energy harvesting, backup power, and pulse applications. They feature moisture-resistant plastic cases, are RoHS and Reach compliant, and support various soldering methods including wave and reflow. Operating temperature ranges from -40°C to +65°C or +85°C with voltage derating. They undergo rigorous testing for lifecycle, humidity, vibration, and temperature resilience, ensuring reliable performance in industrial, communication, and electronic devices. These supercapacitors provide extended backup, rapid energy pulses, and are compatible with hand, wave, and reflow soldering techniques, making them versatile for deployment in demanding environments.
KYOCERA AVX SCMR18J604SSBA0 Supercapacitor Module Specifications:
- Capacitance: 18 mF
- Diameter: 8 mm
- Length: 16 mm
- Maximum Operating Voltage: 5.4V
- Temperature Range: -40°C to +65°C (standard), up to +85°C with voltage derating
- Leakage Current: Approximately 0.0090 mA at 25°C
- ESR: Max 0.095 Ω at 1000Hz
- Charge/Discharge Cycle Life: 500,000 cycles at 25°C
- Storage Temperature: -40°C to +65°C, avoid high humidity, chemicals, and shocks
- Soldering: Suitable for hand, wave, reflow; max tip temperature 350°C, contact time <4 seconds
- Certifications: RoHS, Reach, UL810A
Buy the AVX Series SuperCapacitor: SCMR18J604SSBA0
Purchase the AVX Supercapacitor Module today and experience dependable energy storage for backup, pulse power, and energy harvesting. Designed with low ESR and moisture-resistant case, it ensures optimal performance across various applications. Its compatibility with different soldering techniques makes installation flexible and straightforward. With rigorous testing for temperature, humidity, and vibration resistance, this supercapacitor guarantees longevity and reliability. Whether upgrading existing systems or developing new electronics, this high-quality module offers the performance, durability, and compliance you need. Order now and enhance your device’s energy management capabilities.
Get AVX SCMR18J604SSBA0 today—built for high pulse power, long lifecycle, and reliable performance in industrial and electronic applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX SCMR18J604SSBA0?
You can click on the BUY or RFQ button to purchase SCMR18J604SSBA0 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part SCMR18J604SSBA0?
You can download the SCMR18J604SSBA0 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of SCMR18J604SSBA0?
KYOCERA AVX
