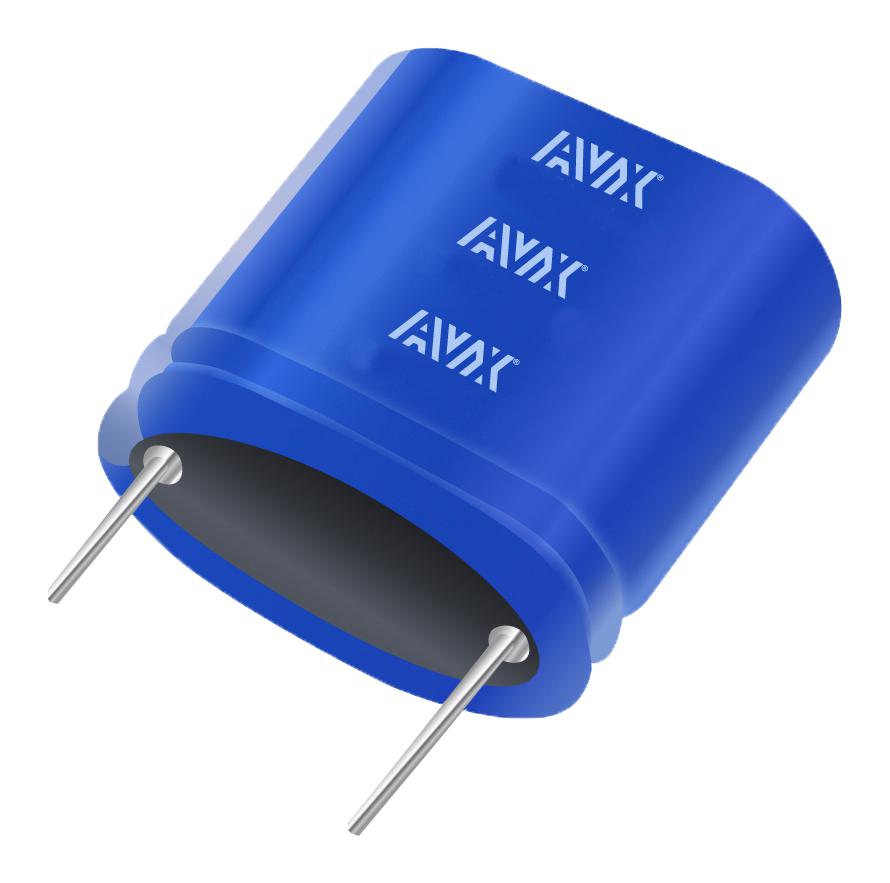

KYOCERA AVX SCMT22C505PRBA0 Super Capacitor Module
The SCMT22C505PRBA0 is a series-connected super capacitor module with a diameter of 22 mm and a length of 50 mm. It features a capacitance of 5.0 F, rated at 2.5 V, designed for pulse power applications, energy harvesting, UPS systems, and backup power. This module offers high pulse power capability, low ESR, and high reliability under extreme conditions. Suitable for industrial, wireless alarm systems, and remote metering, it provides extended backup times, longer device lifespan, and excellent performance in demanding electronic circuits. The module complies with RoHS and reaches standards for safety and sustainability.
KYOCERA AVX SCMT22C505PRBA0 Super Capacitor Module Specifications:
- Diameter: 22 mm
- Length: 50 mm
- Capacitance: 5.0 F
- Rated Voltage: 2.5 V
- Equivalent Series Resistance (ESR): Max 0.0052 Ohms at 1000Hz
- Peak Power: 243 W
- Energy Density: 1.68 Wh/kg
- Operating Temperature Range: -40°C to +85°C
- Leakage Current: Max 0.0052 mA
- Life Cycle Testing: 500,000 cycles with ESR < 2 times initial value
- Compliance: RoHS, Reach, Halogen Free
- Soldering Process: Compatible with reflow, wave, and hand soldering with precautions
Buy the Buy Enax Super Capacitor Part Number SCMT22C505PRBA0 Online
Order the Enax super capacitor module SCMT22C505PRBA0 online today to ensure your electronic systems benefit from high pulse power, low ESR, and long-term stability. Designed for industrial and backup applications, this 2.5V, 5.0F module guarantees extended backup time, reliable performance under extreme conditions, and compliance with RoHS standards. Easy to integrate with wave, reflow, or hand soldering processes, it provides the essential energy storage solution for advanced electronic devices, energy harvesting, and UPS systems. Shop now for fast delivery and seamless online purchasing experience.
Buy Enax SCMT22C505PRBA0 now and experience unmatched reliability and performance in pulse power and energy harvesting applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX SCMT22C505PRBA0?
You can click on the BUY or RFQ button to purchase SCMT22C505PRBA0 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part SCMT22C505PRBA0?
You can download the SCMT22C505PRBA0 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of SCMT22C505PRBA0?
KYOCERA AVX
