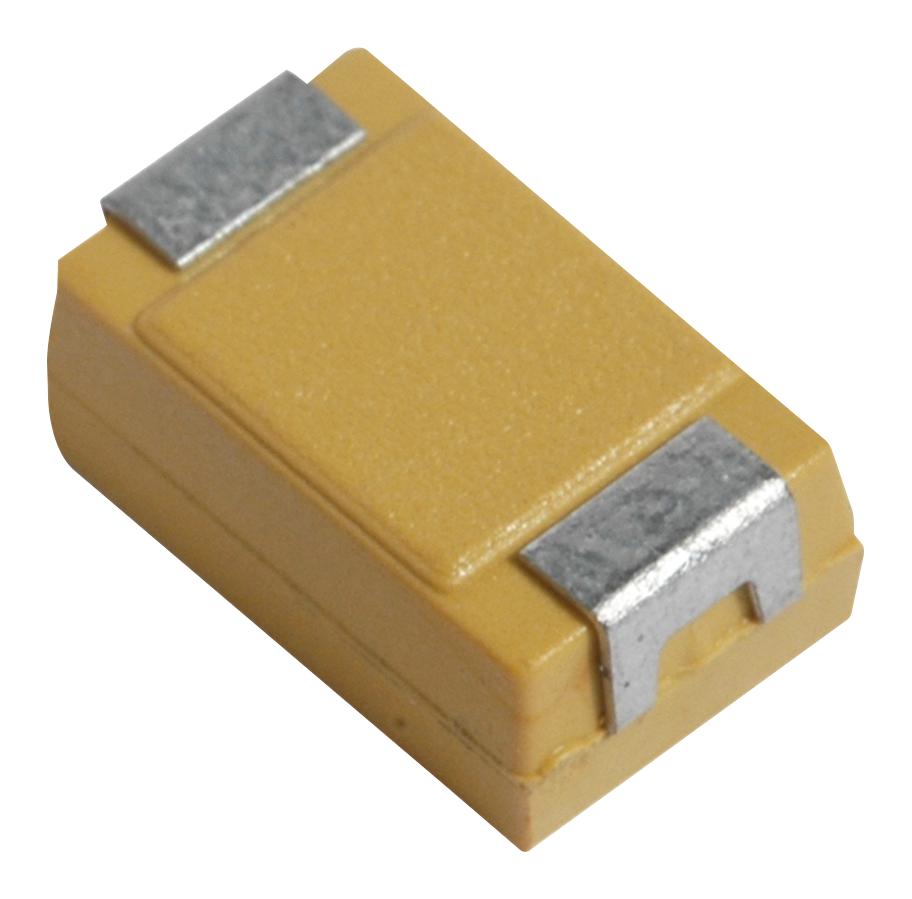

KYOCERA AVX TCJY107M020R0055 Conductive Polymer Capacitor
The conductive polymer solid electrolytic chip capacitor offers low ESR, high reliability, and excellent performance across a wide temperature range from -55°C to +125°C. This series features a variety of case sizes, rated voltages, and capacitance values suitable for industrial, automotive, and high-energy applications. The capacitors are lead-free, RoHS compliant, and capable of withstanding multiple reflow cycles at 260°C. Designed for demanding environments, they provide stable capacitance, low leakage currents, and high endurance, making them ideal components for power supplies, smart devices, and precision electronic circuits.
KYOCERA AVX TCJY107M020R0055 Conductive Polymer Capacitor Specifications:
- Capacitance: 107μF
- Rated Voltage: 20V
- Temperature Range: -55°C to +125°C
- ESR: Max. 70 mΩ at 100kHz RMS
- Leakage Current: ≤ 0.1CV or specified limit
- Endurance: 1,000 hours at 85°C with ≤ 20% capacitance change, and ESR within twice initial limit
- Reflow Compatibility: Up to 8 reflows at 260°C
- Case Sizes: Various, including 0805, 1206, 1210, 2220
- Lead-Free: Yes, RoHS compliant
- Storage Conditions: Store at -55°C to +125°C, stable for extended periods
- Reliability: Suitable for high-stress environments, high energy storage, automotive, and industrial applications
- Design Features: Conductive polymer electrode, low ESR, benign failure mode, RoHS and Beta Award compliant
- Physical Dimensions: Vary by size, typical length 2.0 mm to 10.0 mm, width 1.25 mm to 5.0 mm, height varies
Buy the AVX TCJY107M020R0055 – Reliable Conductive Polymer Capacitor for Industrial Applications
Secure your supply chain by purchasing the AVX Conductive Polymer Capacitor online today. Designed for high reliability, low ESR, and broad temperature resilience, this component ensures optimal performance in power management, industrial, and automotive applications. Easy to order with fast shipping, this capacitor’s robust features—including lead-free construction and multiple reflow capabilities—make it ideal for engineers and procurement specialists seeking dependable electronic components. Invest in quality electronics today and enjoy premier customer support and fast delivery for your projects.
Buy AVX TCJY107M020R0055 now and experience unmatched reliability and performance in demanding conditions.
