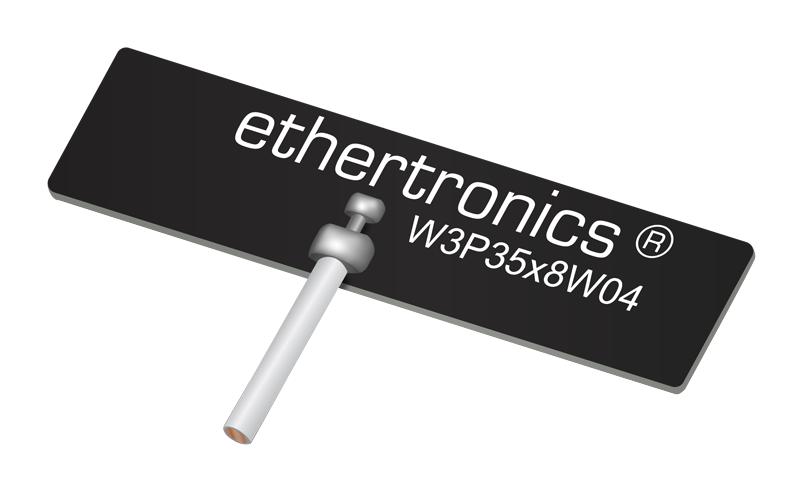

KYOCERA AVX W3P35X8W04U100D3B0A Embedded Wi-Fi Antenna
The embedded Wi-Fi antenna supports frequencies 2.4/5.0/6.0 GHz, ideal for Wi-Fi, Bluetooth, Zigbee, and WLAN applications. Compact with dimensions of 8.50 x 35.2 mm and weight only 0.3 grams, it features a 100 mm u.fl connector, RoHS compliance, and foam backing to minimize detuning. Designed for small, thin devices like access points, routers, and industrial equipment, it offers high efficiency, peak gain up to 5 dBi, and reliable wireless performance. Its robust design ensures faster data rates and improved network coverage in diverse operating environments.
KYOCERA AVX W3P35X8W04U100D3B0A Embedded Wi-Fi Antenna Specifications:
- Frequency Band: 2.40-2.48 GHz, 5.15-5.85 GHz, 5.925-7.125 GHz
- Standard Return Loss: <-15dB at 2.4 GHz, <-10 dB at 5/6 GHz, <6 dB overall
- Peak Gain: Up to 5 dBi at 5 GHz, 2.3 dBi at 2.4 GHz, 2.5 dBi at 6 GHz
- Efficiency: 70% at 2.4 GHz, 60% at 5 GHz, 65% at 6 GHz
- Impedance: 50 ohms unbalanced
- Dimensions: Length 8.50 + 0.15 mm, Width 35.20 + 0.15 mm, Thickness 0.40 mm
- Weight: 0.3 grams
- Cable Length: 100 mm
- Connector: u.fl compatible
- Material: PC/ABS plastic with foam backing
- RoHS compliant and suitable for small wireless devices
- Adhesive: 3M468MP available for mounting
- Connector orientation: UFL compatible, with options for up/down/left/right
Buy the Buy Ethertronics Wi-Fi Antenna Part Number W3P35X8W04-U100D3B0A Online
Enhance your wireless devices with the Ethertronics embedded Wi-Fi antenna, supporting 2.4/5/6 GHz frequencies. With a compact size of 8.50 x 35.2 mm and a lightweight of 0.3 grams, it features a 100 mm u.fl connector, foam backing to minimize detuning, and robust design for reliable wireless connections. Suitable for access points, routers, industrial devices, and smart home applications, it offers high efficiency, peak gain up to 5 dBi, and improved network coverage. Easy to mount with optional adhesive and RoHS compliant for environmentally friendly product integration.
Order your Ethertronics Series W3P35X8W04-U100D3B0A embedded Wi-Fi antenna today and enhance your wireless device performance with reliable, high-efficiency signal coverage.
Frequently Asked Questions
Where can I buy KYOCERA AVX W3P35X8W04U100D3B0A?
You can click on the BUY or RFQ button to purchase W3P35X8W04U100D3B0A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part W3P35X8W04U100D3B0A?
You can download the W3P35X8W04U100D3B0A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of W3P35X8W04U100D3B0A?
KYOCERA AVX
