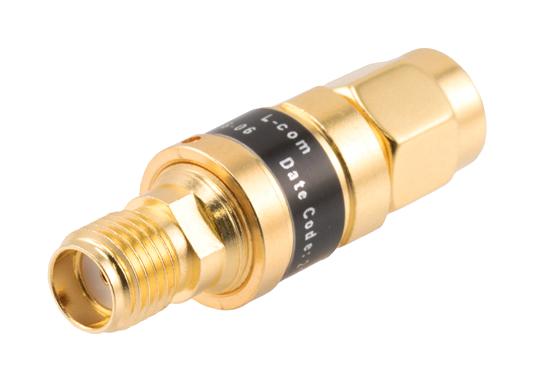

L-COM LCAT100606 RF Fixed Attenuator
The 2W/6 GB Fixed Attenuator with SMA male to SMA female connectors is a precision RF component designed to operate up to 18 GHz. It features a brass, gold-plated body for excellent conductivity and durability, with a nominal attenuation of 6 dB and an impedance of 50 Ohms. This attenuator can handle up to 2W of continuous power, making it suitable for instrumentation, prototyping, and calibration. Its compact size and reliable performance make it ideal for reducing signal levels to protect sensitive equipment and matching impedance in high-frequency applications.
L-COM LCAT100606 RF Fixed Attenuator Specifications:
- Frequency range: DC to 18 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 6 dB
- Attenuation accuracy: ±1.4 dB
- VSWR: 1.36:1
- Input Power, CW: 2 Watts
- Input Power, Peak: 500 Watts
- Operating Temperature Range: -55°C to +125°C
- Connector Type: SMA Male to SMA Female
- Body Material: Brass, Gold Plated
- Size: Length 1.18 inches (29.97 mm), Diameter 0.393 inches (9.98 mm)
- Weight: 0.022 lbs (9.98 g)
Buy the L-COM Series RF Attenuator 6 dB Brass Body: LCAT100606
Enhance your RF setups with the INFINITG Fixed Attenuator featuring 6 dB attenuation, operating up to 18 GHz. This brass, gold-plated SMA connectorized component handles 2W power, ensuring precise signal reduction for instrumentation, calibration, and testing. Its robust design offers excellent durability, minimal reflection with a VSWR of 1.36:1, and a broad temperature range from -55°C to +125°C. Optimize your high-frequency applications with this reliable, easy-to-install RF attenuator, ideal for professional and industrial environments.
Buy INFINITG 2W/6 GB Fixed Attenuator now and experience unmatched reliability and performance in high-frequency signal management.
Frequently Asked Questions
Where can I buy L-COM LCAT100606?
You can click on the BUY or RFQ button to purchase LCAT100606 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100606?
You can download the LCAT100606 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100606?
L-COM
