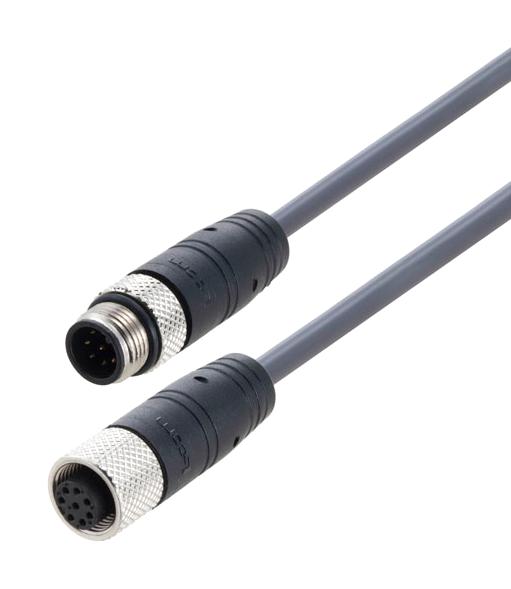

L-COM TRG884C6G3M Shielded Data Cable
The TRG884-C6G-3M is a shielded cable assembly featuring 26 AWG stranded tinned copper conductors with aluminum/polyester foil shielding and drain wire. It has a PVC gray jacket rated for 30 V AC/DC and operating temperatures from -25°C to +105°C. Designed for industrial and telecommunications applications, it offers IP67 ingress protection when mated, and flame resistance compliant with VW-1. The cable ensures durability against sunlight and moisture, making it suitable for environments requiring reliable electrical performance and environmental resistance.
L-COM TRG884C6G3M Shielded Data Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Size: 26 AWG
- Shielding: Aluminum/Polyester Foil, Drain Wire
- Jacket Material: PVC, Gray
- Jacket Diameter: 0.205 inches (5.20 mm)
- Voltage Rating: 30 V AC/DC
- Operating Temperature Range: -25°C to +105°C
- Ingress Protection: IP67 when mated
- Flame Rating: VW-1
- Min. Contact Gold Plating: 15 microns
- Material for Shell/Screw Nut: Brass, Nickel Plated
- Cable Lengths Available: 0.5 to 10 meters
- Application: Industrial, Telecom, Data Transmission
- Environmental Resistance: Sunlight, Moisture
- Connector Type: Shielded Female, 8 Positions A-Code
- Overall Cable Diameter: Approximately 0.205 inches
- UL Style: 2517
- Temperature Range: -25°C to +105°C
Buy the L-COM TRG884C6G3M – Reliable Shielded Data Cable for Industrial Applications
Secure your industrial and telecom wiring with the high-performance L-COM shielded data cable. Featuring a PVC gray jacket, 26 AWG stranded conductors, and aluminum/polyester foil shielding, it offers IP67 protection and operates from -25°C to +105°C. Designed for durability against sunlight and moisture, this cable ensures reliable data transmission in demanding environments. Easy to install and compatible with shielded female connectors, it provides excellent electrical performance and environmental resistance. Get your trusted shielded data cable online today for dependable project execution.
Order your L-COM TRG884C6G3M shielded cable today and ensure your industrial projects benefit from dependable, high-quality electrical connections.
