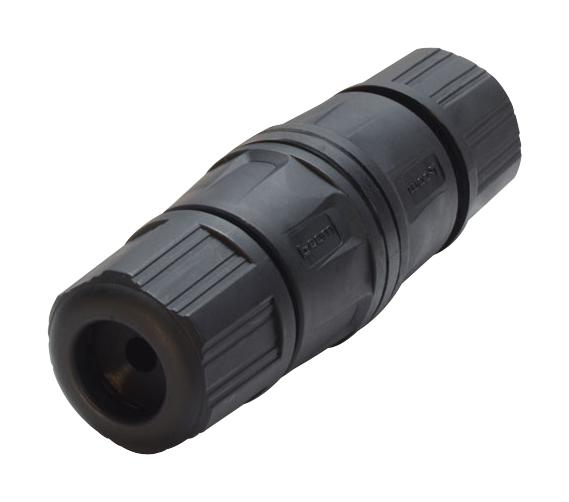

L-COM CGC5EFF Shielded Ethernet Connector
The CGC5EFF is an IP68-rated shielded RJ45 Ethernet connector designed for harsh environments. Made with durable materials including brass shield and silicone grommets, it features a robust PA66 housing with UL94V-0 flammability rating. The connector supports a maximum panel thickness of 0.175 inches and is tested for performance in water immersion up to 1 meter for 24 hours, ensuring reliable connectivity in industrial applications. Operating temperature ranges from -40°C to +80°C, making it ideal for outdoor and demanding settings.
L-COM CGC5EFF Shielded Ethernet Connector Specifications:
- Material: Brass shield, PA66 housing with UL94V-0 flammability rating
- Ingress Protection: IP68 fully assembled, water immersion up to 1 meter for 24 hours
- Operating Temperature: -40°C to +80°C
- Panel Thickness: Max 0.175 inches (4.5 mm)
- Grommet Material: Silicone, available in small and large sizes
- Connector Type: RJ45 IP68 shielded coupler
- Shield: Nickel plated
- Dimensions: Overall length approximately 30.70 mm, diameter 23.60 mm, panel cutout 6.00 mm in diameter
- Tested per L-COM specifications for durability and water resistance
- Certifications: UL listed, RoHS compliant
Buy the L-COM CGC5EFF – Reliable IP68 Shielded Ethernet for Industrial Applications
Enhance your industrial networking setup with the shielded Ethernet connector designed for demanding environments. The L-COM CGC5EFF offers IP68 protection for water and dust resistance, ensuring reliable data transmission even in harsh conditions. Its durable construction features a brass shield, silicone grommets, and a UL94V-0 rated PA66 housing that withstands extreme temperatures from -40°C to +80°C. Easy to install with a maximum panel thickness of 0.175 inches, this connector guarantees robust performance for outdoor and industrial applications. Purchase online today to secure a dependable connection solution.
Buy L-COM CGC5EFF now and experience unmatched water resistance and durability in industrial Ethernet connectivity.
Frequently Asked Questions
Where can I buy L-COM CGC5EFF?
You can click on the BUY or RFQ button to purchase CGC5EFF from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part CGC5EFF?
You can download the CGC5EFF datasheet or visit the L-COM website for support.
Who is the manufacturer of CGC5EFF?
L-COM
