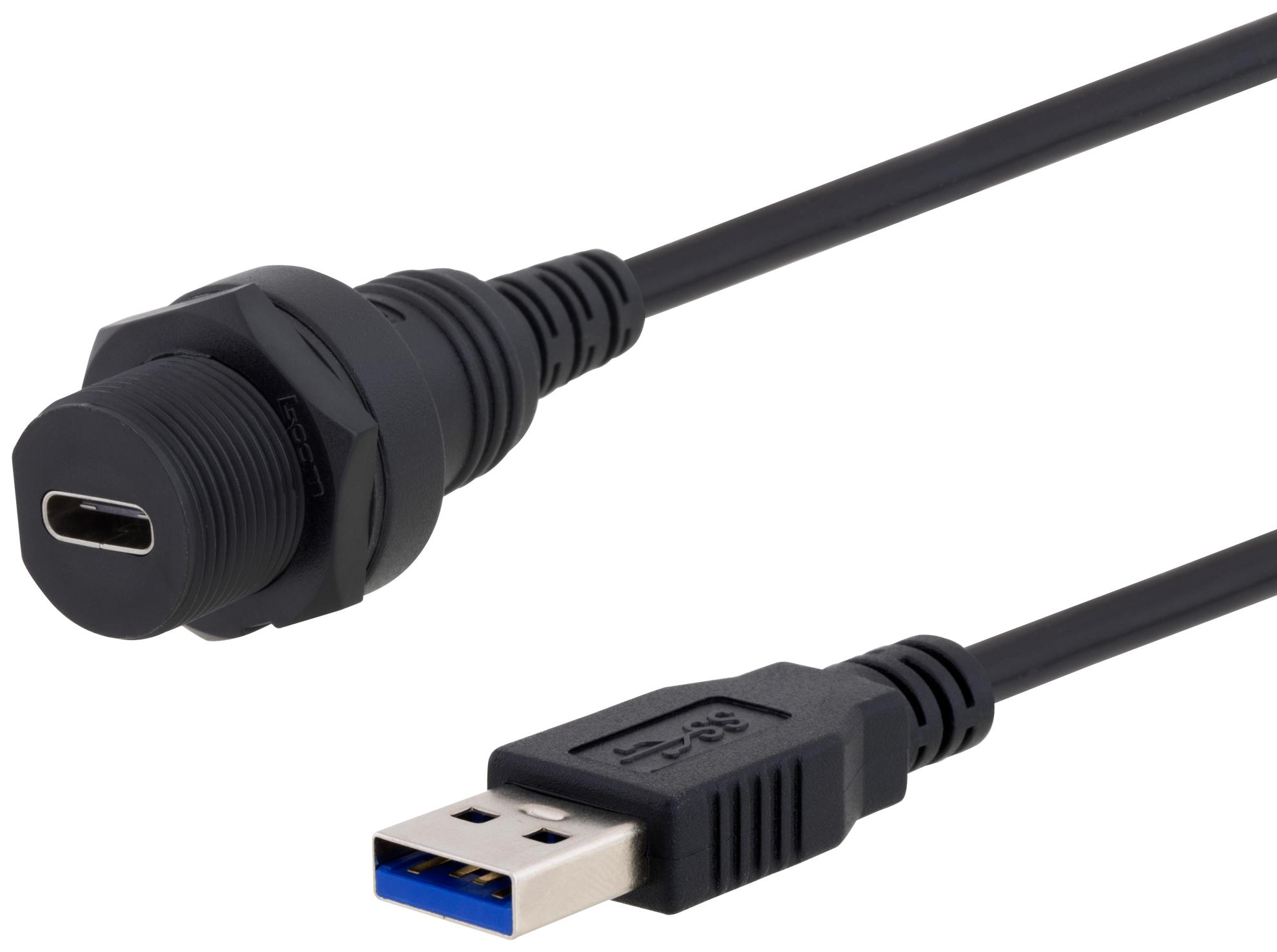

L-COM U3A000261M USB Waterproof Cable
This USB 3.0 Type A to Type C cable features waterproof construction with a durable PVC jacket rated IP67, UV resistance, and gold-plated contacts for reliable connectivity. It supports high-speed data transfer, with shielded twisted pairs totaling 26AWG and 32AWG conductors, ensuring minimal interference. The cable operates within a temperature range of -20°C to +80°C, and its robust design includes molded PVC components, shield termination, and a 360° shield connection for optimal performance in industrial and outdoor settings. Ideal for professional, industrial, and rugged applications requiring secure, waterproof connections.
L-COM U3A000261M USB Waterproof Cable Specifications:
- Connector Type: USB 3.0 Type A to Type C
- Waterproof Rating: IP67
- Jacket Material: PVC, black, UV resistant
- Contact Plating: Gold over nickel, 30 inches for Type A, 15 inches for Type C
- Conductors: 26AWG and 32AWG stranded tinned copper, shielded twisted pairs
- Shield: Aluminum/polyester shield, copper braid shield, shell shield braid
- Temperature Range: -20°C to +80°C
- Dimensions: Cable diameter approximately 0.165 inches (4.2mm)
- Design Features: Molded housing, 360° shield termination, IP67 ingress protection
- Compliance: UL94 V0 flammability
Buy the Buy L-COM USB 3.0 Type A to Type C Waterproof Cable Part Number U3A000261M Online
Order the L-COM USB waterproof cable now and enjoy superior waterproof connectivity rated IP67, with gold-plated contacts, shielded twisted pairs, and UV-resistant PVC jacket. Perfect for industrial, outdoor, or rugged applications, this cable ensures high-speed data transfer and secure connections even in challenging environments. Its robust design includes molded components and comprehensive shielding for maximum durability and interference protection. Shop online today and benefit from fast delivery, reliable quality, and professional-grade construction suitable for demanding technical setups.
Get L-COM USB 3.0 Type A to Type C waterproof cable today—designed for rugged durability and reliable high-speed data transfer in harsh environments.
