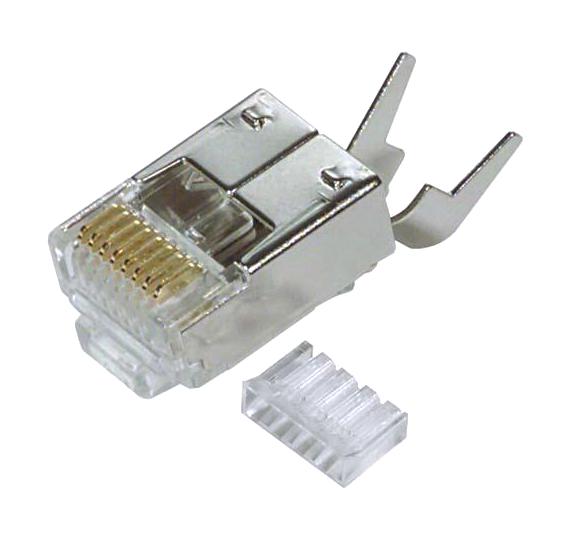

L-COM TDS8PC5 Shielded Ethernet Connector
The TDS8PC5 is an 8 x 8 shielded RJ45 plug with strain relief, designed for high-performance Ethernet connections in demanding EMI/RFI environments. It features a metallic strain relief for superior cable retention and a 360° shielding contact for optimal electromagnetic interference protection. Its short body with a load bar ensures easy insertion while meeting Category 5e twist requirements. The two-point contact design is compatible with both solid and stranded cables, improving shielded cable performance for professional networking and RF communication applications. Compliant with EIA-568 standards, it suits high-quality network installations with HTS2600 or HTS2500 crimp tools.
L-COM TDS8PC5 Shielded Ethernet Connector Specifications:
- Housing Material: Polycarbonate, UL94V-0
- Contacts Material: Phosphor Bronze with gold and nickel plating
- Shield/Strain Relief Material: Brass with nickel plating
- Contact Finish: Gold minimum 50 microinches, Nickel over 100 microinches
- Voltage Rating: 125 VAC maximum
- Current Rating: 1.5 Amps maximum
- Conductor Range: 24-26 AWG
- Max Conductor Insulation Diameter: 0.042 inches (1.07 mm)
- Operating Temperature: -40°C to +125°C
- Contact Style: 2 prong, right-angle shielded connector
- Termination Compatibility: Suitable for stranded and solid conductors
- Cable Range: 0.228 to 0.256 inches (5.79 to 6.50 mm) O.D.
- Certifications/Standards: EIA-568 Category 5e compliance
- Design Features: Metallic strain relief, 360° shielding contact, short body with load bar, compatible with HTS2600/HTS2500 crimp tools
Buy the Buy L-COM RJ45 Shielded Connector Part Number TDS8PC5 Online
Purchase the L-COM TDS8PC5 shielded Ethernet connector online today. Engineered for demanding EMI/RFI environments, it features a metallic strain relief and 360° shielding contact for optimal electromagnetic interference protection. Its compact design simplifies installation, and compatibility with solid or stranded cables ensures versatile use. Made with durable materials, it withstands operating temperatures from -40°C to +125°C. Perfect for professional networking, RF systems, and compliant with industry standards, ensuring performance and reliability in critical applications.
Get L-COM TDS8PC5 today—designed for professional Ethernet and RF communication connections with superior shielding and easy termination.
Frequently Asked Questions
Where can I buy L-COM TDS8PC5?
You can click on the BUY or RFQ button to purchase TDS8PC5 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TDS8PC5?
You can download the TDS8PC5 datasheet or visit the L-COM website for support.
Who is the manufacturer of TDS8PC5?
L-COM
