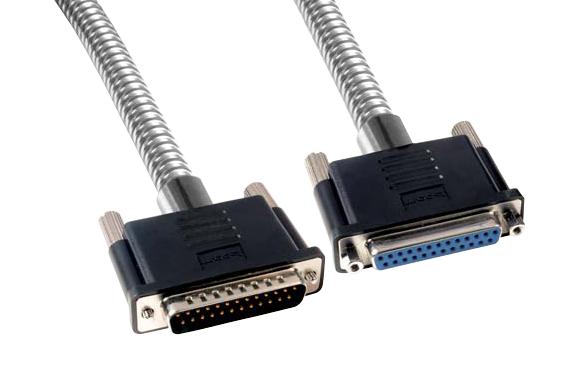

L-COM CSMT25MF15 Shielded D-Sub Cable
L-Com's ready-made armored D-Sub cable assembly features a stainless steel crush-resistant jacket layered over a high-quality braid and foil shield, ensuring enhanced protection against physical damage in demanding environments. The assembly includes a robust steel internal enclosure with a metal coupling nut beneath the backshell mold, providing additional structural strength. It offers a crush resistance rating of 1500 PSI and maximum EMI and RFI shielding via foil and braid layers. Gold-plated contacts ensure reliable, repeated mating cycles, making it ideal for industrial, communications, and electronic applications requiring durable, interference-resistant connectivity.
L-COM CSMT25MF15 Shielded D-Sub Cable Specifications:
- Jacket Material: PVC, Light Gray (Pantone 400C)
- Shielding: Aluminum Foil with Tinned Copper Braid
- Crush Resistance: 1500 PSI
- Connector Type: D-Sub, 25-Pin, Female
- Cable Type: Stranded Tinned Copper, 26 AWG
- Number of Conductors: 25
- Color Coding: Black, Brown, Yellow, Green, Blue, Violet, Gray, White, Pink, Pink/Black, Light Green, Black/White, Brown/White, Red/White, Orange/White, Green/White, Blue/White, Additional wires as per model
- Internal Enclosure: Steel, with Metal Coupling Nut
- Shielding Effectiveness: Max EMI and RFI protection
- Wire Gauge: 26 AWG
- Model Number: CSMT25MF-15
- Length Options: 15.0 feet / 4.57 meters
- Certifications: RoHS, CE
Buy the L-Com CSMT25MF15 – Reliable Shielded D-Sub Cables for Industrial Applications
Order the L-Com shielded D-Sub cable assembly now for high durability and interference resistance. Featuring a stainless steel crush-resistant jacket, gold-plated contacts, and superior EMI/RFI shielding, this cable ensures reliable performance in industrial, communication, and electronic systems. It's designed with a robust internal steel enclosure and multiple length options, including 15 feet, to meet your specific needs. Perfect for demanding environments where durability and interference protection are critical for seamless data transfer and equipment reliability.
Get L-Com CSMT25MF15 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy L-COM CSMT25MF15?
You can click on the BUY or RFQ button to purchase CSMT25MF15 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part CSMT25MF15?
You can download the CSMT25MF15 datasheet or visit the L-COM website for support.
Who is the manufacturer of CSMT25MF15?
L-COM
