L-COM LCCA30157FT15 RF Cable Assembly

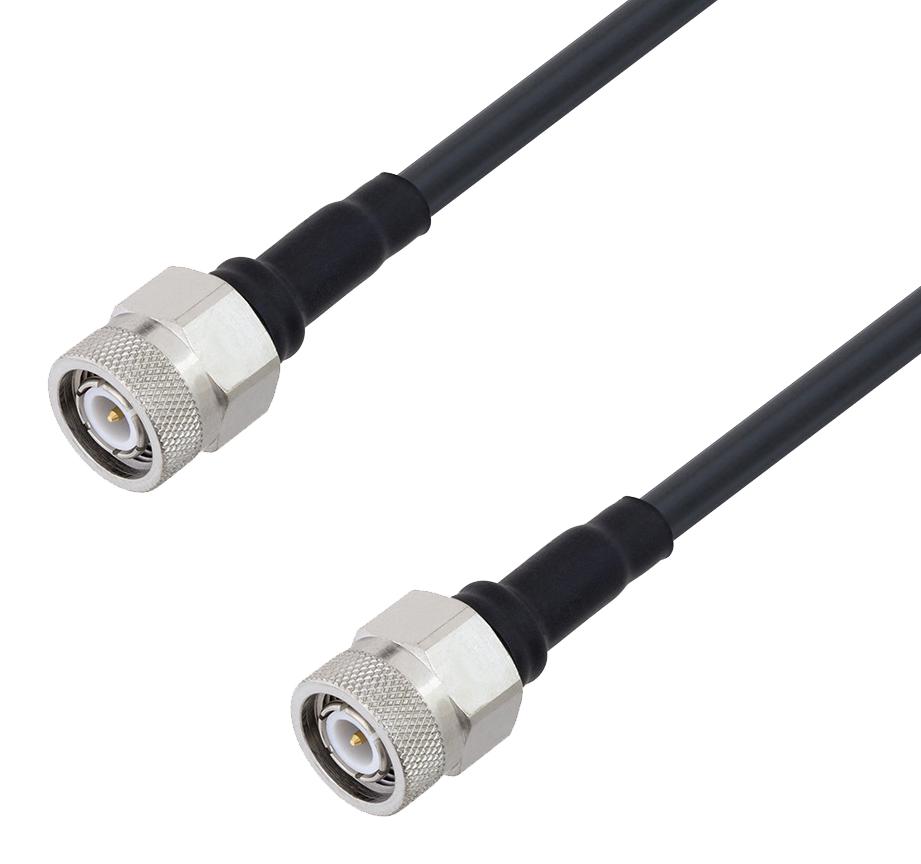

L-com’s LCCA30157-FT1.5 is a low loss TNC male to TNC male cable assembly utilizing LMR-195 coax, 1.5 FT long, featuring Times Microwave components. It employs PE dielectric with 80% VoP, ensuring minimal insertion loss suited for high-frequency applications up to 5.8 GHz. The cable provides effective shielding greater than 90 dB through layered tinned copper braid and aluminum tape, making it ideal for RF applications including cellular, Wi-Fi, antenna installations, and radio systems. The assembly offers excellent flexibility, mechanical robustness, and good electrical performance for various communication needs.
L-COM LCCA30157FT15 RF Cable Assembly Specifications:
- Frequency Range: 5.8 GHz
- Velocity of Propagation: 80%
- RF Shielding: 90 dB
- Group Delay: 1.27 ns/ft
- Capacitance: 25.4 pF/ft
- Inductance: 0.064 uH/ft
- DC Resistance Inner Conductor: 7.6 Ohms/1000ft
- DC Resistance Outer Conductor: 4.9 Ohms/1000ft
- Jacket Material: PE, Black
- Jacket Diameter: 0.195 in
- Connector Type: TNC Male to TNC Male
- Impedance: 50 Ohms
- Cable Length: 1.5 ft
- Outer Conductor Material: Tinned Copper Braid
- Environmental Operating Range: -40°C to +85°C
- Bend Radius: 2 inches
- Shield Layers: 2 (Aluminum Tape and Tinned Copper Braid)
Buy the Cor GLOBAL CONNECTIVITY SOLUTIONS – Reliable RF Cable for Industrial Applications
Purchase the Cor GLOBAL CONNECTIVITY SOLUTIONS RF cable assembly online today. Designed with high-quality LMR-195 coax, this 1.5 ft TNC male to TNC male cable offers low loss, high shielding effectiveness over 90 dB, and operates efficiently up to 5.8 GHz. Perfect for cellular, Wi-Fi, antenna installations, and general RF applications. Its flexible construction and durable materials ensure excellent performance and longevity in demanding environments. Order now for fast shipping and reliable connectivity solutions tailored for industrial and communication systems.
Get Cor GLOBAL CONNECTIVITY SOLUTIONS LCCA30157-FT1.5 today—built for precision and long-lasting durability in RF and communication systems.
Frequently Asked Questions
Where can I buy L-COM LCCA30157FT15?
You can click on the BUY or RFQ button to purchase LCCA30157FT15 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30157FT15?
You can download the LCCA30157FT15 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30157FT15?
L-COM
