L-COM LCCA30009FT15 RF Coaxial Cable

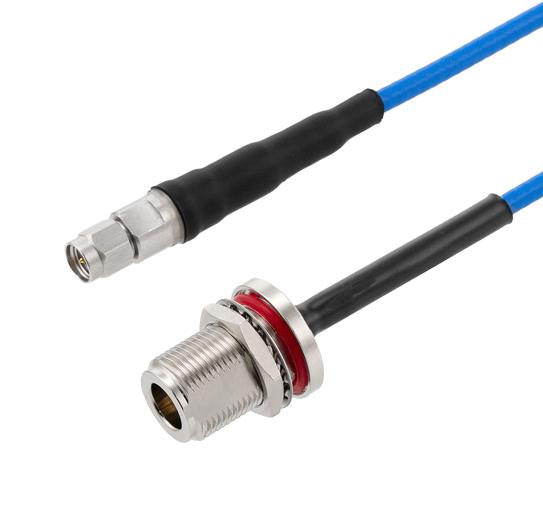

L-com's LCCA30009-FT1.5 is a versatile 1.5 ft coaxial cable assembly with SMA male to N female bulkhead connectors, using 402SS series coax with a heavy-duty boot. Designed for high-frequency applications up to 18 GHz, it features double shielding with silver-plated copper braid over a spiral strip, ensuring excellent shielding effectiveness (>110dB). The rugged stainless steel connectors and FEP jacket deliver durability, flexibility, and reliable performance in laboratory, RF interconnect, and panel-mount environments. Custom configurations and testing services are available for tailored project needs.
L-COM LCCA30009FT15 RF Coaxial Cable Specifications:
- Frequency Range: DC to 18 GHz
- Insertion Loss: Max. 0.519 dB at 18 GHz
- Shielding Effectiveness: > 110dB
- Impedance: 50 Ohms
- Connector Type: SMA Male and N Female Bulkhead
- Connector Material: Brass, Gold-plated SMA; Brass, Nickel-plated N
- Cable Type: 402SS Series coaxial cable with PTFE dielectric
- Cable Diameter: 0.163 inches (4.14 mm)
- Jacket Material: FEP, Tan
- Outer Shield Layer: Silver Plated Copper Tape
- Shield Layer 2: Silver Plated Copper Braid
- Inner Conductor Material: Copper, Silver Plated
- Velocity of Propagation: 70%
- Cable Length: 1.5 feet
- Weight: 0.18 lbs (81.65 g)
- Maximum Operating Voltage: 500 Vrms
- Repeated Minimum Bend Radius: 1 inch (25.4 mm)
- Temperature Range: -55°C to +165°C
- Outer Diameter: 0.315 inches (8 mm)
Buy the L-com LCCA30009-FT1.5 – Reliable RF Coaxial Cabling for Industrial Applications
Purchase the L-com LCCA30009-FT1.5 coaxial cable online today for your high-performance RF interconnect needs. This 1.5 ft cable features SMA male to N female bulkhead connectors, operates up to 18 GHz, and offers superior shielding with double-layered silver-plated copper braid and spiral strip. Its durable stainless steel connectors, heavy-duty boot, and FEP jacket ensure long-lasting flexibility and ruggedness in laboratory, testing, and panel-mount applications. Customize configurations and benefit from same-day shipping for fast project deployment.
Order your L-com SeriesLCCA30009-FT1.5 1.5 ft coaxial cable today and ensure dependable high-frequency connections for your RF and testing projects.
Frequently Asked Questions
Where can I buy L-COM LCCA30009FT15?
You can click on the BUY or RFQ button to purchase LCCA30009FT15 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30009FT15?
You can download the LCCA30009FT15 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30009FT15?
L-COM
