L-COM LCCA30014FT5 RF Cable Assembly

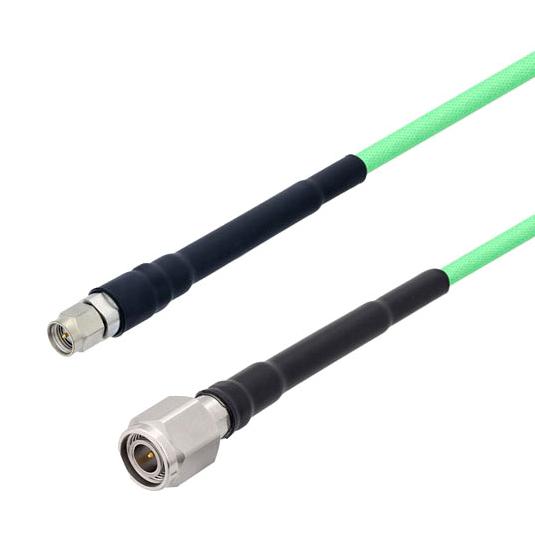

The LCCA30014-FT5 is a flexible low-loss SMA male to TNC male cable assembly, 5 feet long, with a heavy-duty heat shrink boot. Constructed with LL142 coax and tape wrapped PTFE dielectric, it offers excellent shielding over 95dB. Operating up to 18 GHz, it features durable stainless-steel connectors, with triple-layer shielding for optimal performance in automated test systems, laboratory, antenna, and long cable applications. Its low insertion loss and flexible design make it suitable for critical RF interconnect needs requiring high performance and reliability.
L-COM LCCA30014FT5 RF Cable Assembly Specifications:
- Connector Type 1: SMA Male, Connector Type 2: TNC Male
- Length: 5 FT
- Impedance: 50 Ohms
- Frequency Range: DC to 18 GHz
- Insertion Loss: Max 0.54 dB at 18 GHz
- Shielding Effectiveness: > 95dB
- Dielectric: Tape wrapped PTFE with 80% VoP
- Outer Jacket Material: FEP (Green)
- Conductor Material: Copper, Silver Plated
- Shield Layers: Silver Plated Copper Tape and Copper Braid
- Jacket Material: FEP
- Outer Diameter: 0.195 in
- Weight: 0.187 lbs
- Max Bend Radius: 1.35 in
Buy the Cor Series LCCA30014-FT5 RF Cable: 5 FT SMA Male to TNC Male
Purchase the Cor Series RF Cable Assembly with SMA male to TNC male connectors, 5 feet long, featuring heavy-duty heat shrink boot and LL142 coax for excellent performance up to 18 GHz. Ideal for automated test systems, laboratory experiments, antenna range, and long cable runs, it provides superior shielding greater than 95dB, low insertion loss, and flexible construction. Ships same day, offering high durability with stainless steel connectors and a reliable FEP jacket, perfect for demanding RF applications requiring high frequency and low loss characteristics.
Order your Cor Series LCCA30014-FT5 RF cable with heavy-duty boot today and ensure reliable, high-frequency connections for your testing and communication needs.
Frequently Asked Questions
Where can I buy L-COM LCCA30014FT5?
You can click on the BUY or RFQ button to purchase LCCA30014FT5 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30014FT5?
You can download the LCCA30014FT5 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30014FT5?
L-COM
